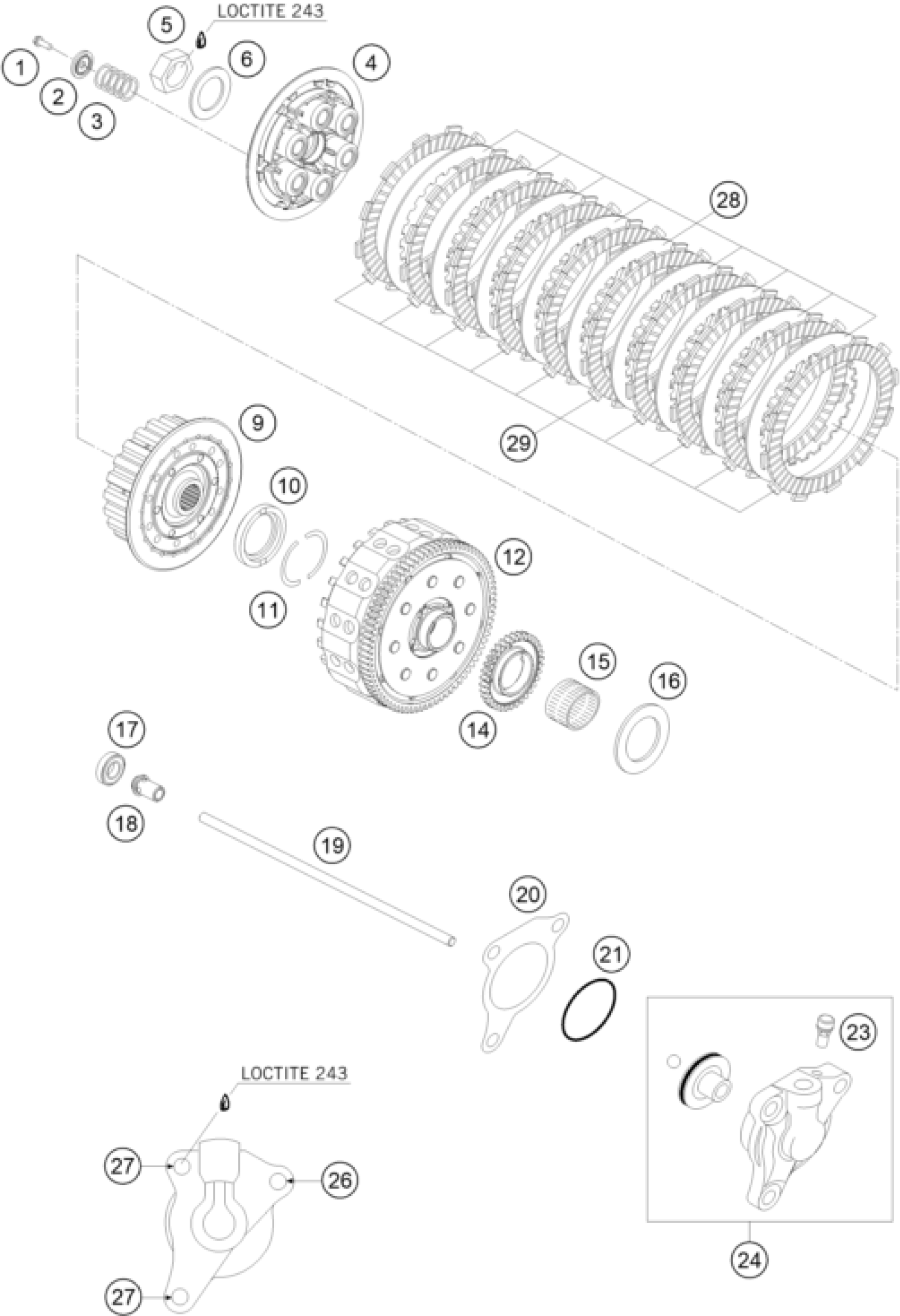

KTM 690 RALLY FACTORY REPLICA <2010> CLUTCH Diagram

#

Description
Price

5

HEXAGON NUT M20X1,5 7MM

60036073050

Unavailable

6

thrust washer 20x32x2

47032020000

Unavailable

9

INNER CLUTCH HUB 07

76232002000

Unavailable

10

STEPPED WASHER 07

75032009000

Unavailable

11

HALF-WASHER 07

75032007000

Unavailable

12

OUTER CLUTCH HUB CPL.

76232001044

Unavailable

14

OIL PUMP DRIVE WHEEL 07

75032050001

Unavailable

15

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

Unavailable

16

WASHER 26X40X2 07

75032017000

Unavailable

17

deep groove ball bearing 6001.

0625060016

Unavailable

18

PRESSURE BOLT 08

75032055100

Unavailable

19

PUSH ROD 08

75032054200

Unavailable

20

GASKET FOR SLAVE CYLINDER

59032065000

Unavailable

21

O-ring 30x1.5 NBR 70

0770300015

Unavailable

23

BLEEDER SCREW WITH CAP

54732064000

Unavailable

24

OUTPUT CYL. WITH BLEEDER SCREW

75032061044

Unavailable

26

HH collar screw M6x35 TX30

0025060356

Unavailable

27

HH collar screw M6x20 TX30

0025060206

Unavailable

28

STEEL DISK 1,5 MM LC4'94

58332112000

Unavailable

29

LINING DISK 2,7MM FCC 02

58332011300

Unavailable

1

AH SCREW DIN6912-M 6X20 8.8

0984060203

Unavailable

2

SPRING RING 07

76232006000

Unavailable

3

CLUTCHSPRING 3,0X33,5

58532080000

Unavailable

4

PRESSURE PLATE 07

76232003000

Unavailable
