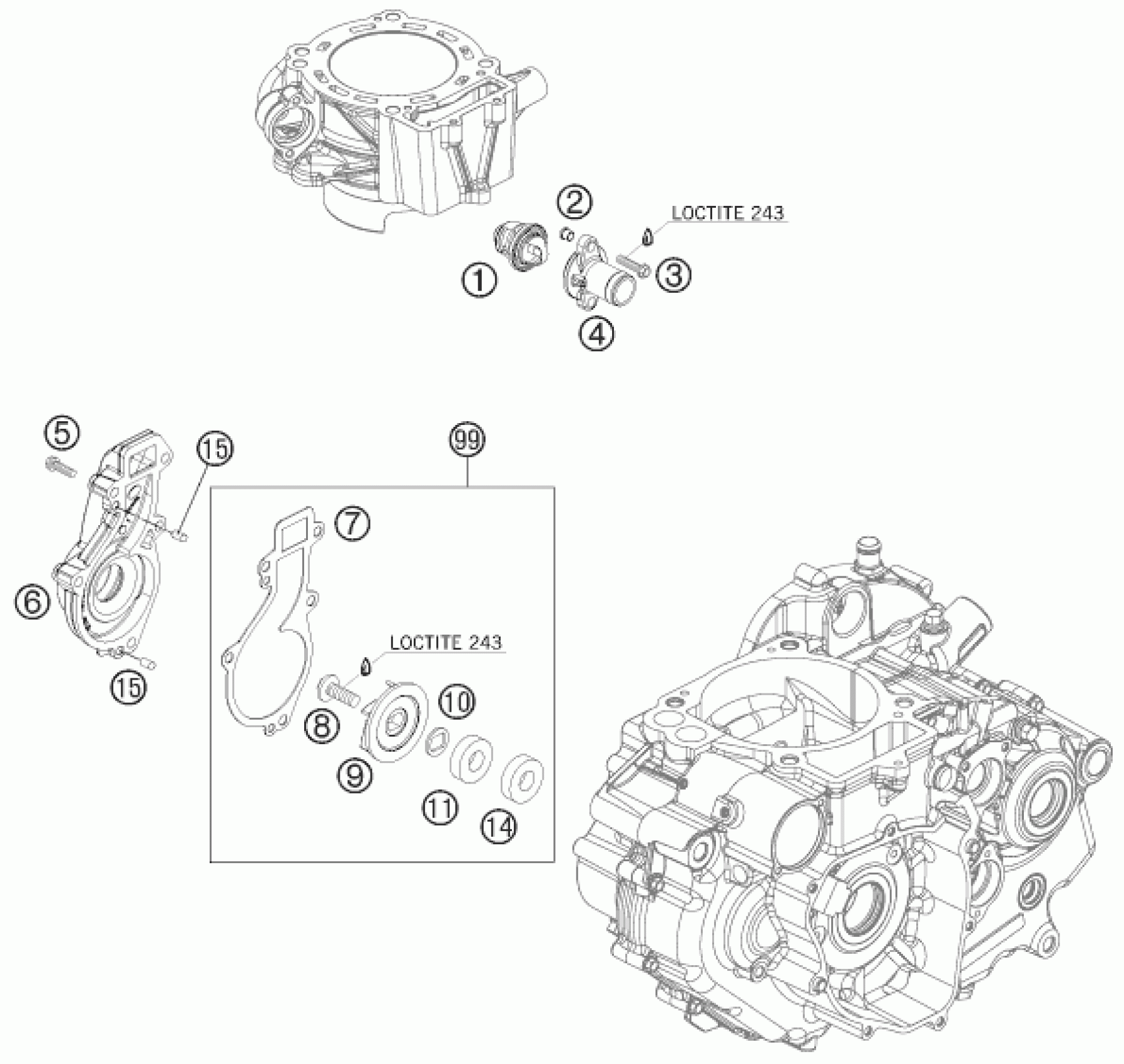

KTM 690 RALLY FACTORY REPLICA 2007 WATER PUMP Diagram

#

Description
Price

1

THERMOSTAT 07

75035017000

Unavailable

2

SUPPORTING SLEEVE 03

60040027050

Unavailable

3

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

4

THERMOSTATCOVER 07

75035016000

Unavailable

5

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

6

WATERPUMP COVER 07

75035052100

Unavailable

7

WATER PUMP COVER GASKET 07

75035053000

Unavailable

8

HH COLLAR SCREW M 6X13 WS=8

0014060133

Unavailable

9

WATER PUMP ROTOR 07

75035055000

Unavailable

10

double-d washer 16x1 SST

60035055150

Unavailable

11

SHAFT SEAL RING. 12X30X7 VITON

0760123071

Unavailable

14

SHAFT SEAL RING 12X30X7 PTFE

0760123073

Unavailable

15

GROOVED PIN DIN1474 5X8

0474050080

Unavailable

99

WATER PUMP REP. KIT 690

75035055010

Unavailable
