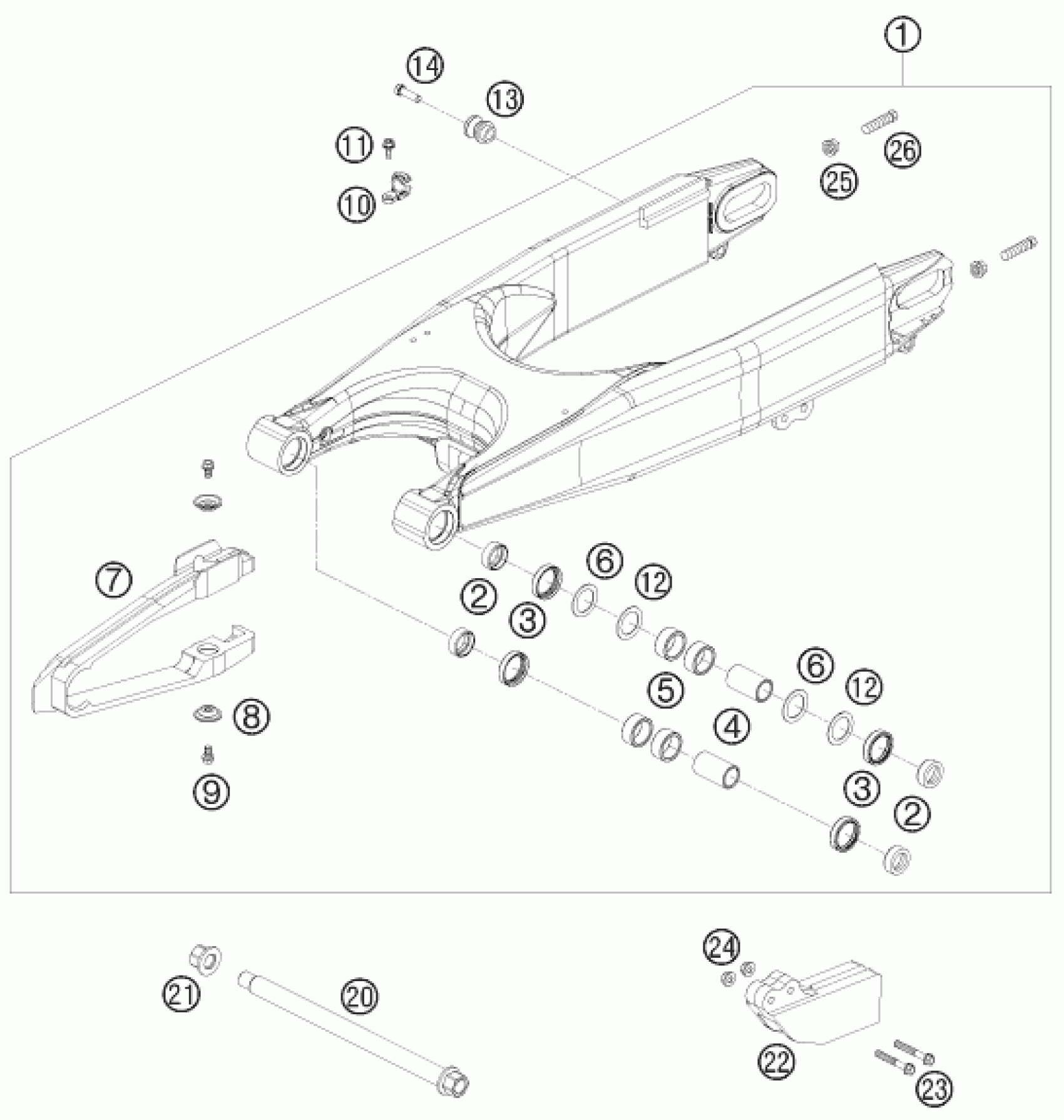

KTM 690 RALLY FACTORY REPLICA 2007 SWING ARM Diagram

#

Description
Price

1

SWINGARM RALLY CPL. 07

76204030044

Unavailable

2

SPACER F. SHAFT SEALRING 07

76204034000

Unavailable

3

radial shaft seal 25x32x7

0760253270

Unavailable

4

Bearing sleeve 17x22x38.7 03

59404032000

Unavailable

5

NEEDLE BEARING HK2212V

59004031100

Unavailable

6

STOP DISK 22,2X31,7X1

54603036000

Unavailable

7

CHAIN GUARD 05

50304066100

Unavailable

8

BUCKET

72210079000

Unavailable

9

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

20

SWINGARM BOLT CPL. 07

76204037044

Unavailable

21

Self locking nut M14x1.5 WS19

54603015000

Unavailable

22

CHAIN GUIDE REAR '94

54607066100

Unavailable

23

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

24

Self locking nut M6 - 10

56509064100

Unavailable

12

STOP DISK 22,2X31,7X0,5

76203037000

Unavailable

10

RETAIN.CLAMP FOR BRAKE HOSE'96

54611076100

Unavailable

11

SPECIAL SCREW M 5,0X10

0010050103

Unavailable

25

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

26

screw M10x1.25x50 WS10

50304040100

Unavailable

13

SUPPORT F. LIFTING DEVICE

R0610089000

Unavailable

14

AH SCREW DIN6912-M10X35 10.9

0912100356

Unavailable
