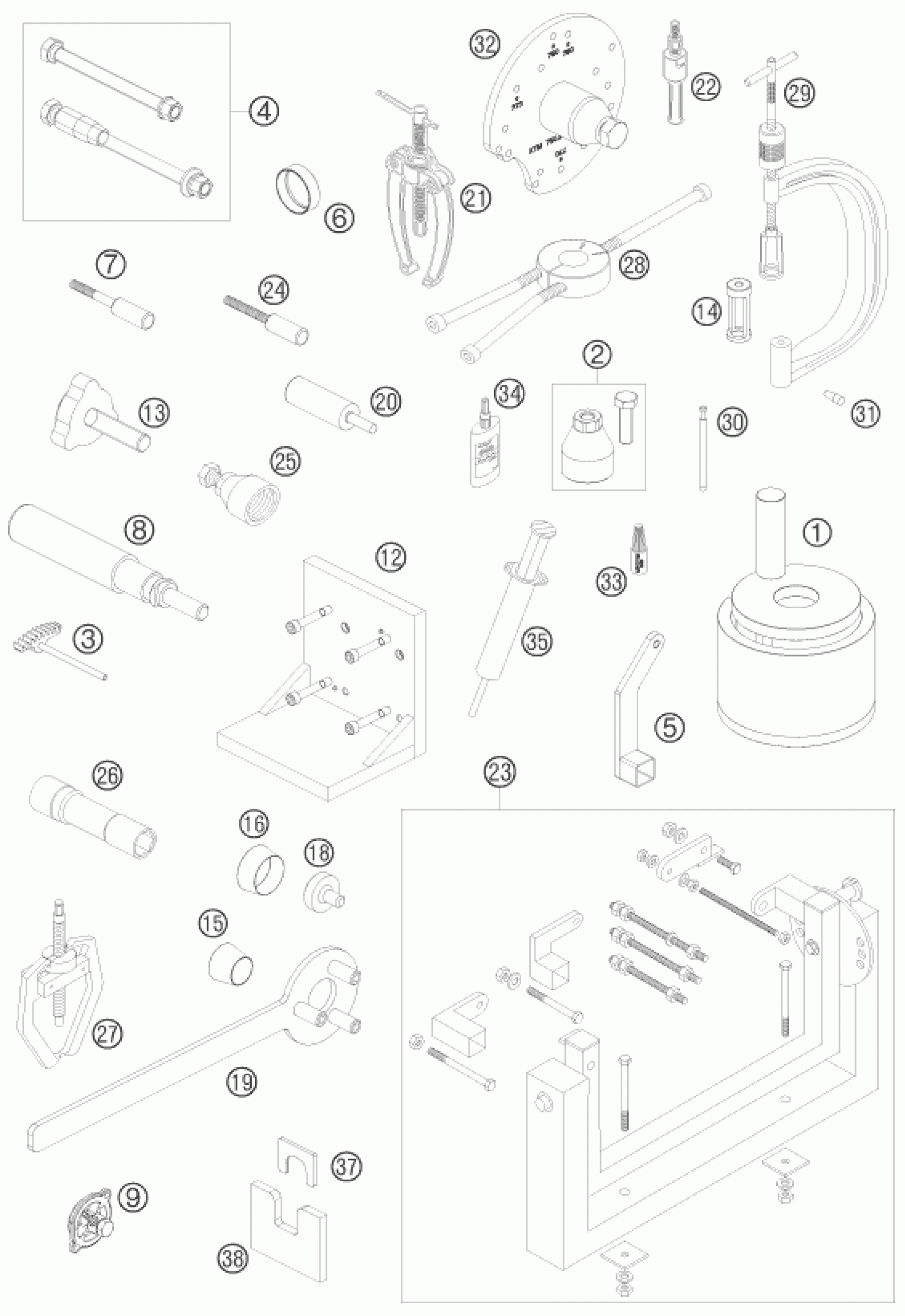

KTM 690 RALLY FACTORY REPLICA 2007 Special tools (engine) Diagram

#

Description
Price

12

ON TENSIONER PL. CYLINDER HEAD

75029050000

Unavailable

13

PRESS OUT PUNCH CPL.

75029051000

Unavailable

14

INSERT FOR VALVE SPRING LEVER

77329060000

Unavailable

15

MOUNT.SLEEVE F. SH.S.RING MS

75029080000

Unavailable

16

MOUNT.SLEEVE F. SH.S.RING KS

75029080050

Unavailable

18

PROTECTOR CAP F.CRANKSHAFT 07

75029090000

Unavailable

19

HOLDING SPANNER FOR FLYWHEEL

75029091000

Unavailable

20

UNLOCK CHAIN TENSIONER

77329051000

Unavailable

21

BUSHING EXTRACTOR

15112017000

Unavailable

22

INTERN.BEAR.PULLER 18-23 MM

15112018100

Unavailable

23

ASSY SUPPORT (WITHOUT HOLDER)

56012001000

Unavailable

24

LOCATING SCREW

77329010000

Unavailable

25

MAGNETO EXTRACTOR

58429009000

Unavailable

26

SPARK PLUG WRENCH

75029172000

Unavailable

27

EXTRACTOR FOR TIMING GEAR

59029033000

Unavailable

28

MOUNTING TOOL F.BEARING NJ 207

58429037043

Unavailable

29

VALVE SPRING LEVER

59029019000

Unavailable

30

LIMIT PLUG GAUGE F.VALVE GUIDE

59029026006

Unavailable

31

MOUNT.SLEEVE F. SH.S.RING WAPU

58529005000

Unavailable

32

CASING DISMOUNTING TOOL 07

75029048000

Unavailable

33

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

34

LOCTITE 648 GREEN 10ML

58429059000

Unavailable

35

LOCTITE 5910 50ML

58429059200

Unavailable

37

PRESS OUT PLATE TOP PART

75029047050

Unavailable

38

PRESS OUT PLATE BOTTOM PART

75029047051

Unavailable

1

PRESS. TOOL F. CRANKS. CPL.

75029047000

Unavailable

2

EXTRACTOR PRIM. CPL.

75029021000

Unavailable

3

GEAR SEGMENT CPL.

75029081000

Unavailable

4

SUPPORT CPL.

75012001060

Unavailable

5

RETAIN. ARM F. ENG.WORK STAND

75012001070

Unavailable

6

PISTON R. COMPRESSOR DM=102

75029015102

Unavailable

7

MOUNTING SCREWS

75029033000

Unavailable

8

PLUG IN FUSE PISTON PIN

75029035000

Unavailable

9

OIL PRESSURE ADAPTER

75029094000

Unavailable
