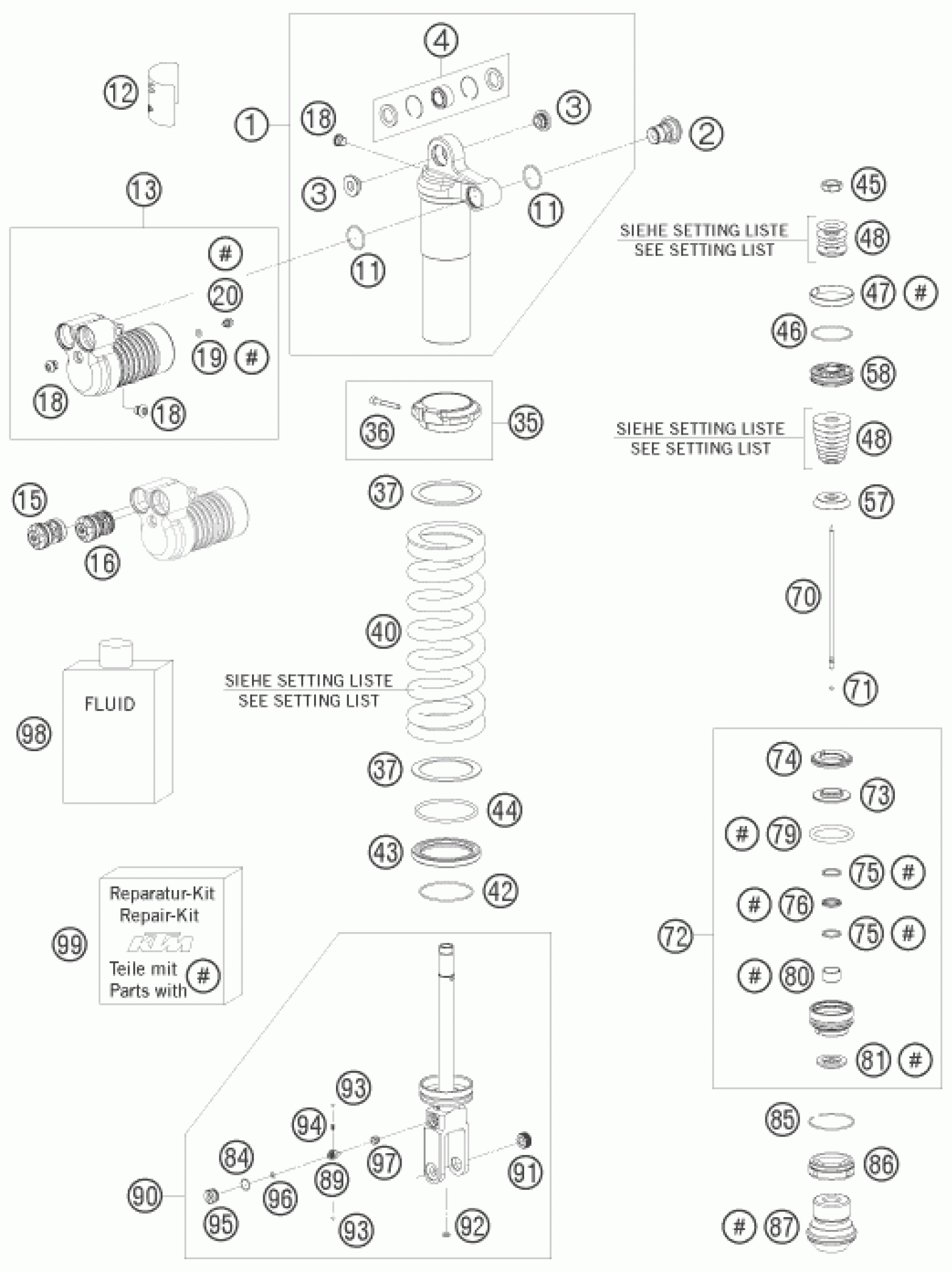

KTM 690 RALLY FACTORY REPLICA 2007 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

MONOSHOCK CASE TOP

50180612S1

Unavailable

2

BOLT M20X1 05

46180413

Unavailable

3

Distance bush 10x15/18/24,5x10

46180010

Unavailable

4

Ball joint bearing kit top 12m

R12012

Unavailable

11

O-ring 25x2 NBR70

46180425

Unavailable

13

EXPANSION TANK CPL. 07

50180611S

Unavailable

15

DCC LOW-SPEED SXS CONTROL

50180590S

Unavailable

16

DCC HIGH-SPEED NR2 CONTROL

50180586S2

Unavailable

18

PLUG ALU M10X1 CPL.

40140014S

Unavailable

43

Spring retainer 61.5x79.1x7.5

50180607S

Unavailable

44

O-ring 66,27x1,78 Viton70

50180352

Unavailable

45

Piston rod nut 16x1

50180141

Unavailable

46

O-ring 44x,17x1,78 Viton70

50180099

Unavailable

47

Piston ring 47,95x49,95x8

50180135

Unavailable

48

SHIM 16X36X0,25

50180067

Unavailable

48

Shim 16x34x0,2 y5

50180057

Unavailable

48

Shim 16x32x0,2

50180056

Unavailable

35

SPRING RET. (SCREW) M56X1 ANO.

50180582S

Unavailable

36

HS cylinder-head screw M5x30

50180327

Unavailable

37

INTERMEDIATE RING 50X1,5

50180226

Unavailable

48

SHIM 16X28X0,25

50180063

Unavailable

48

SHIM 16X26X0,30

50180040

Unavailable

40

SPRING 62 92-250 d13 TITANLOOK

91210043

Unavailable

48

SHIM 16X25X0,30

50180039

Unavailable

48

SHIM 16X24X0,30

50180038

Unavailable

48

SHIM 16X23X0,30

50180037

Unavailable

42

Round-wire snap ring 58,5x2

50180273

Unavailable

48

SHIM 16X30X0,30

50180073

Unavailable

48

SHIM 16X32X0,30

50180074

Unavailable

57

Rebound disc 16x43x8 h5

50180421

Unavailable

48

SHIM 16X34X0,30

50180075

Unavailable

48

SHIM 16X36X0,30

50180076

Unavailable

48

SHIM 16X38X0,30

50180077

Unavailable

48

SHIM 16X40X0,30

50180078

Unavailable

48

SHIM 16X42X0,25

50180070

Unavailable

48

SHIM 16X28X0,30

50180072

Unavailable

70

NEEDLE L=171

50180513

Unavailable

71

O-ring 2,2x1,6 Viton75 green

46811265

Unavailable

72

ADAPTOR D50 H29 CPL.

50180435S1

Unavailable

73

Washer 18,5x43,7x6

50180113

Unavailable

74

Rubber pad rebound 27x48x8 NBR

50180107

Unavailable

75

Washer 18x22,5x1,5 plastic

50180102

Unavailable

76

SEAL RING QUAD 17.12X2.62 80SH

50180593

Unavailable

79

O-ring 41x5 NBR70

50180103

Unavailable

80

Guide bushing 18x20x12

46180119

Unavailable

81

Dirt scarper 18mm

50180082

Unavailable

84

O-ring 12x1 NBR70

46180013

Unavailable

85

Round-wire snap ring 53x1,75

50180126

Unavailable

86

RESERVOIR CAP D=50 SXS 07

50180580

Unavailable

87

Rubber pad 17x58x59

50180480

Unavailable

89

Adjustment screw slot rebound

46180006

Unavailable

90

FORK PART W/ SPINDLE CPL. 07

50180503S1

Unavailable

91

Threaded bush M10x1,5 h7,5

50180462

Unavailable

92

Rubber plug 8x3,5 NBR50

50180297

Unavailable

93

Steel ball d3

40540603

Unavailable

94

Spring (1,7) l7,9

48600028

Unavailable

95

Screw cap M16x1

46180005

Unavailable

96

O-ring 4x1,5 NBR70

50180222

Unavailable

97

Adjustment screw slot rebound

46180016

Unavailable

19

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

20

HS lock screw M5x6

36120151

Unavailable

58

Piston 16,05x49,6x13,5 4,5/7

50180197

Unavailable

98

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

Unavailable

12

WP CAUTION (PDS KTM) 58X83

52000041

Unavailable

99

REPAIR KIT SXS + 690 RALLY 07

R12016

Unavailable

40

SPRING 88N/MM L250 TITANLOOK

91210042

Unavailable

40

SPRING 97N/MM L250 TITANLOOK

91210044

Unavailable
