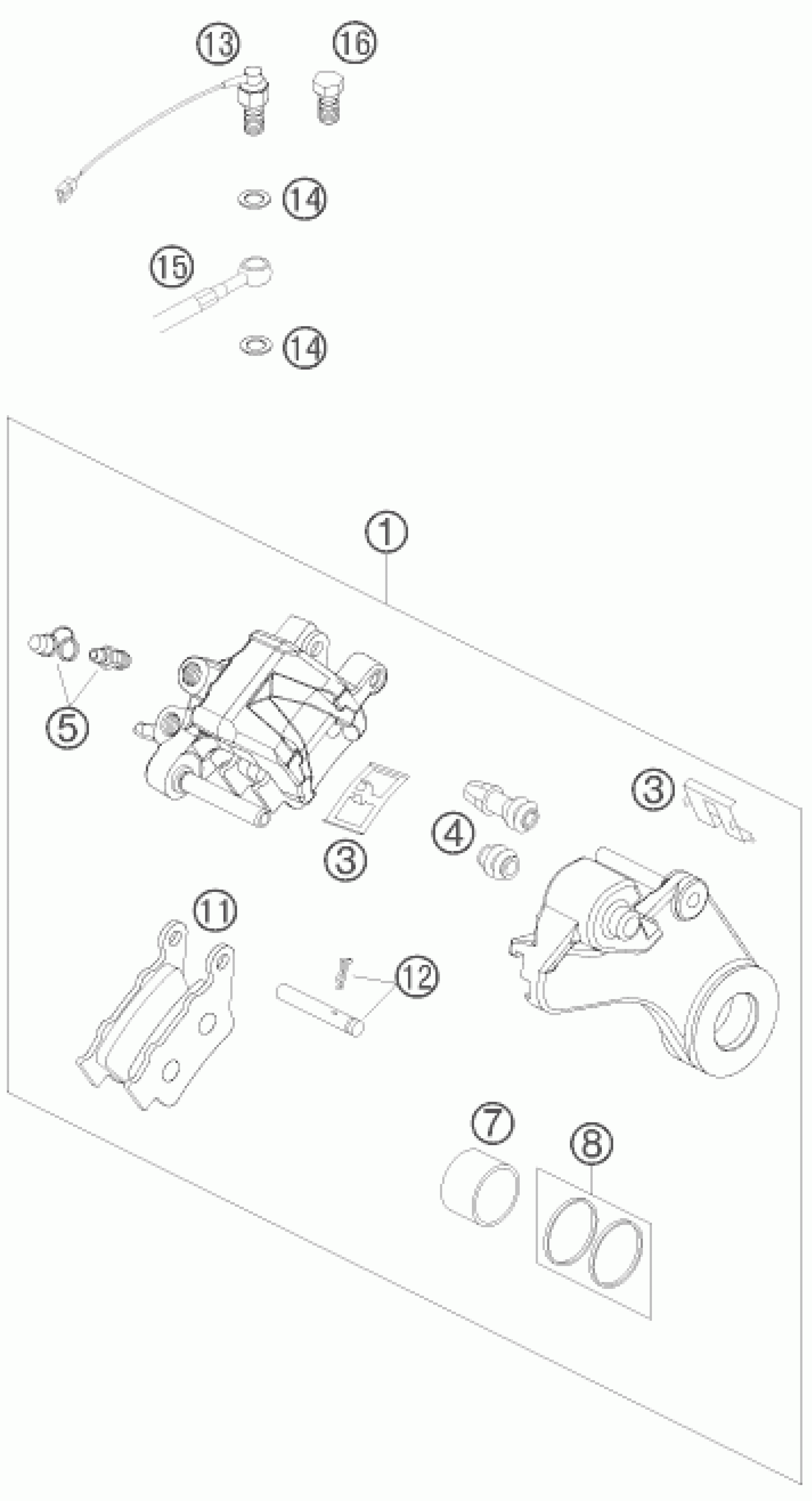

KTM 690 RALLY FACTORY REPLICA 2007 REAR BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CALIPER REAR

76213080000

Unavailable

3

RETAINING SPRING SET

54613311200

Unavailable

4

CUP SET SHORT

54613218000

Unavailable

5

BLEEDER SCREW WITH CAP

61013020200

Unavailable

16

HOLLOW SCREW M10X1X19

50213025000

Unavailable

7

BRAKE PISTON 32MM

50313083000

Unavailable

11

BRAKE PAD SET FERIT ID450FF

54613309200

Unavailable

12

BOLT SET 05

61013082000

Unavailable

13

BRAKE LIGHT SWITCH REAR 03

58511051000

Unavailable

14

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

15

BRAKE HOSE REAR

76213070000

Unavailable

8

REPAIR KIT SEALING RINGS 32MM

50313081000

Unavailable
