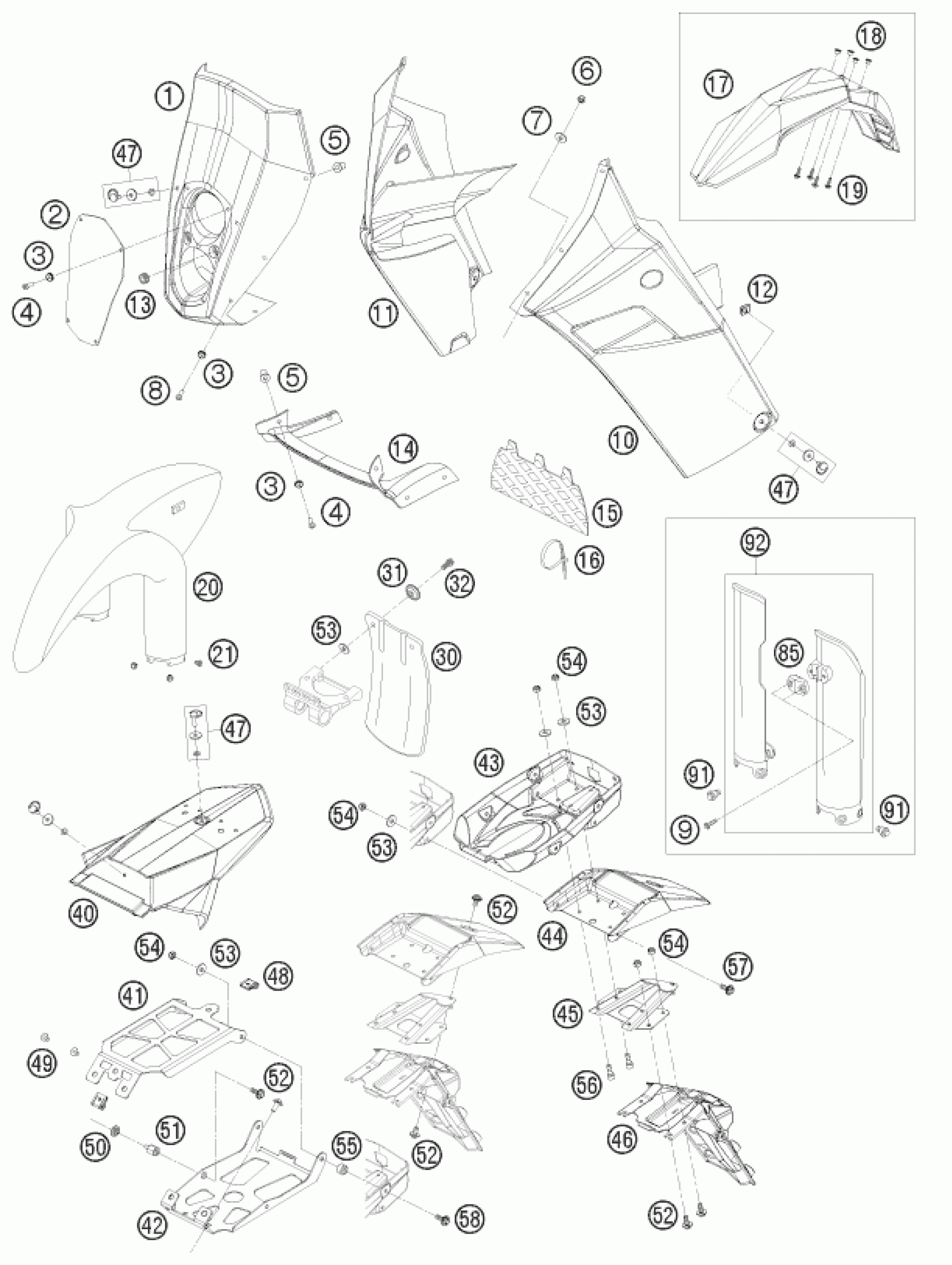

KTM 690 RALLY FACTORY REPLICA 2007 MASK, FENDERS Diagram

#

Description
Price

15

OIL RADIATOR GRID

76211004030

Unavailable

50

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

Unavailable

51

FIXING SCREW REAR SUB FRAME

76208018010

Unavailable

16

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

20

FENDER FRONT BLACK

5850801020030

Unavailable

21

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

40

REAR FENDER 07

76208014000

Unavailable

41

SUPPORT F. EMERGENCY SENDER 07

76208017000

Unavailable

42

S. PLATE F. EMERGEN. SENDER 07

76208017005

Unavailable

43

REAR END LOWER PART 07

76208019000

Unavailable

44

NUMBER PLATE SUPPORT 07

76208015000

Unavailable

45

SPACER NUMBER PLATE SUPP. 07

76208016000

Unavailable

46

NUMBER PLATE CARRIER 05

58608015000

Unavailable

47

Quick lock

45007040051

Unavailable

48

Clip

45007040052

Unavailable

49

FLAT HEAD SCREW DIN7991 M6X10

0991060103

Unavailable

1

HEADLIGHT MASK 07

76211004000

Unavailable

2

HEADLIGHT PANE FRONT MASK

76214010020

Unavailable

3

SPECIAL WASHER D=12MM 03

60008046000

Unavailable

4

O.H.SCREW DIN0966-M 5X20 BLACK

0966050208

Unavailable

5

blind plug nut M5 WN16A

60008008050

Unavailable

10

FRONT MASK L/S 07

76211003000

Unavailable

11

FRONT MASK R/S 07

76211002000

Unavailable

14

AIR BAFFLE

76211004020

Unavailable

54

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

55

SPACER F. SUPPORT P. E. SENDER

76208018020

Unavailable

56

AH SCREW DIN0912-M 6X16

0912060163

Unavailable

30

SPLASH PROTECT.FOR FILTER BOX

54606010000

Unavailable

31

BUCKET

72210079000

Unavailable

32

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

6

Self locking nut DIN 985 M5

0985050003

Unavailable

7

washer DIN 9021 A - 5.3

0021050003

Unavailable

57

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

58

HH COLLAR SCREW M 6X25 WS=8

0014060253

Unavailable

9

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

17

FENDER FRONT ORANGE 06

6300801000004

Unavailable

18

COLLAR BUSHING

50213161000

Unavailable

19

HH COLLAR SCREW M 6X20 WS=8

0014060203

Unavailable

85

CLAMP F.SPEED.CABLE D=6MM 2001

59001085100

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

FORK PROTECT L/S+R/S BLACK 02

5900109400030

Unavailable

52

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

53

Washer DIN9021-A 6.4

0021060003

Unavailable

12

Clip

45007040052

Unavailable

13

rubber grommet D=8mm open

31008060000

Unavailable

8

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable
