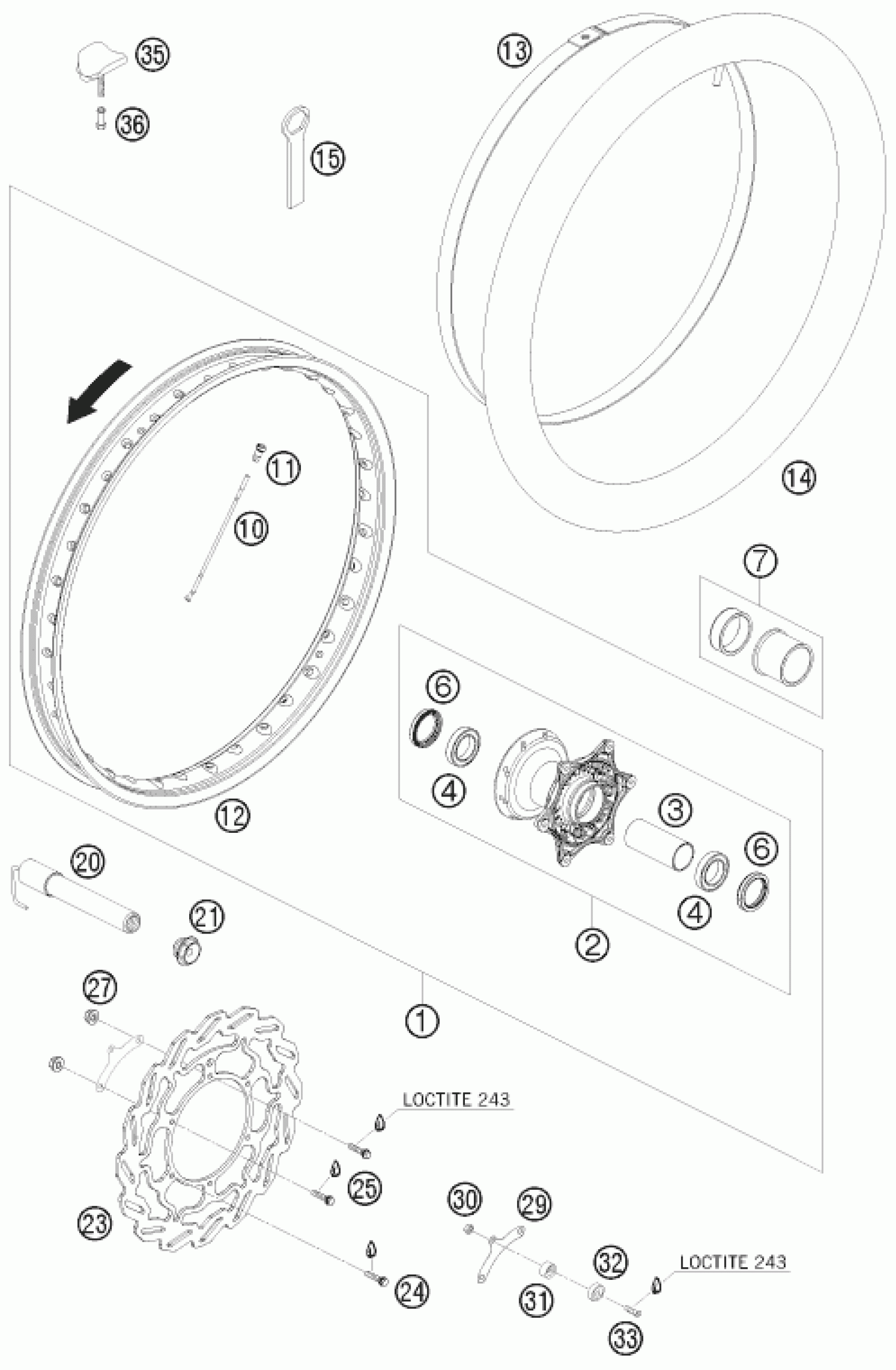

KTM 690 RALLY FACTORY REPLICA 2007 FRONT WHEEL Diagram

#

Description
Price

10

SPOKE M4,5X226-21'' 08

78009074226

Unavailable

35

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

36

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

1

FRONT WHEEL CPL.1,6X21EXL

7730900104430

Unavailable

2

FRONT WHEEL HUB CPL. 08

78009010044

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072100

Unavailable

12

FRONTRIM 1,60X21''EXCELAL4 BLK

5460907010030

Unavailable

13

Tube protector 21"

50309073000

Unavailable

15

RING WRENCH 32MM

76212060032

Unavailable

20

FRONT AXLE D=30MM 04

58509081100

Unavailable

27

Self locking nut M6 - 10

56509064100

Unavailable

7

SPACER BUSHING FRO. WHEEL 30MM

76209013044

Unavailable

14

Hose 21"

50309075000

Unavailable

23

BRAKE DISC FRONT 07

58509060000

Unavailable

21

COLLAR SCREW FRONT AXLE WS32

76209082000

Unavailable

24

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

25

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

29

BRACKET SENSOR MAGNET ADV. '97

58214050050

Unavailable

32

MAGNET LOOSE '97

58314069050

Unavailable

31

BRAKE LEVER STOP '93

58303063000

Unavailable

30

SELF LOCKING NUT DIN0985-M 4

0985040003

Unavailable

33

OVAL HEAD SCREW DIN966 M4X20

0966040203

Unavailable
