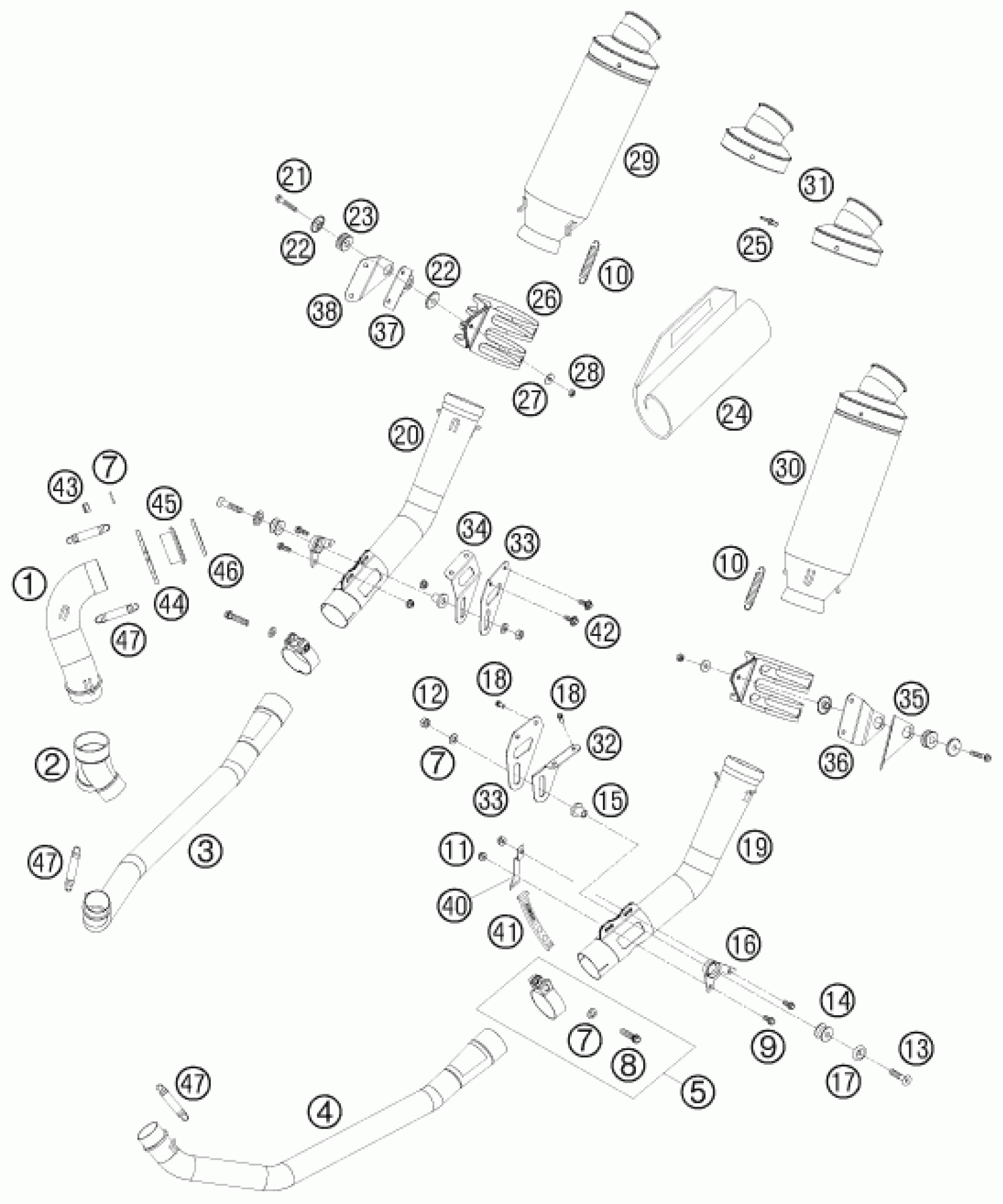

KTM 690 RALLY FACTORY REPLICA 2007 EXHAUST SYSTEM Diagram

#

Description
Price

1

CONNECTING MANIFOLD CPL. 07

76205007000

Unavailable

2

Y-PIPE

76205012010

Unavailable

3

EXHAUST MANIFOLD 1 RI. CPL 07

76205008000

Unavailable

4

EXHAUST MANIFOLD 1 LE. CPL. 07

76205009000

Unavailable

5

EXHAUST CLAMP RALLYE 02

58505058000

Unavailable

14

damp. component silicone grey

54305068100

Unavailable

32

EXHAUST FIXING PLATE REAR 3 07

76205052006

Unavailable

33

EXHAUST FIXING PLATE REAR 4 07

76205052007

Unavailable

34

EXHAUST FIXING PLATE REAR 5 07

76205052008

Unavailable

13

FLAT HEAD SCREW DIN7991-M 8X40

0991080403

Unavailable

35

EXHAUST FIXING PLATE REAR 2 07

76205052005

Unavailable

36

EXHAUST FIXING PLATE REAR 1 07

76205052004

Unavailable

37

EXHAUST FIXING PLATE REAR 7 07

76205052010

Unavailable

38

EXHAUST FIXING PLATE REAR 6 07

76205052009

Unavailable

18

HH COLLAR SCREW M 5X10 WS=8

0015050103

Unavailable

25

DUMMY RIVET 5,0X12 STEEL

0011501201

Unavailable

17

SPECIAL WASHER ALU 8X24 MM ELO

58303061100

Unavailable

19

EXHAUST PIPE CPL. LEFT 07

76205011000

Unavailable

20

EXHAUST PIPE CPL. RIGHT 07

76205010000

Unavailable

21

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

22

BUSHING 7,5X12X28X7,8 '96

54605069000

Unavailable

23

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

26

CLAMP FOR SILENCER 03

58505161200

Unavailable

27

WASHER 6,2X18X2

50232050000

Unavailable

28

Hex. nut DIN 934 M6

0934060003

Unavailable

29

SILENCER R/S THROTTLED

76205171000

Unavailable

30

SILENCER L/S THROTTLED

76205071000

Unavailable

31

END CAP SILENCER OPEN

76205071050

Unavailable

24

STUFF.YARN 550GRAM L=550MM SX

59005078550

Unavailable

40

SIDE STAND RUBBER-RET. PLATE

76203023070

Unavailable

41

RUBBER BAND

54611186000

Unavailable

42

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

43

self-locking nut M8 Cu

51010086100

Unavailable

44

UNION FLANGE

76205007052

Unavailable

45

EXHAUST FLANGE

76205007051

Unavailable

46

Exhaust gasket 05

61005005000

Unavailable

47

EXHAUST-SPRING WITH RUBBER 02

57305016000

Unavailable

7

washer DIN 125 A -8.4

0125080003

Unavailable

8

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

9

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

10

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

11

Self locking nut M6 - 10

56509064100

Unavailable

12

Hexagon nut DIN934 M8

0934080003

Unavailable

15

SLEEVE EX. PIPE-BOT. FIX. STR.

76205053000

Unavailable

16

EXHAUST SUPP. CENTER RALLY 02

5850506700090

Unavailable
