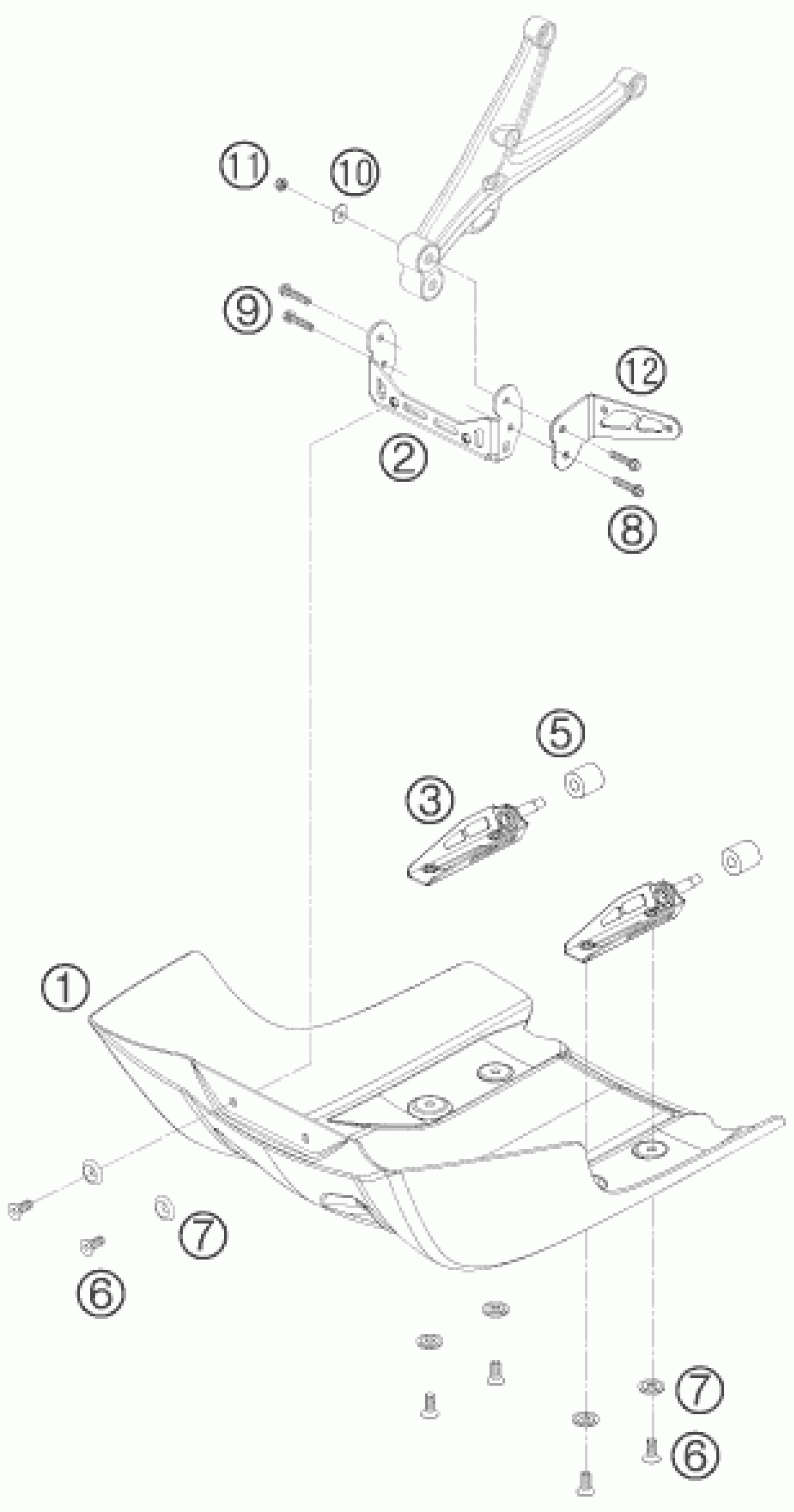

KTM 690 RALLY FACTORY REPLICA 2007 ENGINE GUARD Diagram

#

Description

Price

2

ENGINE GUARD BRACKET CPL.

76212099024

Unavailable

1

ENGINE GUARD

76212099040

Unavailable

3

ENGINE GUARD BRACKET REAR CPL.

76212099010

Unavailable

5

RUBBER INSERT

76203005031

Unavailable

6

SPROCKET SCREW-AH M8X20 WS=6

54610052000

Unavailable

7

SPECIAL WASHER ALU 8 X 24 MM

58303061000

Unavailable

9

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

10

Washer DIN9021-A 6.4

0021060003

Unavailable

11

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

8

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

12

FIXING PLATE VOLT. REGULATOR

76203001074

Unavailable
