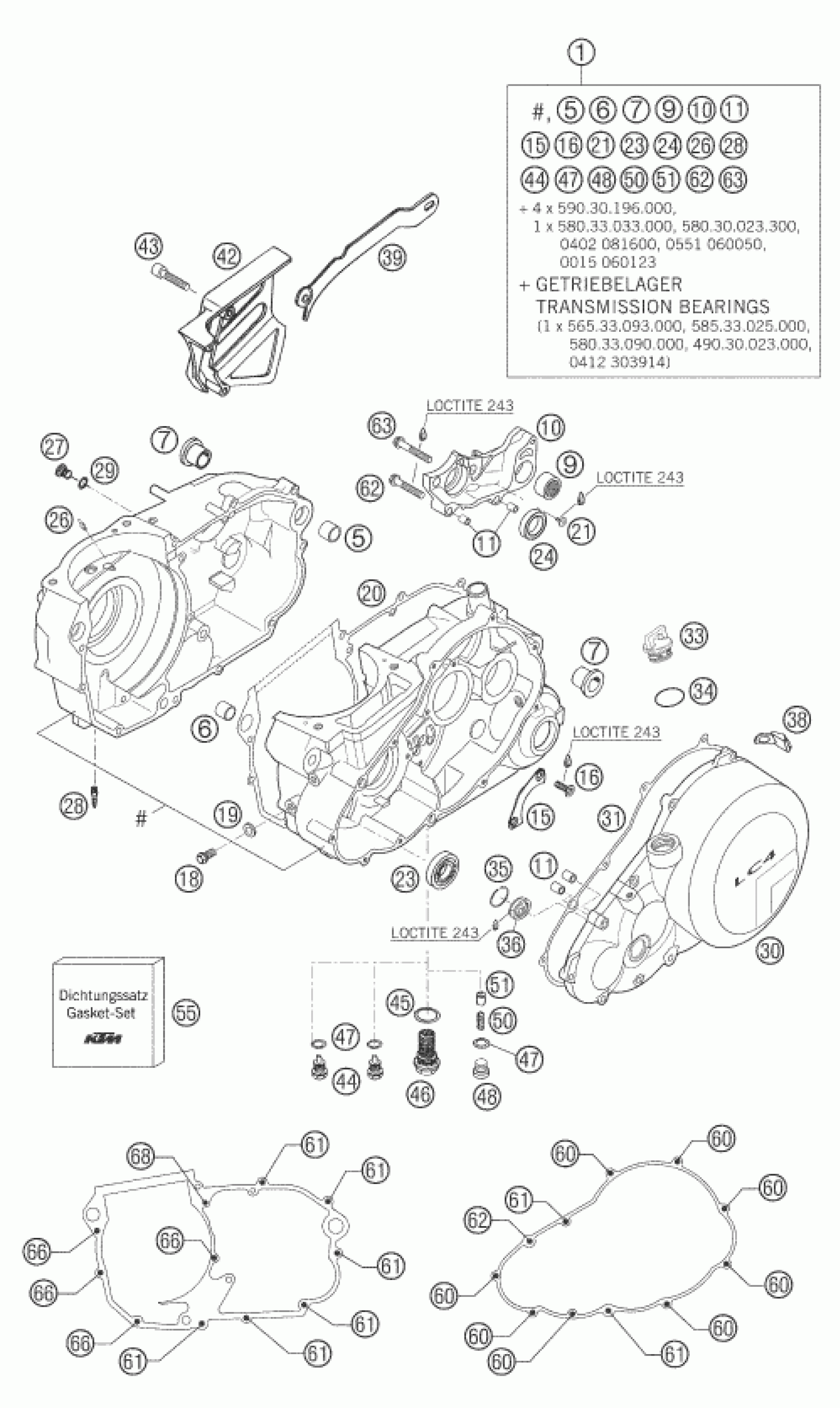

KTM 660 SMC 2005 ENGINE CASE Diagram

#

Description
Price

1

ENGINE CASE CPL.W.TRAN.BEAR.03

5733000004423

Unavailable

5

DOWEL 19 X15,1X12

50130027000

Unavailable

6

DOWEL 17 X 13 X 12

51030026100

Unavailable

7

CRANK CASE BUSH

50130010000

Unavailable

9

NEEDLE BEARING HK 2216

58033097000

Unavailable

10

SHIFT MECHANISM SUPPORT LC4'94

58330011000

Unavailable

11

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

15

RETAINING PLATE

56530017000

Unavailable

16

FL.HEAD SCR.DIN7991-M6X16

0991060166

Unavailable

18

HH COLLAR SCREW M 8X16 WS=10

0015080163

Unavailable

19

SEAL RING CU DIN7603- 8X12X1

0603082121

Unavailable

20

ENGI.CASE GASKET POLY. 0,43

58530039300

Unavailable

21

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

Unavailable

23

CYLIND.ROLL.NJ 203 ECP/C3 2001

0412174012

Unavailable

24

BALL BEARING 61805 C3

0625618050

Unavailable

26

OIL JET 70 M6X0,75 WS8 03

60030064070

Unavailable

27

OIL DRAIN PLUG M10X1,5 AH-WS=6

49030029000

Unavailable

28

TUBE LW 3

49130450050

Unavailable

29

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

30

CLUTCH COVER CPL. GREY 03

5833010124423

Unavailable

31

CLUTCH COVER GASKET 2001

58530025000

Unavailable

33

oil plug cpl. M24x3

58030020100

Unavailable

34

O-RING 19,00X3,00 NBR

0770191015

Unavailable

35

CIRCLIP OIL LEVEL GLASS 03

61030019050

Unavailable

36

OIL LEVEL GLASS G 1777 Y

59030019000

Unavailable

38

BUMP RUBBER

58333041000

Unavailable

39

CHAIN DAMPER SHEET 05

58630047100

Unavailable

42

CHAIN COVER BLACK '99

58030050700

Unavailable

43

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

44

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

Unavailable

45

CU-SEAL RING DIN7603-22X27X2

58038017100

Unavailable

46

OIL DRAIN PLUG M22X1,5

58038019100

Unavailable

47

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

48

threaded plug DIN 908 M12x1.5

0908120153

Unavailable

50

OIL PRES.SPRING 5 BAR RED 2001

58538023000

Unavailable

51

VALVE PISTON D=10MM

58038028000

Unavailable

55

GASKET SET LC4 2003

58430099200

Unavailable

60

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

61

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

62

HH COLLAR SCREW M 6X35 WS=8

0015060353

Unavailable

63

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

66

HH COLLAR SCREW M 6X55 WS=8

0015060553

Unavailable

68

HH COLLAR SCREW M 6X65 WS=8

0015060653

Unavailable
