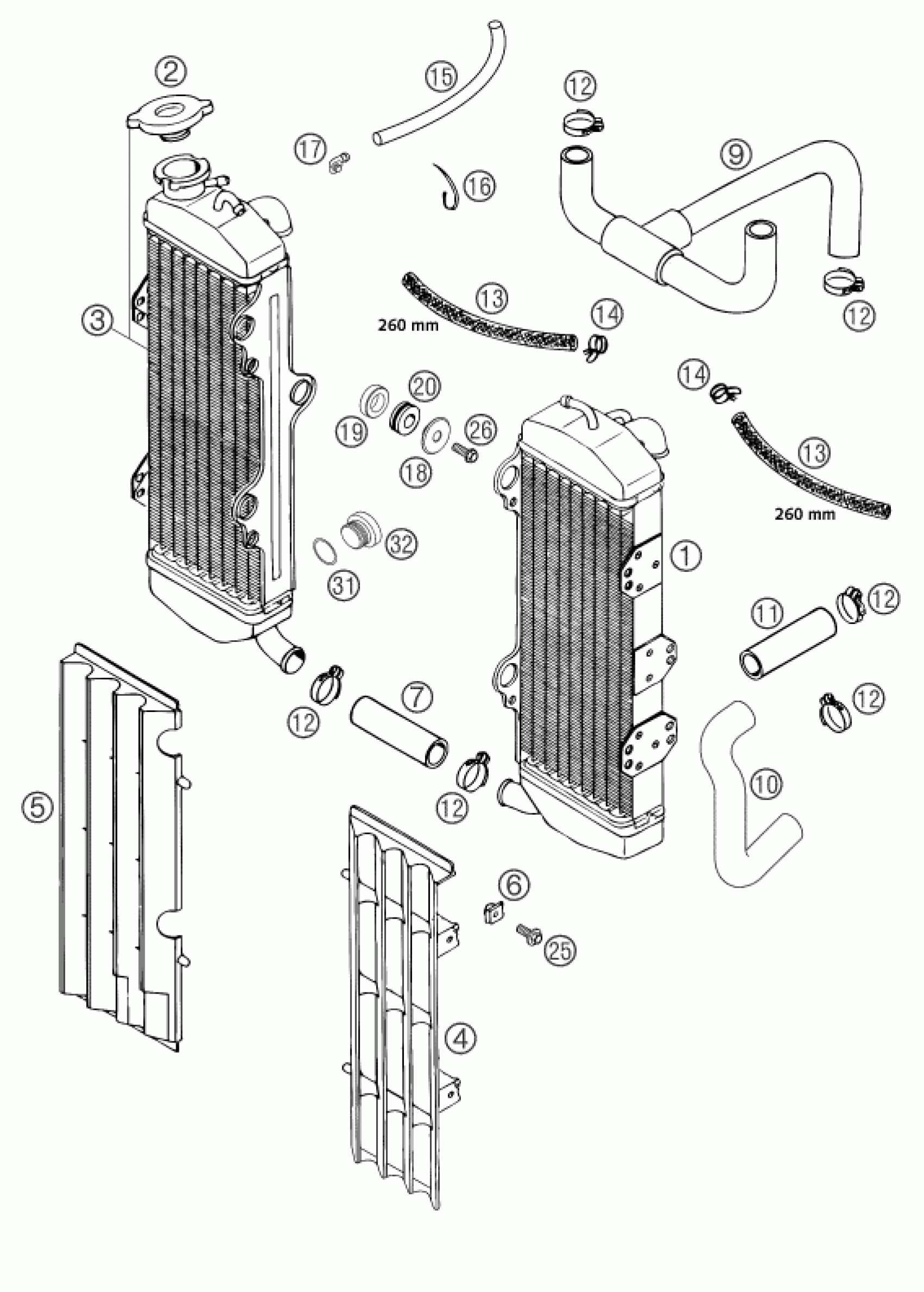

KTM 660 SMC 2003 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR L/S (45246) LC4'94

58335008000

Unavailable

2

RADIATOR CAP SMALL 20,3 PSI

58035016000

Unavailable

3

RADIATOR R/S (45.403) SXC 03

58335008200

Unavailable

4

RADIATOR PROTECT. L/S WHITE'96

58035034100

Unavailable

4

RADIATOR PROTECTOR L/S BLACK

58035034000

Unavailable

5

RADIATOR PROTECT. R/S WHITE'96

58035134100

Unavailable

5

RADIATOR PROTECTOR R/S BLACK

58035134000

Unavailable

6

SNAP-NUT HOLDER M6 KP142

50235033300

Unavailable

7

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable

9

PREFORMED HOSE LC4'94

58335026000

Unavailable

10

PREFORMED HOSE 18X25 PUMP-CY

58435025700

Unavailable

11

RADIATOR HOSE 20X26

58335024001

Unavailable

12

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

13

HOSE ID 7,5 PER METER

54435024001

Unavailable

14

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

15

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

16

Cable tie 200/4.6mm black

44011076200

Unavailable

17

ANGLE PIECE '97

50303089000

Unavailable

18

BUSHING F. RADIATOR SUPPORT 03

58435002000

Unavailable

19

BUSHING F.RADIATOR DISTANCE 03

58435003000

Unavailable

20

RUBBER SLEEVE D=12MM

41001052000

Unavailable

25

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

26

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

31

O-ring 17X1.5

0770017015

Unavailable

32

PLUG DIN0908-M18X1,5

0908180153

Unavailable
