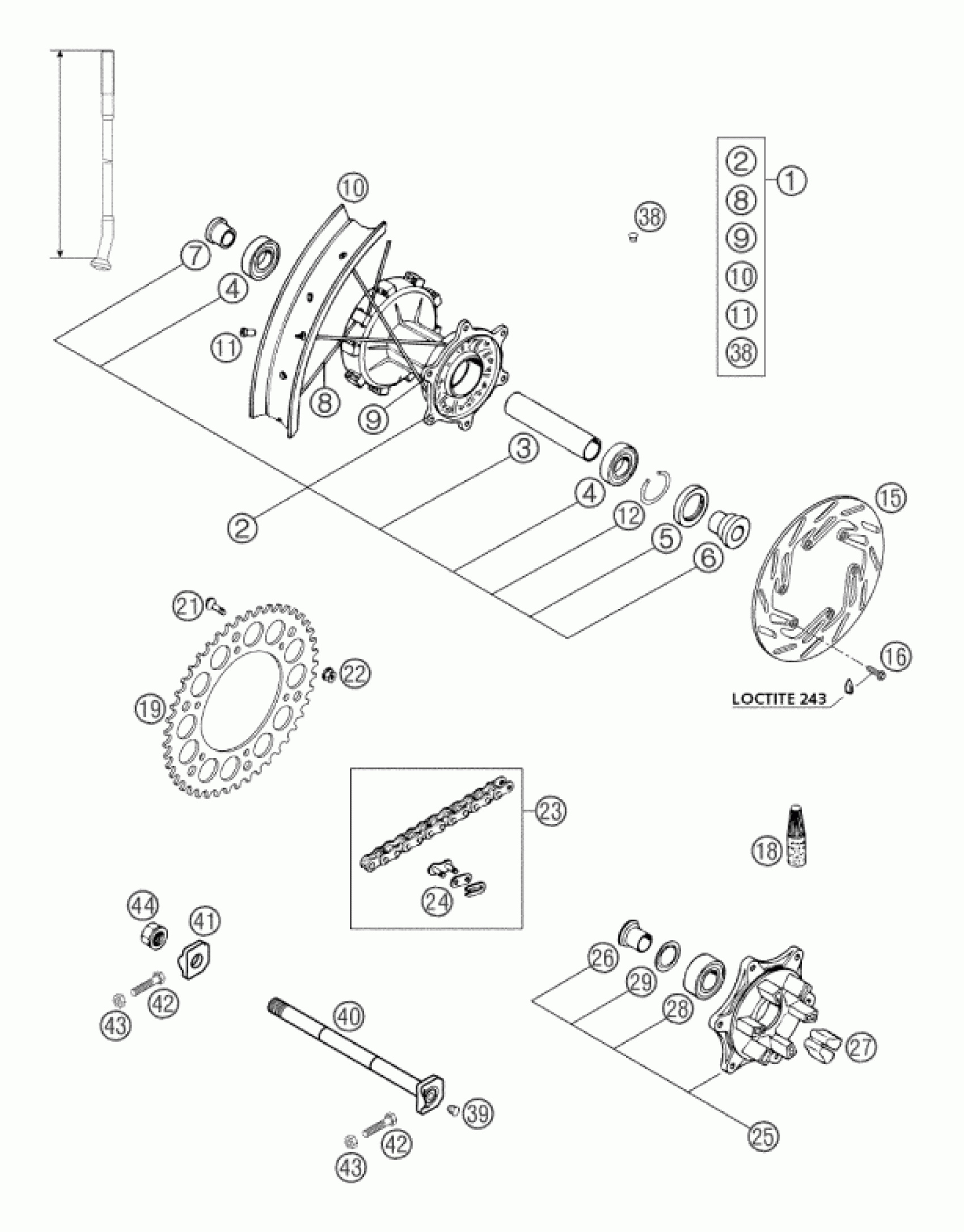

KTM 660 RALLYE 2002 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL 2,50X18'' DID

58310001044

Unavailable

2

REAR WHEEL HUB DAMPED CPL.'01

58410010044

Unavailable

3

BUSHING SPACER TUBE L=98,3MM

58410011000

Unavailable

4

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

5

SHAFT SEAL RING 32X52X7 B

0760325272

Unavailable

6

BUSHING FOR HUB

54610016000

Unavailable

7

BUSHING FOR REAR DAMPED HUB

54610416300

Unavailable

8

SPOKE M5X223-10G 18''

54610471000

Unavailable

9

SPOKE M5X197-10G 18'' DDE

50310071197

Unavailable

10

REAR RIM 2,50X18'' DID

58010470100

Unavailable

11

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

12

CIRCLIP DIN0472-52X2

0472052200

Unavailable

15

REAR BRAKE DISK 220MM COUNTERS

58010060600

Unavailable

16

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

18

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

19

% REAR SPROCKET 43-T HARD. STE

58510051043

Unavailable

19

% REAR SPROCKET 44-T HARD. STE

58510051044

Unavailable

19

REAR SPROCKET 45-T HARD. STEEL

58510051045

Unavailable

21

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

22

Self locking nut M8 10.9

54310086200

Unavailable

23

% X-RING CHAIN 5/8X1/4" +M.LIN

50310265118

Unavailable

24

CONNECTING LINK

50310266000

Unavailable

25

SPROCKET SUPPORT CPL.

58310050044

Unavailable

26

BUSH. F.SPROCKETSUPPORT L=25MM

54610417300

Unavailable

27

Rubber damping block 91

54610459000

Unavailable

24

MASTER LINK 5/8X1/4'' X-RING

50010066100

Unavailable

28

GR. BALL BEARING 3205B-2RSRTNG

0625032057

Unavailable

29

SEAL WASHER 3205 AV

54610018000

Unavailable

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

Unavailable

40

WHEEL SPINDLE REAR CPLL=264MM

50210085044

Unavailable

41

CHAIN TENSIONER '95

56510084100

Unavailable

42

HH SCREW M8X40 WS=10

50203030090

Unavailable

43

Hexagon nut DIN934 M8

0934080003

Unavailable

44

Hexagon nut M20x1.5

50310099000

Unavailable
