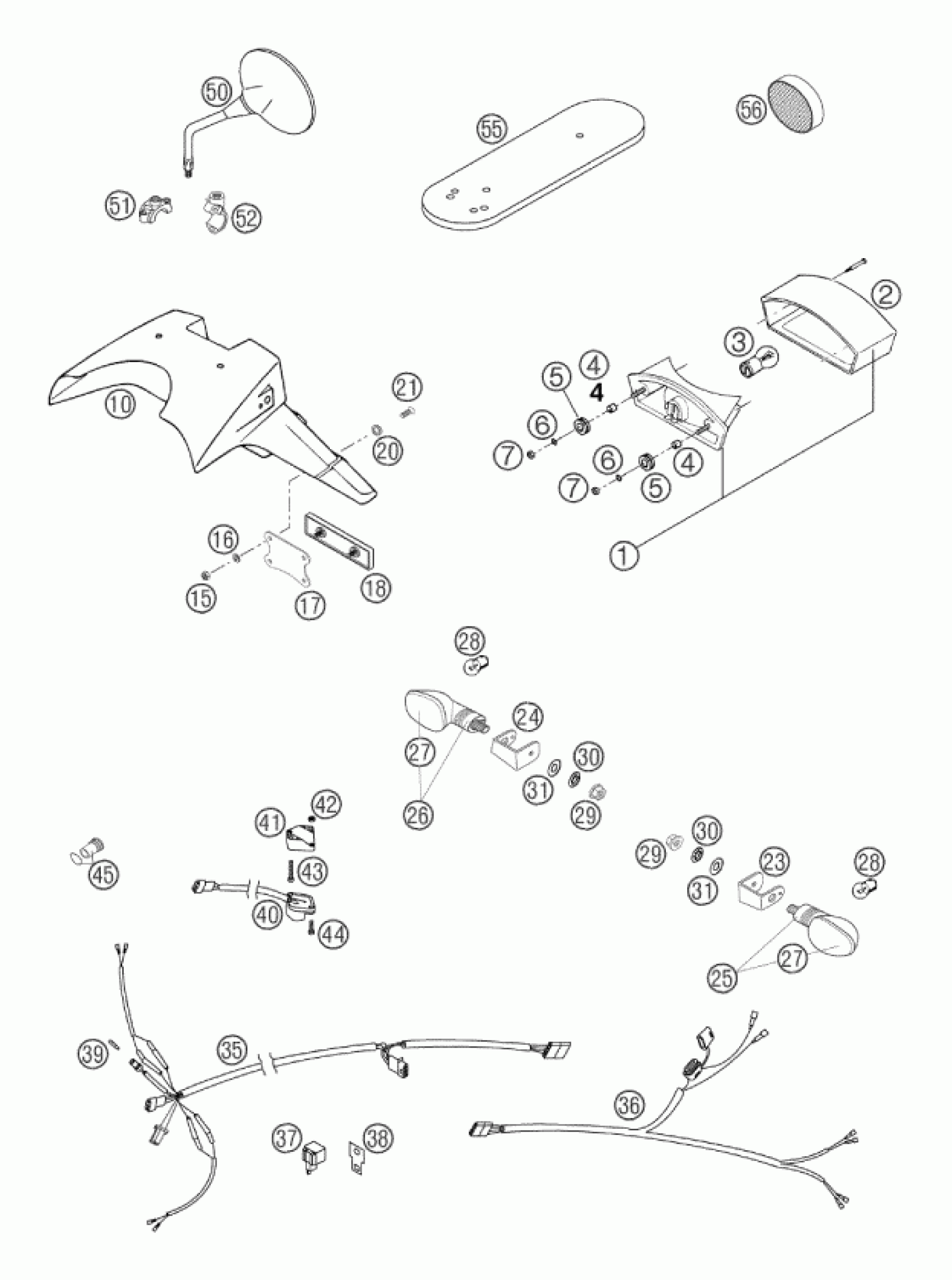

KTM 660 RALLYE 2002 Other Diagram

#

Description
Price

1

REAR LIGHT CPL. CEV 358 '93

58311040000

Unavailable

2

LENS '93

58311041000

Unavailable

3

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

Unavailable

4

SPACER BUSHING 6,5 X 8 X 7

58011039000

Unavailable

5

rubber grommet D=8mm open

31008060000

Unavailable

6

Washer DIN9021-A 6.4

0021060003

Unavailable

7

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

10

NUMBER PLATE CARRIER EGS '93

58308013051

Unavailable

15

Self locking nut DIN 985 M5

0985050003

Unavailable

16

WASHER DIN0125-A 5,3

0125050003

Unavailable

17

BRACKET FOR REFLECTOR

58412080050

Unavailable

18

REFLECTOR RED

58412080000

Unavailable

20

WASHER 6MM

40006006000

Unavailable

21

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

23

FLASHER SUPPORT RALLYE L/S 01

58514033000

Unavailable

24

FLASHER SUPPORT RALLYE R/S 01

58514034000

Unavailable

25

FLASHER CPL.FRONT L/S REAR R/S

5841402500030

Unavailable

26

FLASHER CPL.FRONT R/S REAR L/S

5841402600030

Unavailable

27

FLASHER LENS L/S & R/S '98

58414028000

Unavailable

28

BULB 12V 10W (BA15S)

44111015100

Unavailable

29

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

30

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

31

washer DIN 125 A 10.5

0125100003

Unavailable

35

FLAS.WIRINGHARN. FRONT 125-380

50311080100

Unavailable

36

FLAS.WIRINGHARN. REAR 125-380

50311081000

Unavailable

37

FLASHER UNIT 97

44611207200

Unavailable

38

BRACKET FOR FLASHER RELAY

58211031100

Unavailable

39

BULB 12V 1,2W (W2X4,6D)

49111425000

Unavailable

40

FLASHER SWITCH CEV '98

50311029000

Unavailable

41

ADAPTER FOR FLASHER SWITCH '98

13011070060

Unavailable

42

HEXAGON NUT DIN0934-M 4

0934040003

Unavailable

43

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

Unavailable

44

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

Unavailable

45

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

50

Rear view mirror, left/right

58412040100

Unavailable

51

Clamp for mirror

58012040150

Unavailable

52

CLAMP MIRROR WITH PIN

59002044000

Unavailable

55

AIR FILTER RESTRICTOR

58556001050

Unavailable

56

HOLE RESTRICTOR RALLYE 2002

58505071350

Unavailable
