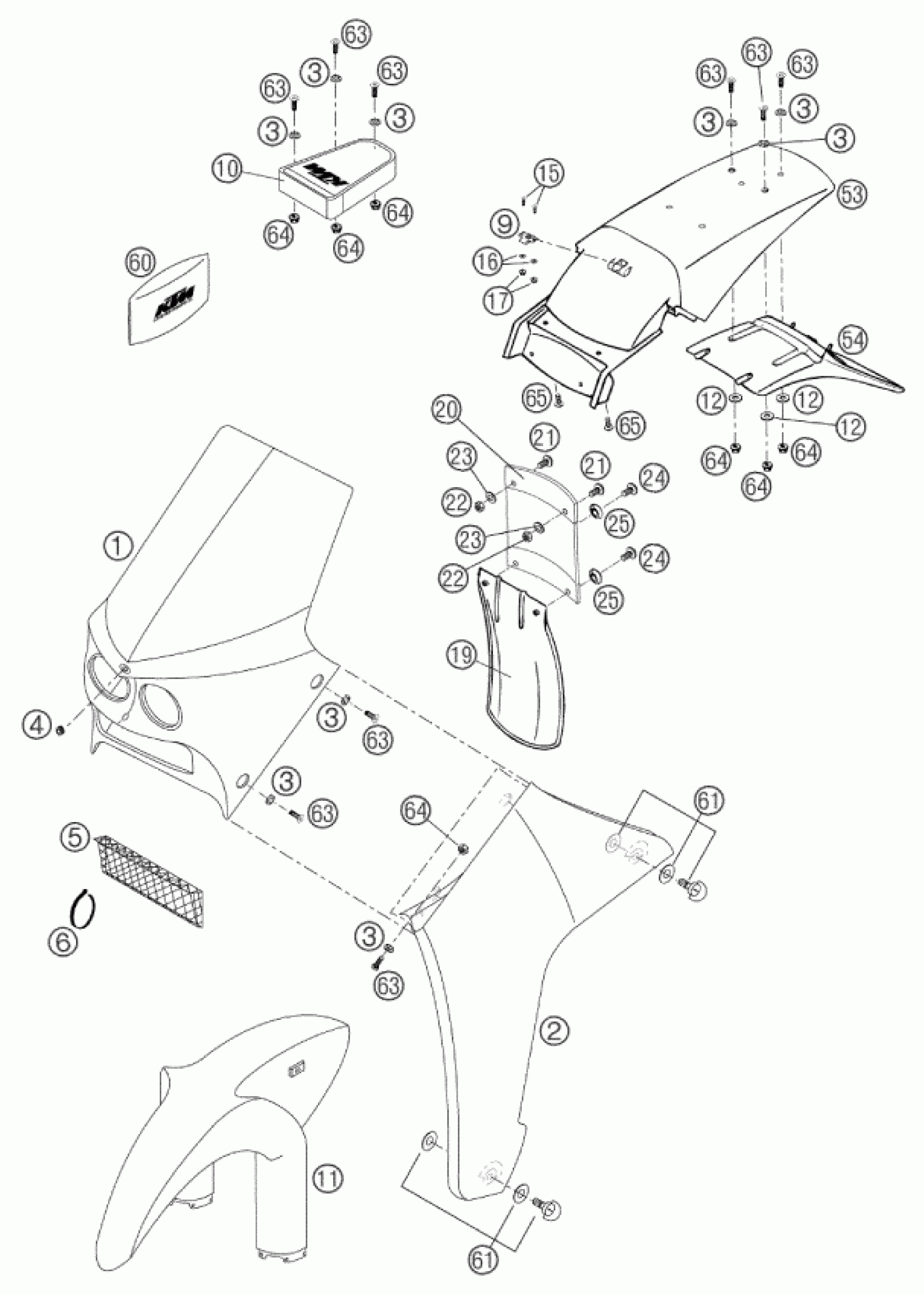

KTM 660 RALLYE 2002 MASK, FENDERS Diagram

#

Description
Price

1

COVER MIDDLE CPL. 01

5851100400090

Unavailable

2

COVER L/S CPL. 01

5851100300090

Unavailable

0

COVER R/S CPL. 01

5851100200090

Unavailable

3

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

Unavailable

4

RUBBER SLEEVE D=12MM

41001052000

Unavailable

5

OIL RADIATOR GRID RALLYE 01

58512060000

Unavailable

6

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

6

Cable tie 200/4.6mm black

44011076200

Unavailable

9

THRUST BEARING QUICK RELEASE

58307042051

Unavailable

10

TOOL BAG BLACK SC '99

58312078000

Unavailable

11

FRONT WHEEL FENDER RALLYE S.01

5850801000090

Unavailable

14

washer DIN 9021 A - 5.3

0021050003

Unavailable

15

SCREW FOR PLASTIC D=4X18

0016040183

Unavailable

16

WASHER DIN9021-A 4,3

0021040003

Unavailable

17

SELF LOCKING NUT DIN0985-M 4

0985040003

Unavailable

19

SPLASH PROTECT.FOR FILTER BOX

54606010000

Unavailable

20

SPLASH PROTECTION TOP 01

58506010000

Unavailable

21

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

22

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

23

washer DIN 9021 A - 5.3

0021050003

Unavailable

24

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

25

BUCKET

72210079000

Unavailable

53

FENDER REAR ORANGE '97

5830801320004

Unavailable

54

NUMBER PLATE CARRIER EXC '93

58308113051

Unavailable

60

ORIGINAL EQUIPMENT TOOL KIT

58329099000

Unavailable

61

Quick lock

45007040051

Unavailable

63

Flat head screw DIN7991 M6X20

0991060202

Unavailable

64

Self locking nut M6 - 10

56509064100

Unavailable

65

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable
