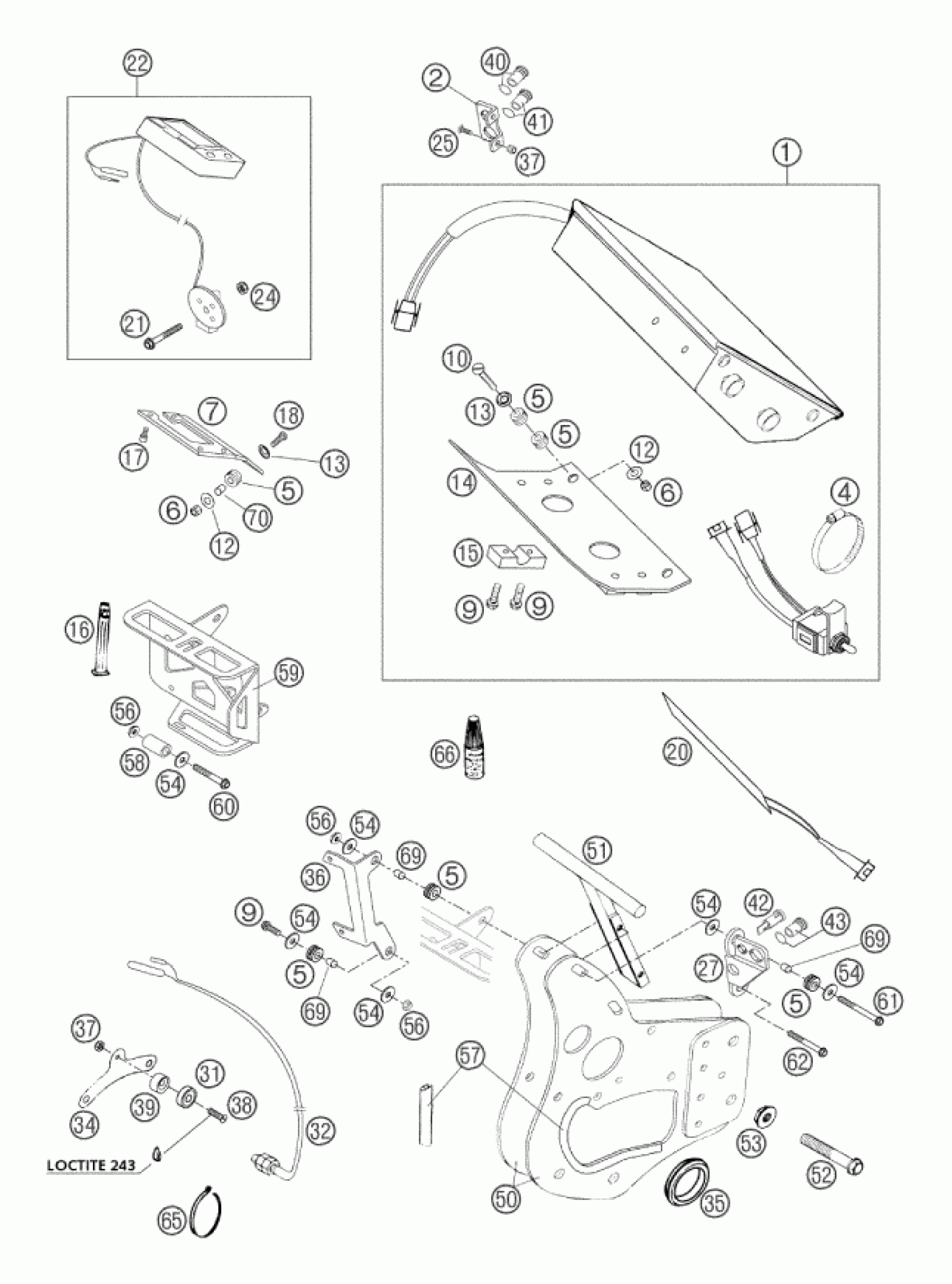

KTM 660 RALLYE 2002 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

ROADBOOK ELECTRONIC CPL.

58512098033

Unavailable

2

BRACKET INDICATOR WATER OIL 01

58511086000

Unavailable

4

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

5

rubber grommet D=8mm open

31008060000

Unavailable

6

Self locking nut DIN 985 M5

0985050003

Unavailable

7

58512085150

Unavailable

9

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

10

FLAT HEAD SCREW DIN7991-M 5X25

0991050253

Unavailable

12

washer DIN 9021 A - 5.3

0021050003

Unavailable

13

WASHER 6MM

40006006000

Unavailable

14

ROAD BOOK BRACKET RALLYE 2001

58312098150

Unavailable

15

MOUNTING CLAMP FOR ROADBOOK

58312098003

Unavailable

16

RUBBER BAND

54611186000

Unavailable

17

AH.SCREW DIN0912-M 4X10

0912040103

Unavailable

18

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

20

LIGHT DIODE BRACKET CPL.RALLYE

58512098100

Unavailable

21

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

22

TRIPMASTER Q1 RALLYE 2001

58512085000

Unavailable

24

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

25

* FLAT HEAD SCREW DIN963 M4X14

0963040143

Unavailable

27

BRACKET SWITCH INDICATOR 01

58511086200

Unavailable

28

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

31

MAGNET LOOSE '97

58314069050

Unavailable

32

% TRIPPMASTER CABLE CPL. RALLY

58512090050

Unavailable

34

BRACKET SENSOR MAGNET ADV. '97

58214050050

Unavailable

35

SLEEVE FOR STEERING HEAD

54635022000

Unavailable

36

BRACKET F. FUSE BOX 2001

58511084000

Unavailable

37

SELF LOCKING NUT DIN0985-M 4

0985040003

Unavailable

38

OVAL HEAD SCREW DIN966 M4X20

0966040203

Unavailable

39

BRAKE LEVER STOP '93

58303063000

Unavailable

40

OIL INDICATOR LIGHT RED

58011025000

Unavailable

41

TEMPERATURE WARN. LIGHT RED'98

58011022400

Unavailable

42

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

43

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

50

NAVIGATIONSEQU. SUPPORT

58512189044

Unavailable

51

SUPPORT FOR ROADBOOK

58512090000

Unavailable

52

HH COLLAR SCREW M 8X50 WS=10

0015080503

Unavailable

53

Self locking nut M8 10.9

54310086200

Unavailable

54

Washer DIN9021-A 6.4

0021060003

Unavailable

56

Self locking nut M6 - 10

56509064100

Unavailable

57

EDGE PROTECTOR PER METER

58312085100

Unavailable

58

SPACER BUSHING NAV.SUPPORT 01

58512005000

Unavailable

59

SUPPORT F.TROUBL.ST. RALLYE'01

58512077100

Unavailable

60

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

61

HH COLLAR SCREW M 6X55 WS=8

0015060553

Unavailable

62

HH COLLAR SCREW M 6X65 WS=8

0015060653

Unavailable

65

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

0

Cable tie 200/4.6mm black

44011076200

Unavailable

0

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

66

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

69

SPACER BUSHING 6X8X8,5

54431032050

Unavailable

70

SPACER BUSHING 6,5 X 8 X 7

58011039000

Unavailable
