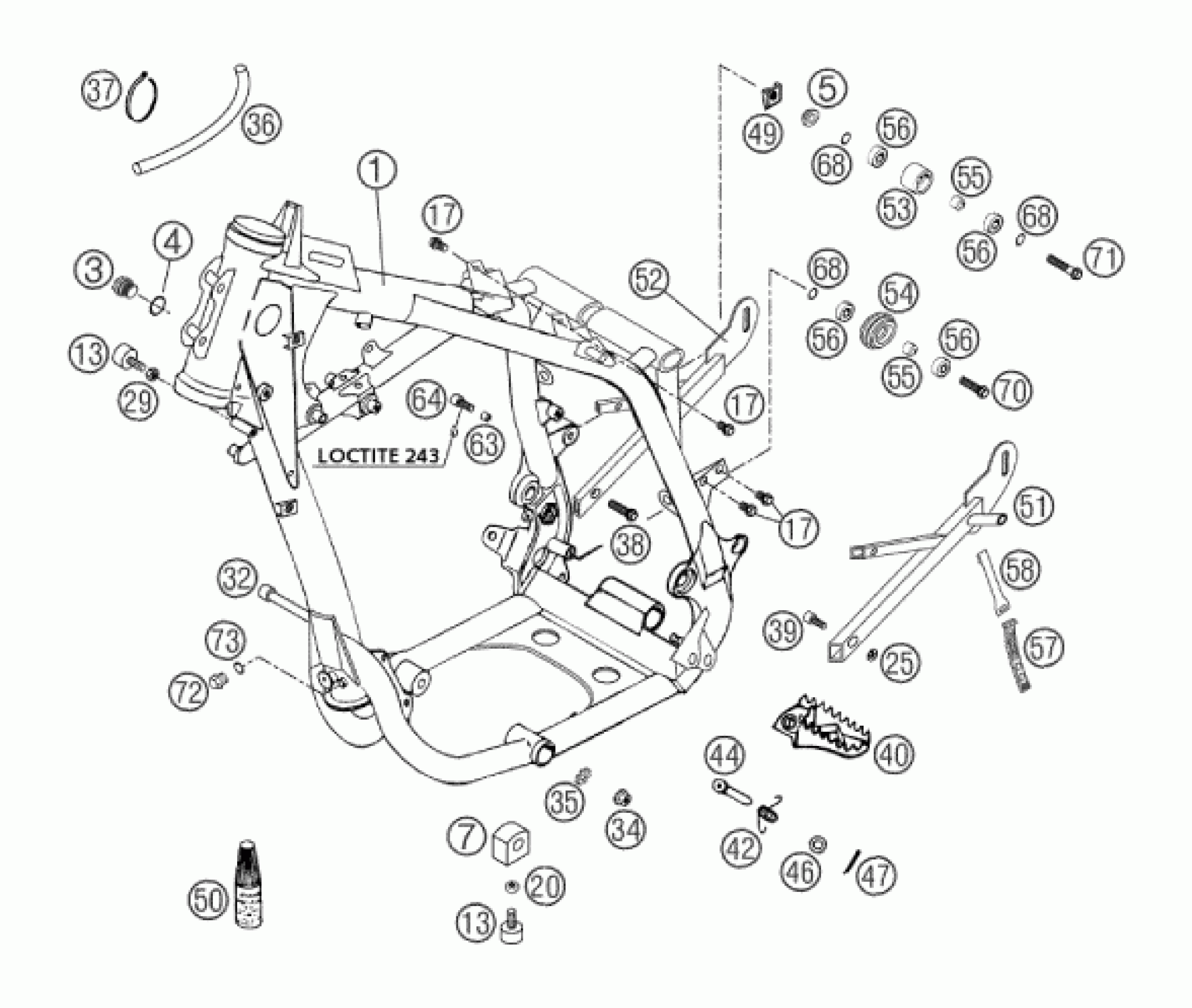

KTM 660 RALLYE 2002 FRAME Diagram

#

Description
Price

1

5850300144490

Unavailable

3

PLUG DIN0910-M16X1,5

0910160153

Unavailable

4

CU-SEAL RING 16X22X2

0603162220

Unavailable

5

STEPPED WASHER 16X11X8X4,5 01

58530060050

Unavailable

7

ENGINE PROT. BRACKET 21 2001

58503012000

Unavailable

13

STOP RUBBER M8

58303070000

Unavailable

17

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

20

Hexagon nut DIN934 M8

0934080003

Unavailable

25

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

Unavailable

29

Hexagon nut DIN934 M8

0934080003

Unavailable

32

AH SCREW DIN0912-M10X160

0912101603

Unavailable

34

COLLAR NUT M10 WS=13

54630044000

Unavailable

35

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

36

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

37

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

38

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

39

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

40

FOOT PEG L/S SILVER 02

59003040250

Unavailable

0

FOOT PEG R/S SILVER 02

59003041250

Unavailable

42

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

44

BOLT FOR FOOTREST 9,8 X 50

54603044000

Unavailable

46

washer DIN 125 A 10.5

0125100003

Unavailable

47

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

49

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

50

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

51

TANK HOLDER DOWN L/S 2001

58503002310

Unavailable

52

TANK HOLDER DOWN R/S 2001

58503002330

Unavailable

53

CHAIN ROLL D=30MM

50203053000

Unavailable

54

CHAIN ROLL D=35MM 125-380 '99

52303053100

Unavailable

55

BUSHING 8.2 X 12 X 6

74003021000

Unavailable

56

Grooved ball bearing 608 2RS C

0625006087

Unavailable

57

RUBBER BAND

54611186000

Unavailable

58

SIDE STAND RUBBER-RET.PANEL 01

58503023170

Unavailable

63

BUSHING 7X12X15,4

54305069000

Unavailable

64

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

68

LOCK WASHER 8MM

36003014000

Unavailable

70

HH COLLAR SCREW M 8X35 WS=10

0015080353

Unavailable

71

HH COLLAR SCREW M 8X65 WS=10

0015080653

Unavailable

72

PLUG DIN0910-M 10X1

0910100003

Unavailable

73

CU-SEAL RING 10 X 14 X 1,5

58038022900

Unavailable
