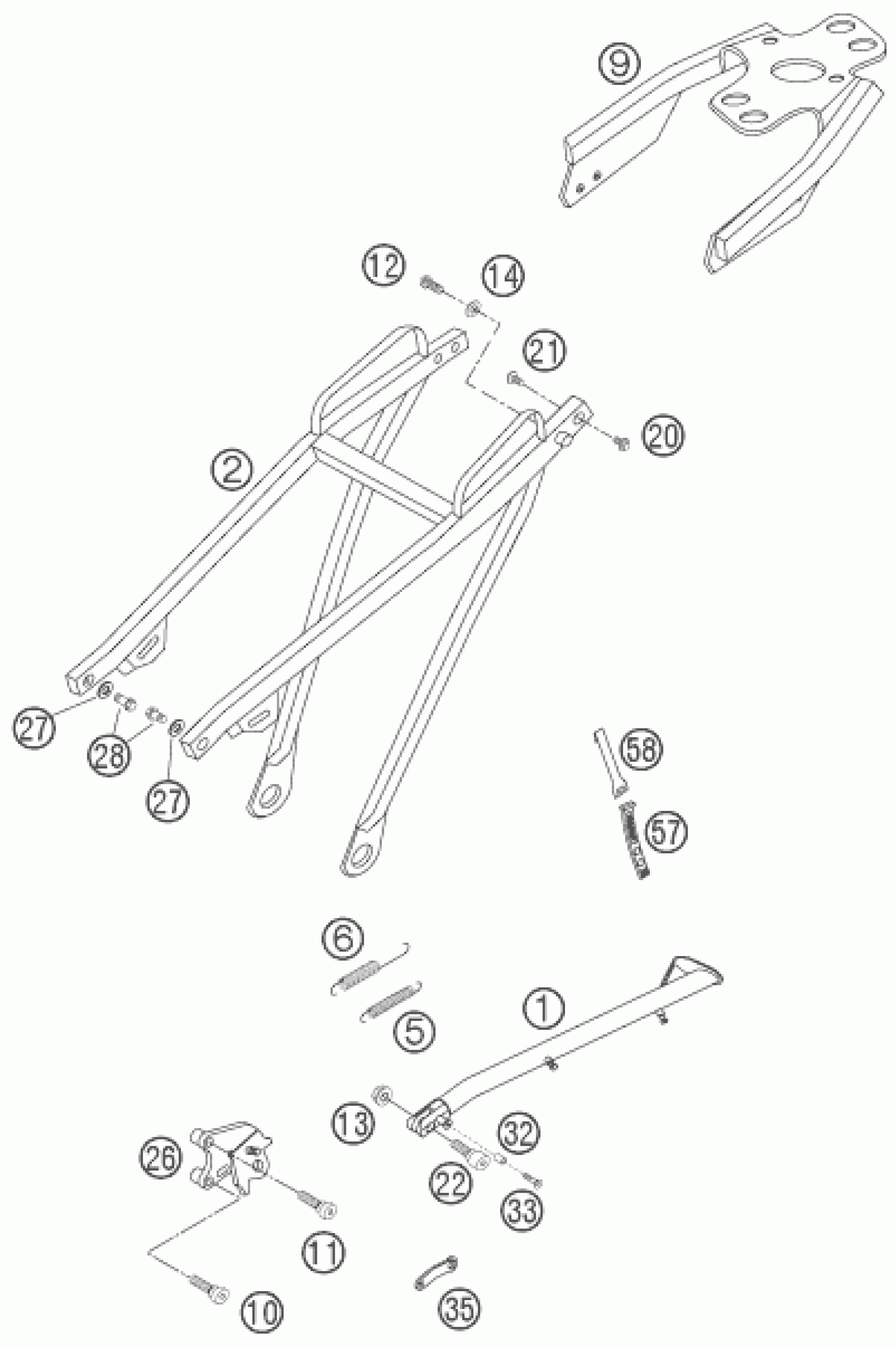

KTM 660 RALLY FACTORY REPLICA 2007 SUBFRAME Diagram

#

Description
Price

1

SIDE STAND CPL. 06

58503023300

Unavailable

2

SUB FRAME STEEL RALLY 2001

58503002300

Unavailable

5

SIDE STAND SPRING D=7,7MM '97

58403030000

Unavailable

6

SIDESTAND SPRING LONG

51003021000

Unavailable

9

SUB FRAME EXTENSION 2001

58503002340

Unavailable

10

AH SCREW DIN7984 M10x35

0984100356

Unavailable

11

AH SCREW DIN6912 M10X45

0984100456

Unavailable

12

SPROCKET SCREW-AH M8X20 WS=6

54610052000

Unavailable

13

SELF LOCKING NUT DIN0985-M10

0985100003

Unavailable

14

SPECIAL WASHER ALU 8 X 24 MM

58303061000

Unavailable

20

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

21

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

22

STAND SCREW RALLY 2001

58503023060

Unavailable

27

LOCK WASHER 8MM

36003014000

Unavailable

32

SPACER BUSHING 6,1X8,2X13,1

59036001050

Unavailable

26

SIDE STAND BRACKET CPL. 05

58503026350

Unavailable

28

HH COLLAR SCREW S.FRAME RAL.01

58503002001

Unavailable

33

FLAT HEAD SCREW M6X23 8.8

58503023070

Unavailable

35

BELL CRANK SIDE STAND

76203080000

Unavailable

57

RUBBER BAND

54611186000

Unavailable

58

SIDE STAND RUBBER-RET.PANEL 01

58503023170

Unavailable
