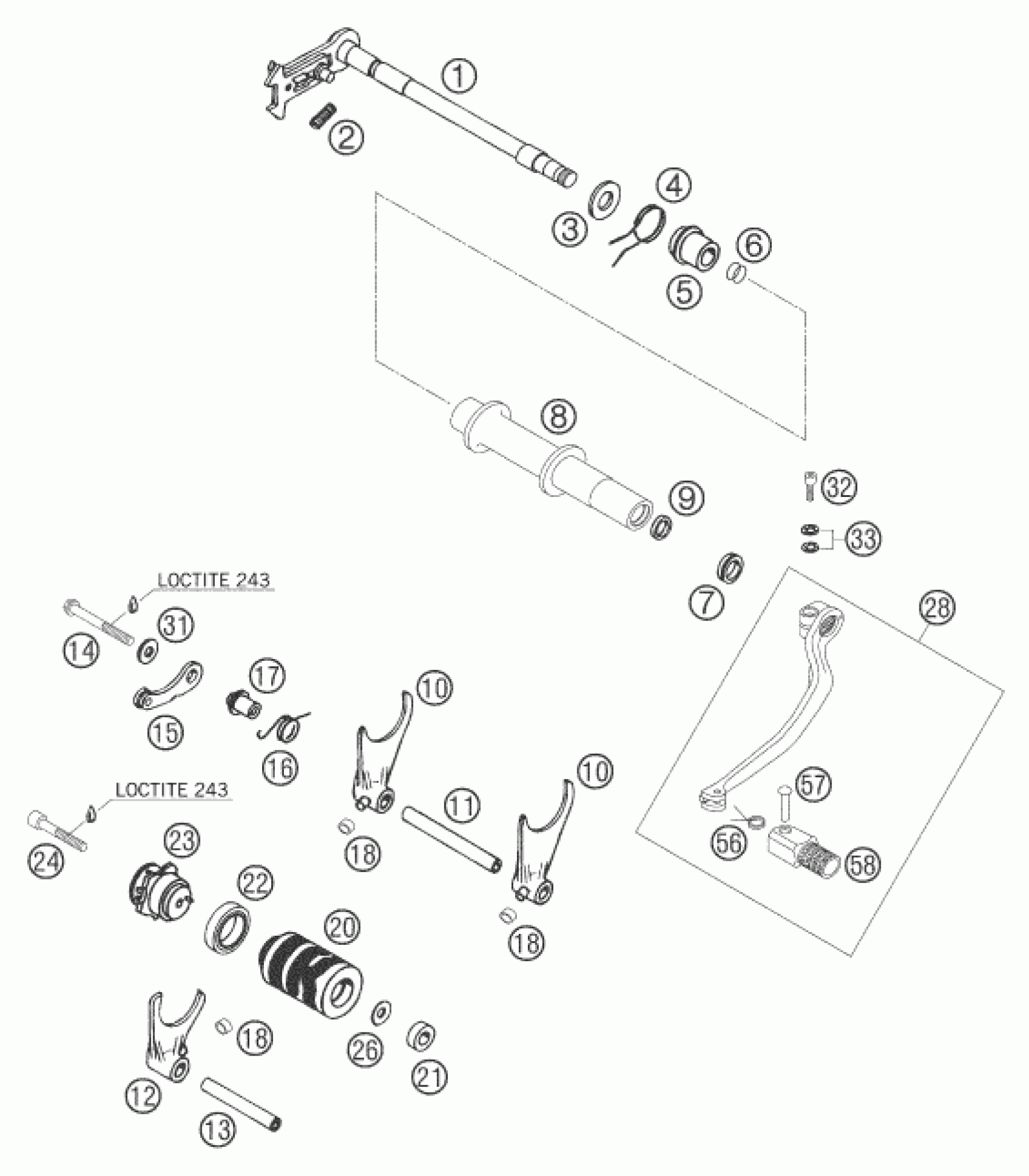

KTM 660 RALLY FACTORY REPLICA 2007 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT SHAFT WELDED 2001

58534005044

Unavailable

2

TENSIONING SPRING 0,8MM

56534013100

$1.69

3

STEEL WASHER 14 X 28 X 2

58034010000

Unavailable

4

RETURN SPRING

58034014000

Unavailable

5

SPRING SLEEVE

58334020000

Unavailable

6

O-RING 12,50X2,00 NBR 70

0770125020

$2.54

7

V-SEAL RING V-14-A

58033027000

$5.23

8

SPACER SHAFT 2001

58534006000

Unavailable

9

SEAL RING DH/GR 12X16X3

54632090000

$11.02

10

SHIFT FORK 1ST/4TH+2ND GEAR'98

58034002300

Unavailable

11

SHIFT RAIL 1ST/4TH + 2ND GEAR

58034004000

Unavailable

12

SHIFT FORK 3RD/5TH GEAR '98

58034001300

Unavailable

13

SHIFT RAIL 3RD/5TH GEAR

58034003000

Unavailable

14

HH COLLAR SCREW M 6X65 WS=8

0015060653

$2.54

15

LOCKING LEVER CPL. '94

58334024044

Unavailable

16

SPRING

58034023500

Unavailable

17

SPRING SLEEVE

58334017000

Unavailable

18

SHIFTING ROLLER 6X8X5,2

50334018100

$4.24

20

SHIFT ROLLER ALU '98

58334012100

Unavailable

21

Grooved ball bearing 608 2RS C

0625006087

$21.40

22

BALL BEARING 61805 C3

0625618050

$43.94

23

SHIFT LOCATING DRUM CPL. '98

58434015044

Unavailable

24

AH SCREW DIN0912-M 6X40 A2

0912060404

$2.54

26

WASHER 6,2X22X1,ST30,W.GALV.

51006097000

Unavailable

28

SHIFT LEVER CPL. 05

58534031144

Unavailable

31

WASHER 6,2X18X2

50232050000

$5.23

32

AH SCREW DIN0912-M 6X20

0912060203

$2.54

33

Pair of washers M6 NORDLOCK

50233041000

$4.24

56

SHIFTING LEVER SPRING 250

54634032100

$3.39

57

BOLT 6X25 FOR SHIFT LEVER

54634031050

$7.85

58

STEP PLATE FOR SHIFT LEVER 250

54634131000

$31.59
