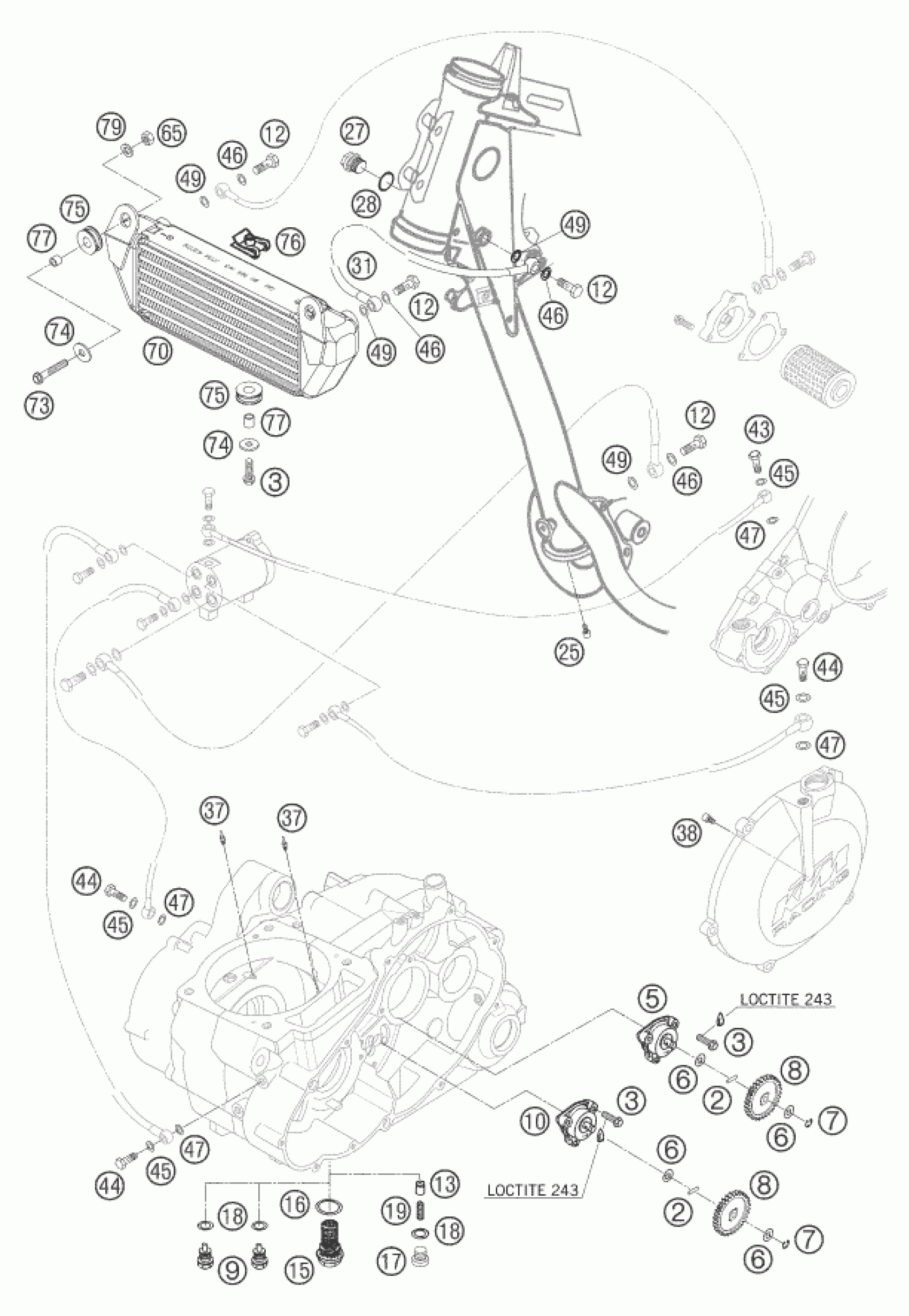

KTM 660 RALLY FACTORY REPLICA 2007 LUBRICATING SYSTEM Diagram

#

Description
Price

1

SCREW TYPE FILTER

58338045100

Unavailable

4

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

12

HOLLOW SCREW M10 X 1

54313025000

Unavailable

20

OIL FILTER LONG

58038005100

Unavailable

21

OIL FILTER COVER GASKET 2001

58530041000

Unavailable

22

OIL FILTER COVER 2001

58030008700

Unavailable

30

OIL L.OIL FIL.-OIL COOL.1110MM

58538052044

Unavailable

31

OIL L. JUNC.B.-ENGI.CASE L 04

58538043044

Unavailable

32

OIL L. JUNC.B.-CRANK SH. 300MM

58538046044

Unavailable

33

OIL L. JUNC.B.-ENGI.CASE 260MM

58538044044

Unavailable

34

OIL L. JUNC.B-CLUTCH C. 465MM

58538045044

Unavailable

35

OIL L. FRAME-JUNC.BOX 91MM 01

58538054044

Unavailable

44

BANJO BOLT M8 X 1 DIN7643

58038030000

Unavailable

45

COPPER Gask.DIN7603- 8.2X13X1

0603082131

Unavailable

46

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

47

COPPER GASKET 8,2X12X2 MM 2001

0603821220

Unavailable

49

COPPER GASKET 10,2X14X2 MM 01

0603101420

Unavailable

50

OIL FILT.COVER M10X1 RALLYE 01

58538041000

Unavailable

51

O-RING 40,00X2,50 NBR 70

0770400025

Unavailable

52

MICRO FILTER HOUSING RALLYE 01

58538043000

Unavailable

53

OIL FILTER SHORT

59038046100

Unavailable

55

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

56

RUBBER RING 45/52/16

58538043010

Unavailable

57

OILPRESSURE SWITCH 03

58338091100

Unavailable

58

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

61

RUBBER GROMMET 20X11/M6X18 01

58538010000

Unavailable

62

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

63

BRACKET FOR MICRO FILTER 2001

58538050000

Unavailable

64

Hex. nut DIN 934 M6

0934060003

Unavailable

66

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

67

Pair of washers M6 NORDLOCK

50233041000

Unavailable
