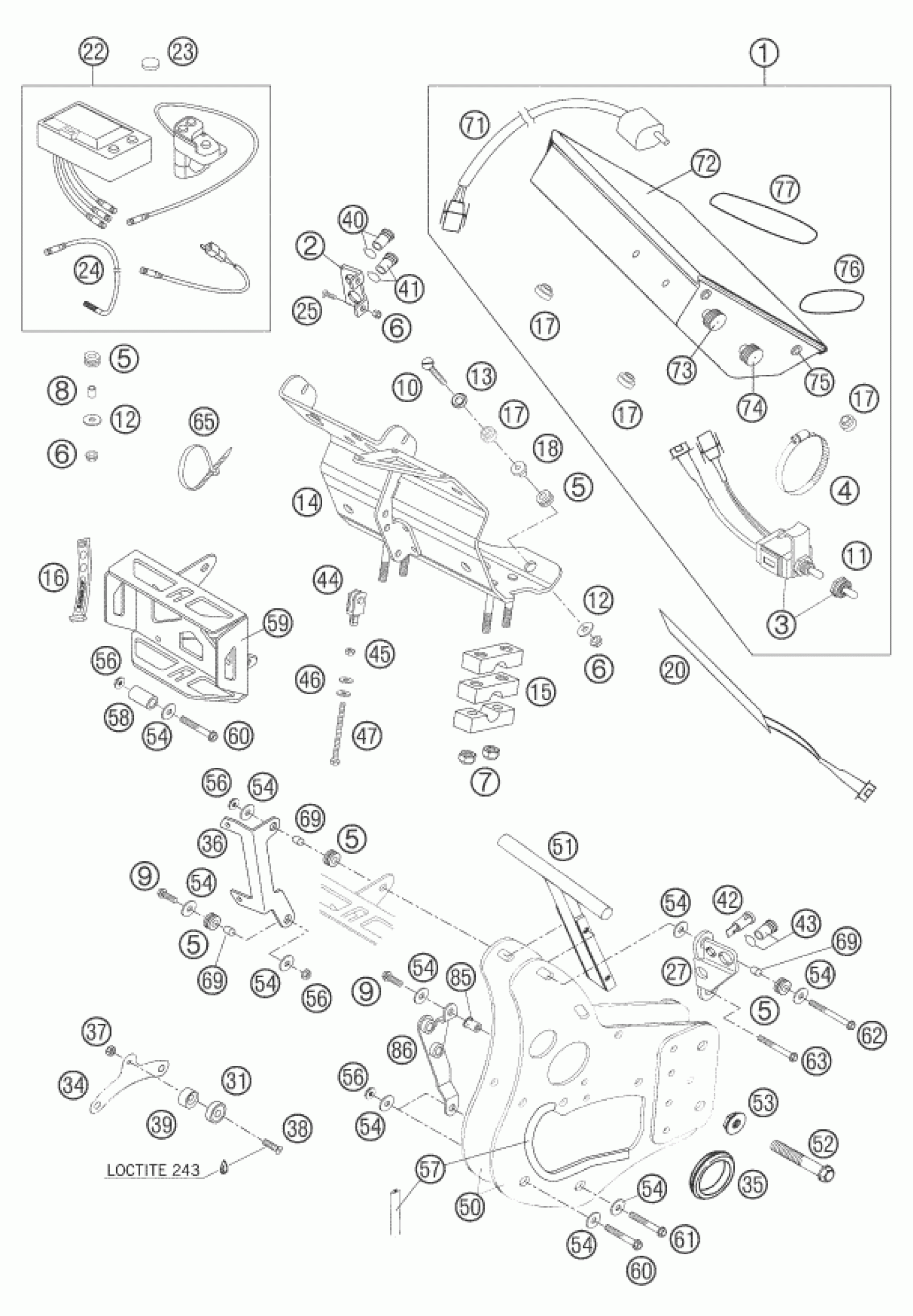

KTM 660 RALLY FACTORY REPLICA 2007 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

ROADBOOK CPL. 2005

58512098144

Unavailable

2

BRACKET INDICATOR WATER OIL 01

58511086000

Unavailable

3

ROADBOOK SWITCH CPL. 03

58512075044

Unavailable

4

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

5

rubber grommet D=8mm open

31008060000

$2.54

6

Self locking nut DIN 985 M5

0985050003

$2.54

7

Self lock. nut DIN985-M6-A2

0985060003

$2.54

8

SPACER BUSHING 6,5 X 8 X 7

58011039000

$2.54

9

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

10

FLAT HEAD SCREW DIN7991-M 5X25

0991050253

$1.69

11

NUT W.RUBBER COV. ROADB.SWITCH

58512098160

Unavailable

12

washer DIN 9021 A - 5.3

0021050003

$1.69

13

WASHER 6MM

40006006000

$1.69

14

ROAD BOOK BRACKET RALLYE 2004

58512098150

Unavailable

15

MOUNTING CLAMP FOR ROADBOOK

58312098003

Unavailable

16

RUBBER BAND

54611186000

$5.23

17

COLLAR BUSHING

50213161000

$3.39

18

SPACER BUSHING HEAD LIGHT 03

60014007000

$3.39

20

LIGHT DIODE BRACKET CPL.RALLYE

58512098100

Unavailable

22

TRIPMASTER ICO RALLYE 04

58512085100

Unavailable

23

BATTERY FOR ICO TRIPMASTER 04

58512085160

$9.06

24

SENSORKIT ITEM NR. 124 05

58512090150

Unavailable

25

FLAT HEAD SCREW DIN0965-M 5X10

0965050103

$2.54

27

BRACKET SWITCH INDICATOR 01

58511086200

Unavailable

31

MAGNET LOOSE '97

58314069050

Unavailable

34

BRACKET SENSOR MAGNET ADV. '97

58214050050

Unavailable

35

SLEEVE FOR STEERING HEAD

54635022000

Unavailable

36

BRACKET F. FUSE BOX 2001

58511084000

Unavailable

37

SELF LOCKING NUT DIN0985-M 4

0985040003

$1.69

38

OVAL HEAD SCREW DIN966 M4X20

0966040203

Unavailable

39

BRAKE LEVER STOP '93

58303063000

$5.98

40

OIL INDICATOR LIGHT RED

58011025000

$6.44

41

TEMPERATURE WARN. LIGHT RED'98

58011022400

$6.54

42

HIGH BEAM INDICATOR LIGHT BLUE

58011021200

Unavailable

43

FLASHER INDICAT.LIGHT GREEN'98

58011024300

$6.72

44

FORK HEAD WITH PIN

58512078000

Unavailable

45

HEXAGON NUT DIN0934-M 5

0934050003

$2.54

46

WASHER DIN0125-A 5,3

0125050003

$1.69

47

HH SCREW DIN931 M5X60

0931050603

Unavailable

50

SUPPORT F.NAVIGATIONSEQUIPMENT

58512089044

Unavailable

51

SUPPORT FOR ROADBOOK

58512090000

Unavailable

52

HH COLLAR SCREW M 8X50 WS=10

0015080503

$2.54

53

Self locking nut M8 10.9

54310086200

$3.39

54

Washer DIN9021-A 6.4

0021060003

$2.54

56

Self locking nut M6 - 10

56509064100

$2.54

57

EDGE PROTECTOR PER METER

58312085100

Unavailable

58

SPACER BUSHING NAV.SUPPORT 01

58512005000

Unavailable

59

SUPPORT F.TROUBL.ST. RALLYE'04

58512077200

Unavailable

60

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

61

HH COLLAR SCREW M 6X50 WS=8

0015060503

Unavailable

62

HH COLLAR SCREW M 6X55 WS=8

0015060553

Unavailable

63

HH COLLAR SCREW M 6X65 WS=8

0015060653

$2.54

65

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

65

Cable tie 200/4.6mm black

44011076200

Unavailable

65

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

69

SPACER BUSHING 6X8X8,5

54431032050

Unavailable

71

ROADBOOK ENGINE CPL. 03

58512074044

Unavailable

72

PLASTIC COVER FOR ROADBOOK 03

58512074020

Unavailable

73

ALU-BUTTON TOP FOR ROADBOOK 03

58512074030

Unavailable

74

ALU-BUTTON BASE F. ROADBOOK 03

58512074040

Unavailable

75

PLASTIC BUSHING F. ROADBOOK 03

58512074050

Unavailable

76

O-RING FOR ROADBOOK SHORT 03

58512074060

Unavailable

77

O-RING FOR ROADBOOK LONG 03

58512074070

Unavailable

85

BLIND RIVET NUT M 6X15,5 STEEL

55003139600

Unavailable

86

BRACKET DIGIBOX RALLYE CPL. 03

58512086000

Unavailable
