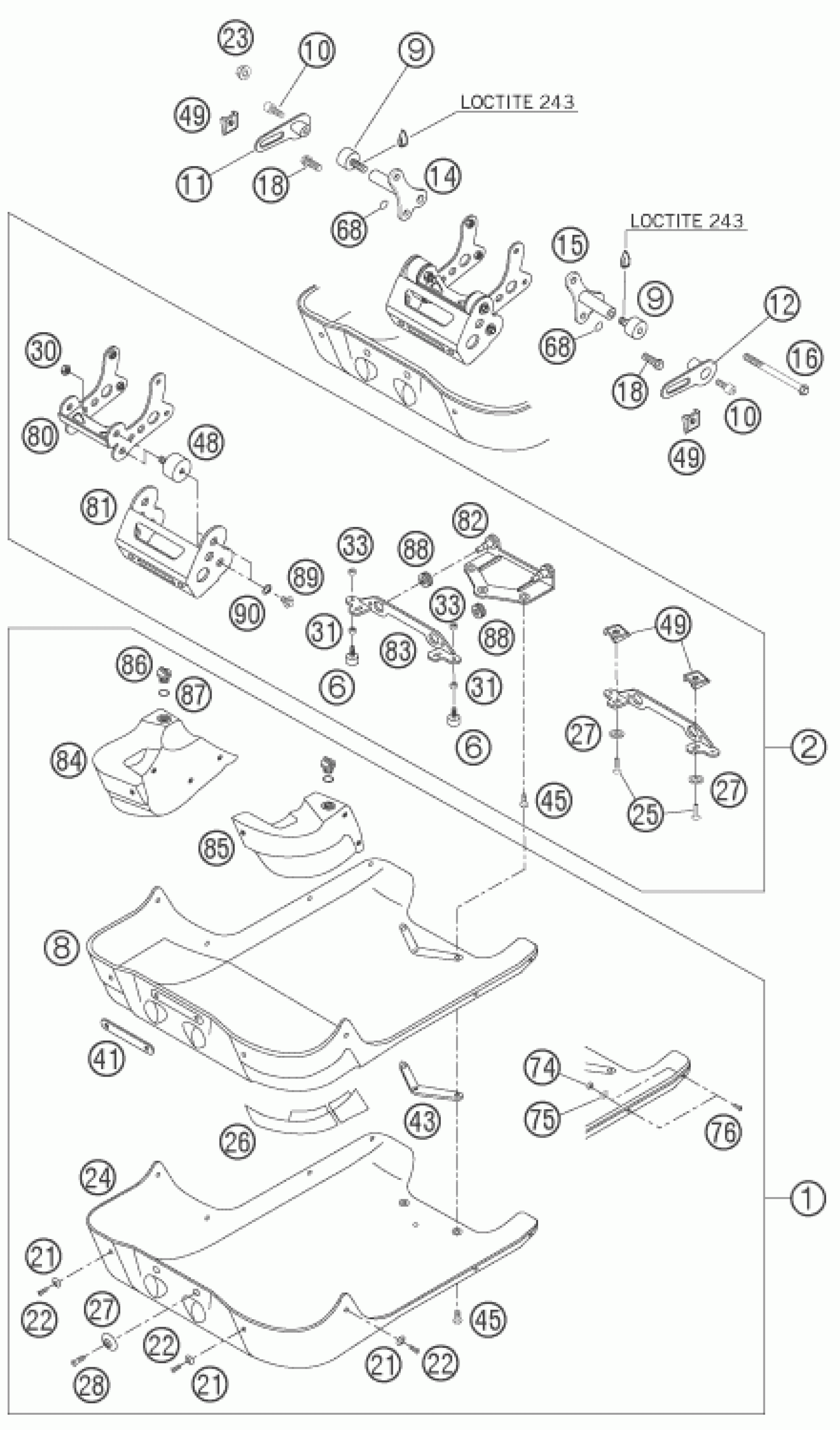

KTM 660 RALLY FACTORY REPLICA 2007 ENGINE GUARD Diagram

#

Description
Price

1

ENG.PROTECTOR CARBON CPL. 2002

58512099344

Unavailable

2

ENG.PROTECTOR MOUNTING CPL. 02

58553016144

Unavailable

6

RUBBER GROMMET 20X11/M6X18 01

58538010000

Unavailable

8

ENGINE PROTECTOR CARBON 02

58512099340

Unavailable

9

RUBBER GROMMET 30X15-M8X12-(1)

43205262000

Unavailable

10

AH SCREW DIN912 M8X12

0912080123

Unavailable

11

TANK HOLDER FR. R/S OUTSIDE 01

58562093051

Unavailable

12

TANK HOLDER FR. L/S OUTSIDE 01

58562092051

Unavailable

14

TANK HOLDER FR.R/S INSIDE 01

58562092050

Unavailable

15

TANK HOLDER FR.L/S INSIDE 01

58562093050

Unavailable

16

HH SCREW DIN0931-M10X110

0931101103

Unavailable

18

HH COLLAR SCREW M 8X20 WS=10

0015080203

Unavailable

21

SPECIAL WASHER 7X12,5X20 BLACK

58308045000

Unavailable

22

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

Unavailable

23

flanged hex nut DIN 6927 M10 W

49009082000

Unavailable

24

PC-OUTER HULL RALLYE LC4 02

58512099330

Unavailable

25

SPROCKET SCREW-AH M8X20 WS=6

54610052000

Unavailable

26

STONE GUARD RAL. SET 02

58512099360

Unavailable

27

SPECIAL WASHER ALU 8 X 24 MM

58303061000

Unavailable

28

SPROCKET SCREW-AH M8X26 WS=6

54510052100

Unavailable

30

SELF LOCKING NUT DIN0985-M 8

0985080003

Unavailable

31

Hex. nut DIN 934 M6

0934060003

Unavailable

33

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

41

BRACE PLATE FRONT 02

58512099341

Unavailable

43

BRACE PLATE REAR 02

58512099342

Unavailable

45

FLAT HEAD SCREW DIN7991 M8X20

0991080203

Unavailable

48

RUBBER GROMMET 30X15-M8X12-(1)

43205262000

Unavailable

49

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

68

LOCK WASHER 8MM

36003014000

Unavailable

74

Self locking nut DIN 985 M5

0985050003

Unavailable

75

WASHER DIN0125-A 5,3

0125050003

Unavailable

76

LINTIL HEAD SCREW M5X12 AH 02

58512099365

Unavailable

80

ENG.PROTECT.BR.FRONT FRAME 02

58553019000

Unavailable

81

ENGINE PROTECTOR FRONT RAL 02

58553016100

Unavailable

82

ENG.PROTECTOR REAR TO PLUG 02

58553018000

Unavailable

83

ENGINE PROTECTOR REAR RAL 02

58553017000

Unavailable

86

PLUG M 24X3

58030020000

Unavailable

87

O-RING 16,00X3,00 NBR 70

0770160030

Unavailable

84

WATERT.CARB.ENG.PROT. R/S 02

58512099351

Unavailable

85

WATERT.CARB.ENG.PROT. L/S 02

58512099350

Unavailable

89

HH SCREW DIN0933-M 8X10

0933080103

Unavailable

90

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

Unavailable

88

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable
