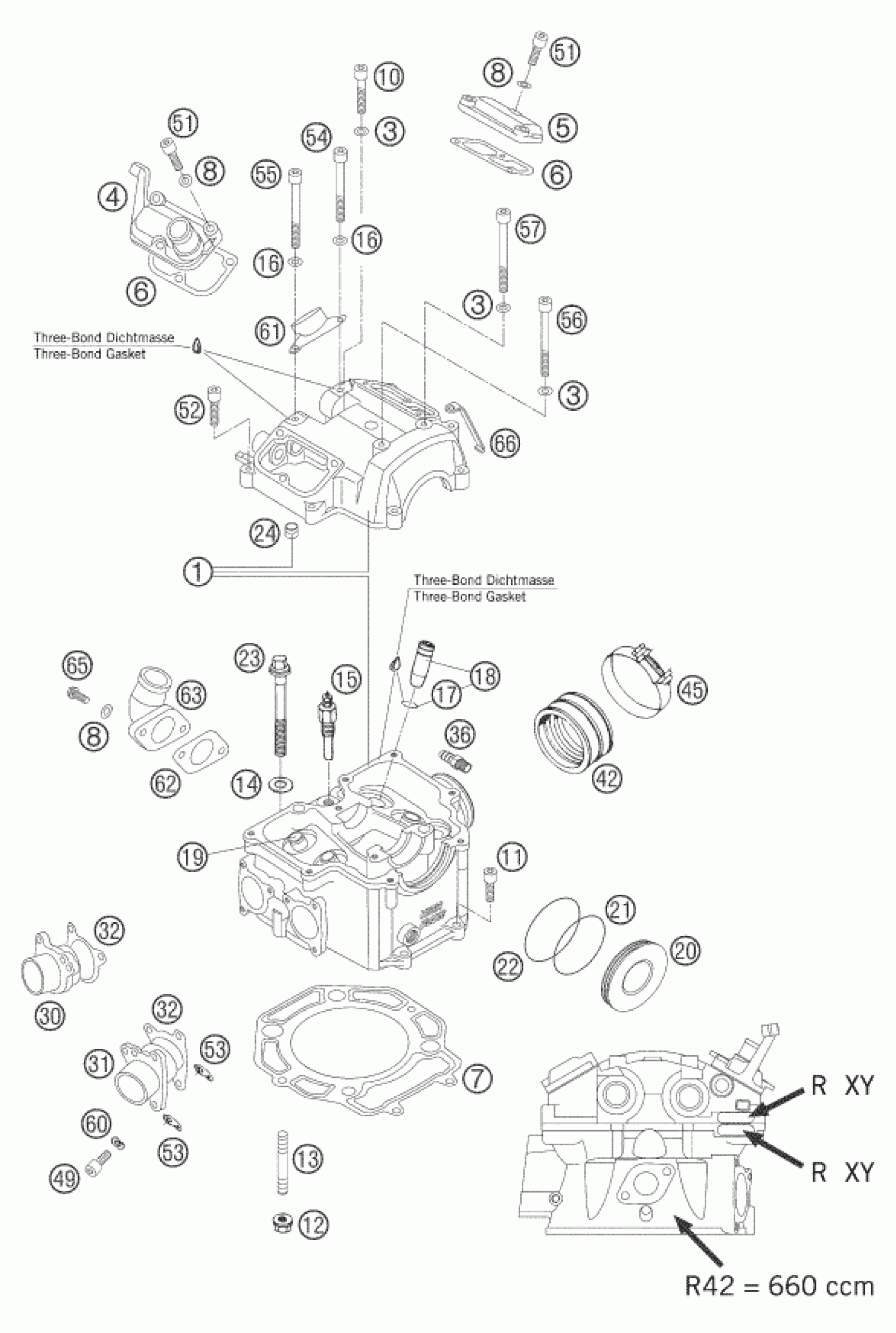

KTM 660 RALLY FACTORY REPLICA 2007 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDERHEAD CPL. GREY 2003

5853602030023

Unavailable

3

CU-SEAL RING 6 X 10 X 2

58036065100

Unavailable

4

VALVE COVER FRONT '99

58036152600

Unavailable

5

VALVE COVER REAR

58036052200

Unavailable

6

VALVE COVER GASKET

58036053000

Unavailable

7

CYLINDER HEAD GASKET D=102 01

58530036100

Unavailable

8

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

10

AH SCREW DIN0912-M 6X35

0912060353

Unavailable

11

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

12

COLLAR NUT M8

49030028000

Unavailable

13

STUD DIN0835-M 8X40

54330043000

Unavailable

14

washer DIN 125 A 10.5

0125100003

Unavailable

15

TEMPERATURE SWITCH VDO

42011252000

Unavailable

16

CU-SEAL RING DIN7603- 7X12X2

0603070122

Unavailable

17

CIRCLIP DIN7993-RW12

0993012000

Unavailable

18

VALVE GUIDE INTAKE CPL.

58036026644

Unavailable

19

VALVE GUIDE EXHAUST CPL.

58036126644

Unavailable

20

PLUG COVER 2001

58536065000

Unavailable

21

O-RING 47,00X1,50 NBR 70

0770047015

Unavailable

22

O-RING 49,00X2,50 NBR

0770049025

Unavailable

23

COLLAR SCREW M10X80 WS=13 10.9

58036099100

Unavailable

24

DOWEL BUSHING 9,8X7,2X10

58530090000

Unavailable

30

EXHAUST FLANGE R/S RALLYE 2001

58536040000

Unavailable

31

EXHAUST FLANGE L/S RALLYE 2001

58536140000

Unavailable

32

EXHAUST FLANGE GASKET

58036041000

Unavailable

36

VACUUM CONNECTION M 6X1

58336020090

Unavailable

42

INTAKE BOOT RALLYE 2001

58536044000

Unavailable

45

CLAMP D=56MM B=9MM M4X25

59030061000

Unavailable

49

AH SCREW DIN0912-M 6X16

0912060163

Unavailable

51

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

52

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

53

RETAINING PLATE

51005074000

Unavailable

54

AH SCREW DIN0912-M 7X55 12.9

0912070551

Unavailable

55

AH SCREW DIN0912-M 7X60 12.9

0912070601

Unavailable

56

SHCS DIN 912 M6x65

0912060653

Unavailable

57

AH SCREW DIN0912-M 6X70

0912060703

Unavailable

60

spring washer DIN 137 B - 6

0137060003

Unavailable

61

STICK COIL HOLDER 2001

58539010000

Unavailable

62

GASKET FOR CONNECTING ANGLE

56535106000

Unavailable

63

CONNECTING ANGLE

56535006000

Unavailable

65

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

66

RETAINING PLATE

58530005050

Unavailable
