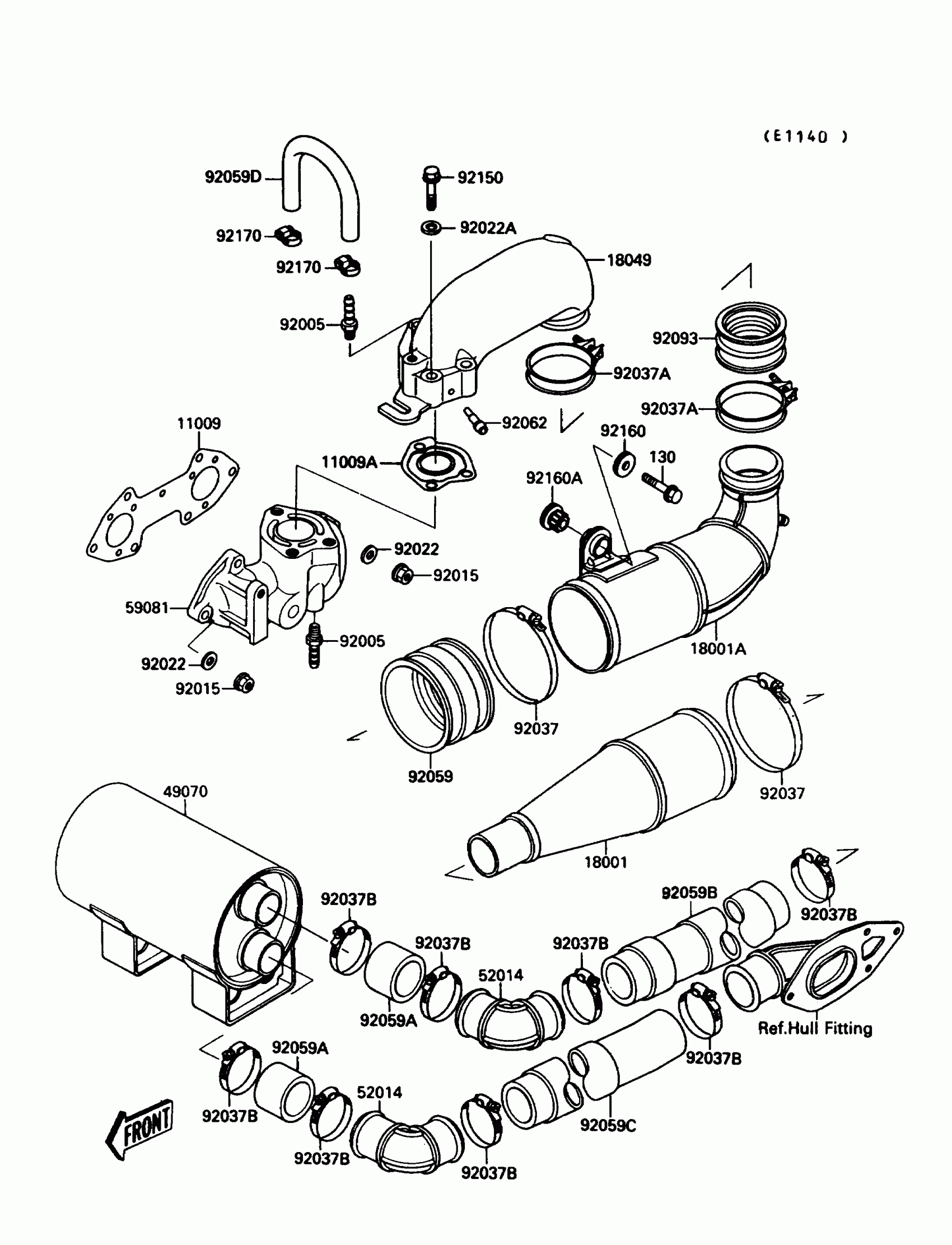

Kawasaki 650 SX Muffler(s) Diagram

#

Description
Price

11009

GASKET,EXHAUST MANIFOLD

11009-3722

Unavailable

11009A

GASKET,EXHAUST PIPE

11009-3723

Unavailable

18001

MUFFLER,BODY

18001-3716

$160.70

18001A

MUFFLER

18001-3720

$422.33

18049

PIPE-EXHAUST

18049-3711

$174.35

49070

MUFFLER-COMP

49070-3710

$158.76

52014

ELBOW

52014-3702

Unavailable

59081

MANIFOLD-EXHAUST

59081-3702

Unavailable

92005

FITTING,HOSE

92005-3001

$10.71

92015

NUT,FLANGED,8MM

92015-3709

$4.01

92022

WASHER,10.2X20X1.5

92022-3742

$3.33

92022A

WASHER,8.2X18X1.5

92022-3743

$3.36

92037

CLAMP,MAX120.7MM

92037-3733

Unavailable

92037A

CLAMP,68MM

92037-3740

$11.57

92037B

CLAMP

92037-504

$10.76

92037C

CLAMP

92037-509

$4.88

92059

TUBE,9X16X200

92059-3748

Unavailable

92059A

TUBE,MUFFLER CONNECTING

92059-3767

Unavailable

92059B

TUBE

92059-3807

Unavailable

92059C

TUBE

92059-3808

Unavailable

92059D

TUBE

92059-3809

Unavailable

92062

NOZZLE

92062-3705

$7.01

92093

SEAL

92093-3705

Unavailable

92160

DAMPER,MUFFLER

92160-3701

Unavailable

92160A

DAMPER,MUFFLER MOUNT

92160-3702

$7.81

130

BOLT-FLANGED

130Y1050

Unavailable

130A

BOLT-FLANGED

130Z0845

Unavailable
