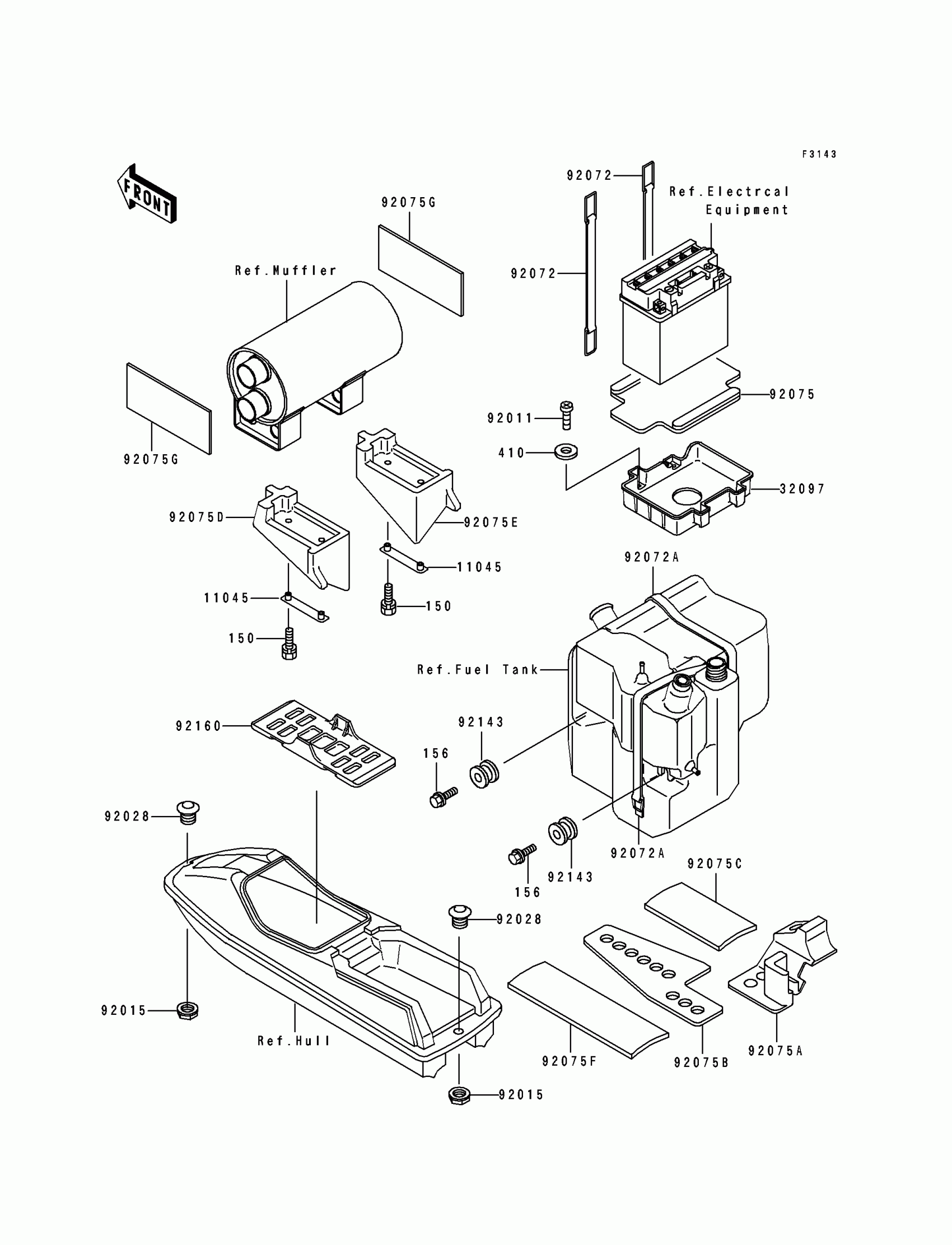

Kawasaki 650 SX Hull Fitting Diagram

#

Description
Price

11045

BRACKET

11045-3764

Unavailable

32097

CASE-BATTERY

32097-3702

Unavailable

92011

SCREW,TAPPING

92011-561

Unavailable

92015

NUT

92015-3779

$7.59

92028

BUSHING

92028-3734

$7.59

92072

BAND,BATTERY,L=366

92072-3706

$35.97

92072A

BAND,L=544

92072-3709

Unavailable

92075

DAMPER,BATTERY

92075-3714

Unavailable

92075A

DAMPER,FUEL TANK,RR

92075-3754

Unavailable

92075B

DAMPER,FUEL TANK,CNT

92075-3755

Unavailable

92075C

DAMPER,FUEL TANK,RH

92075-3756

Unavailable

92075D

DAMPER

92075-3763

$104.02

92075E

DAMPER

92075-3764

$152.77

92075F

DAMPER,FUEL TANK

92075-521

Unavailable

92075G

DAMPER,MUFFLER

92075-522

Unavailable

92143

COLLAR

92143-3705

$8.81

92160

DAMPER

92160-3711

Unavailable

150

BOLT-WS,6X22

150R0622

$4.15

156

BOLT-WP,6X22

156R0622

$3.66

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68
