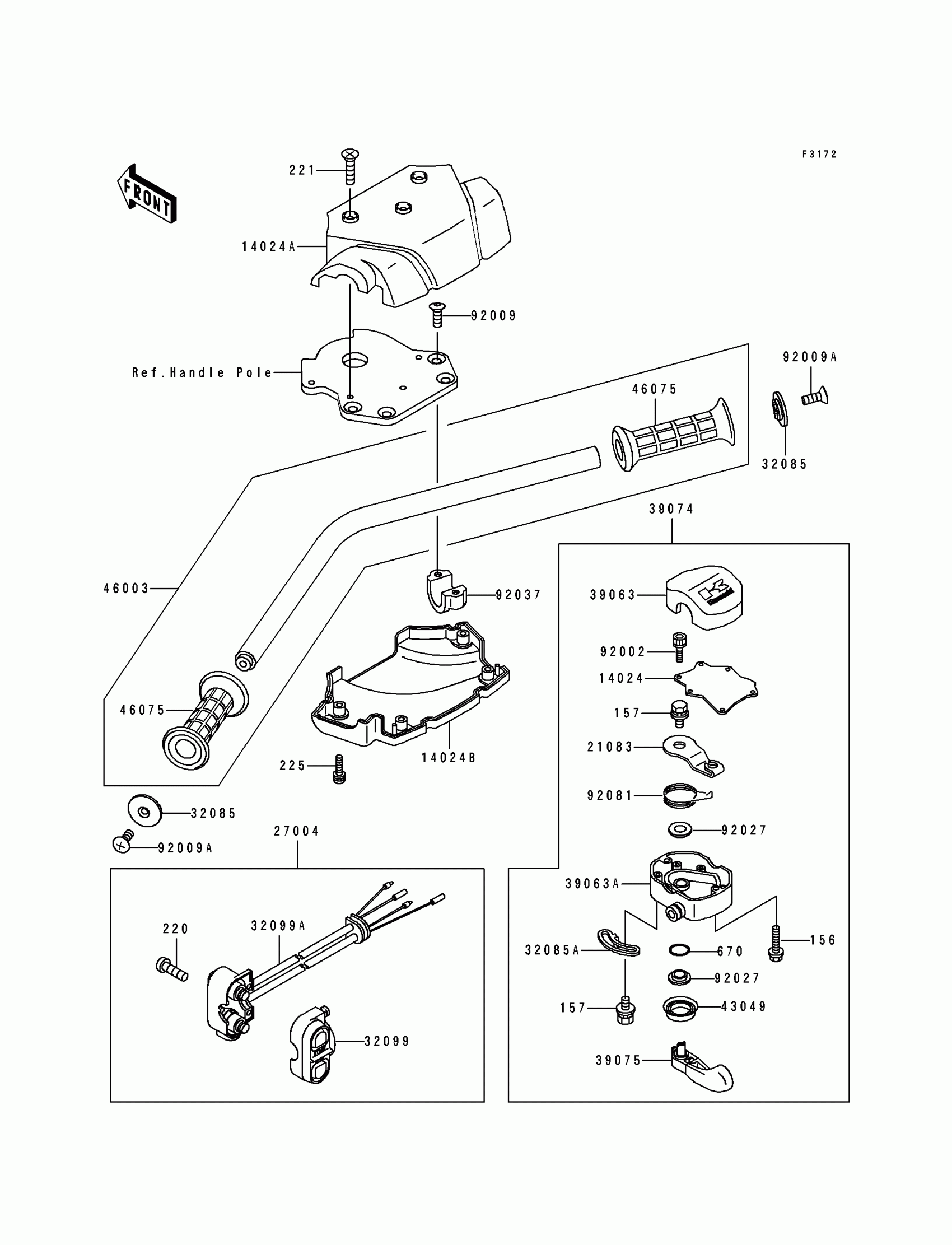

Kawasaki 650 SX Handlebar(&NAMI.KAW64650 91) Diagram

#

Description
Price

14024

COVER,THROTTLE LEVER

14024-3701

Unavailable

14024A

COVER,UPP

14024-3723

Unavailable

14024B

COVER,LWR

14024-3724

Unavailable

21083

ARM,THROTTLE LEVER

21083-3701

$14.81

27004

SWITCH-ASSY

27004-3705

$327.85

32085

STOPPER

32085-3705

$4.29

32085A

STOPPER

32085-3709

Unavailable

32099

CASE,FR,SWITCH

32099-3721

$69.55

32099A

CASE,RR,SWITCH

32099-3723

$245.16

39063

HOUSING-CONTROL,UPP

39063-3703

Unavailable

39063A

HOUSING-CONTROL,LWR

39063-3707

Unavailable

39074

LEVER-ASSY-THROTTLE

39074-3711

$231.05

39075

LEVER-THROTTLE

39075-3704

Unavailable

43049

PACKING,THROTTLE LEVER

43049-3701

$7.56

46003

HANDLE

46003-3711

$221.84

46075

GRIP,HANDLEBAR

46075-3713

Unavailable

92002

BOLT,SOCKET,3X10

92002-3751

$4.80

92009

SCREW,8X22

92009-3701

$5.96

92009A

SCREW,6X16

92009-3703

$3.43

92027

COLLAR,THROTTLE LEVER

92027-3704

Unavailable

92037

CLAMP,HANDLEBAR

92037-503

$15.14

92081

SPRING,THROTTLE LEVER RETURN

92081-3702

$5.66

156

BOLT-WP,5X25

156R0525

Unavailable

157

BOLT-WSP,5X12

157R0512

Unavailable

220

SCREW-PAN-CROS,5X30

220R0530

$4.32

221

SCREW-CSK-CROS,6X16

221R0616

$1.24

225

SCREW-PAN-WSP-CROS,5X20

225R0520

$4.14

670

O RING,8MM

670B1508

$1.17
