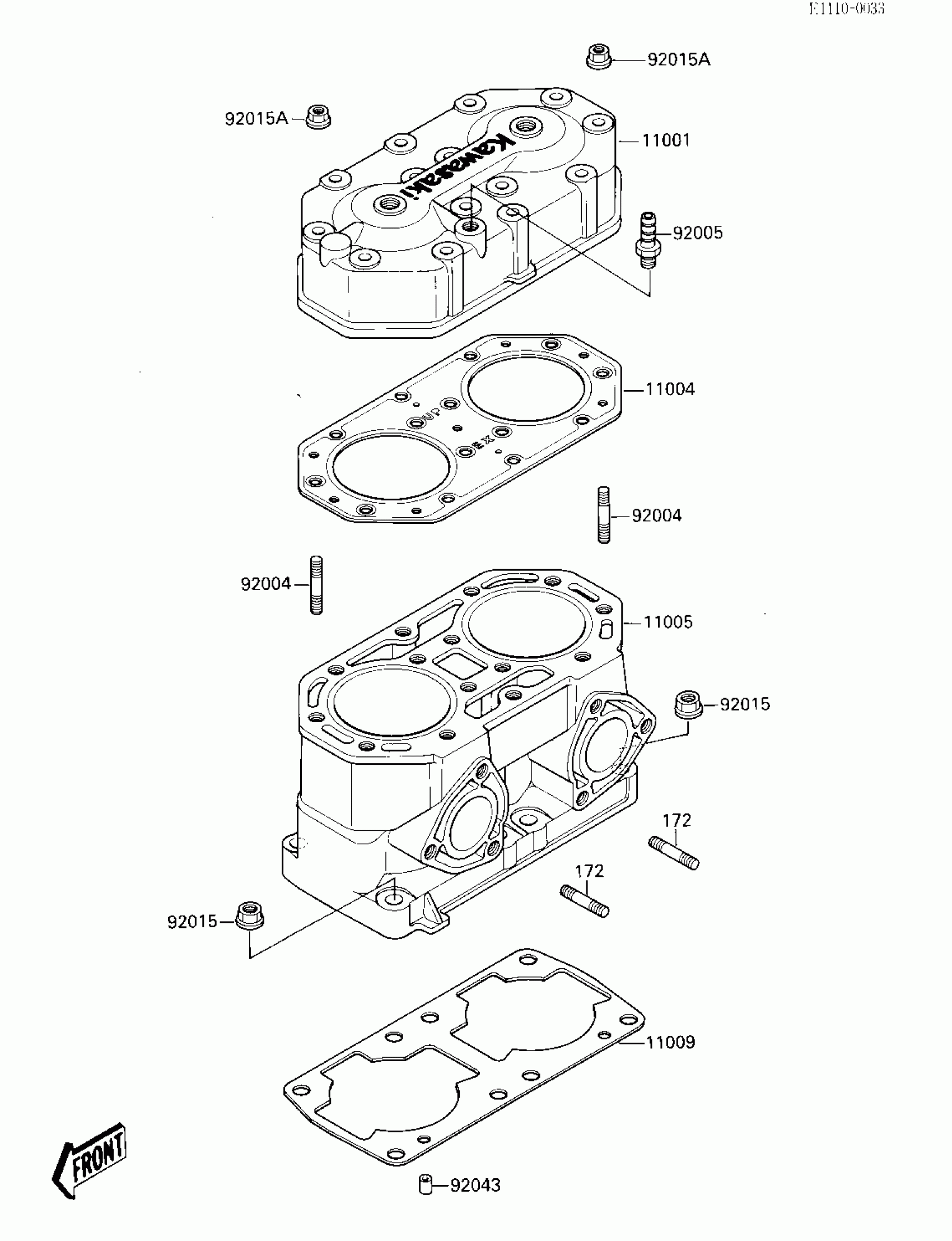

Kawasaki 650 SX CYLINDER HEAD/CYLINDER Diagram

#

Description
Price

11001

HEAD-CYLINDER

11001-3710

Unavailable

11004

GASKET-HEAD

11004-3710

$56.66

11005

CYLINDER-ENGINE

11005-3708

Unavailable

11009

GASKET,CYLINDER BASE

11009-3775

$13.41

92004

STUD,8X43

92004-3715

$8.31

92005

FITTING,HOSE

92005-3001

$10.71

92015

NUT,10MM

92015-1649

$3.79

92015A

NUT,FLANGED,8MM

92015-3709

$3.85

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

172

BOLT-STUD,8X30

172R0830

$6.73
