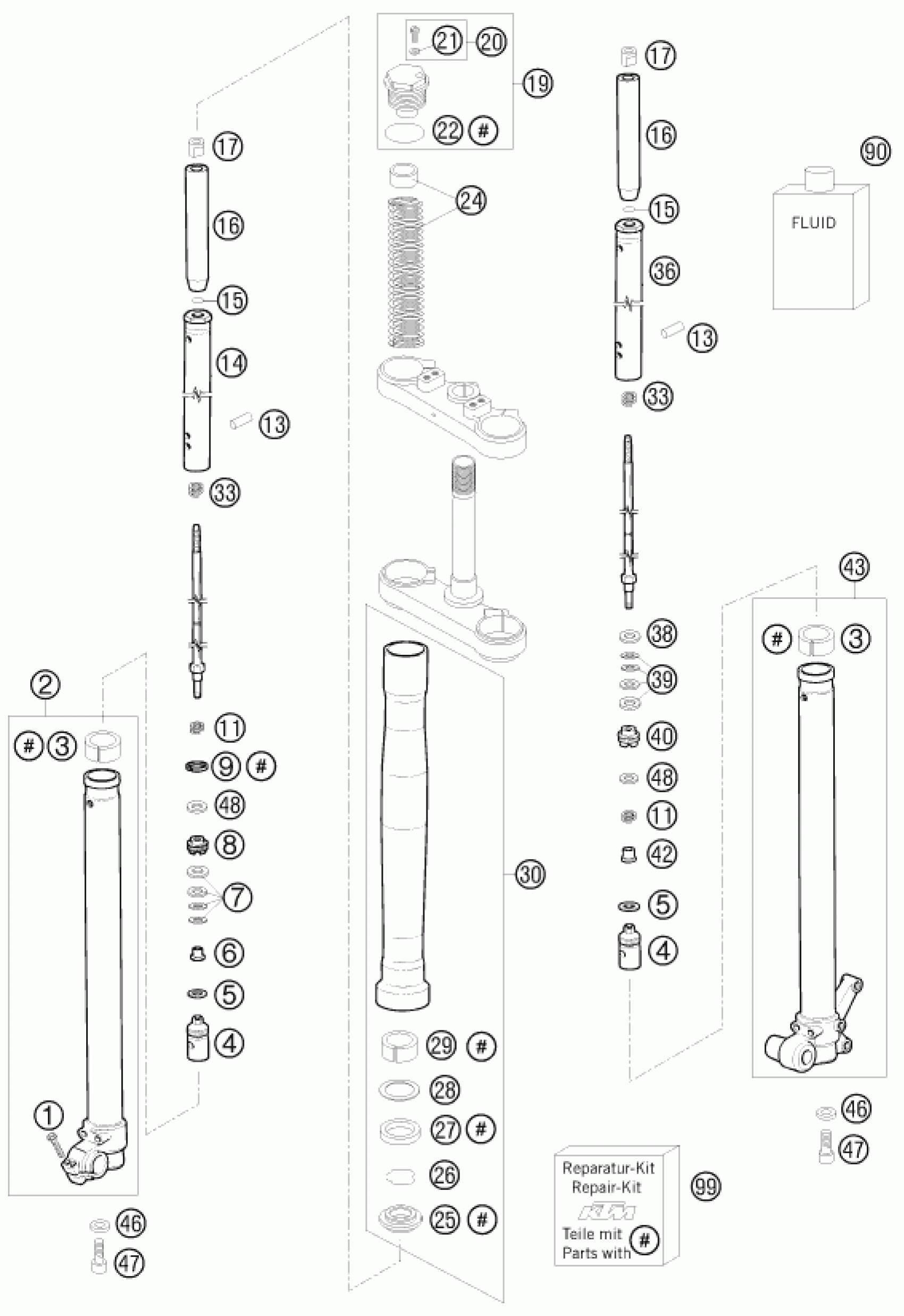

KTM 65 XC <2008> FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

HH collar screw M6x30 TX30

0025060306

Unavailable

2

SLIDER + AXLE CLAMP CPL. R/S

7819139/C

Unavailable

3

GUIDE RING D=35

7538029

Unavailable

4

FOOT VALVE

7717065/R

Unavailable

5

O-RING D=20,3

7528005

Unavailable

6

SPECIAL NUT M6X1 WITH STEP

7521092/D

Unavailable

7

REED VALVE 22X8,1X0,1

7517217

Unavailable

8

PISTON REBOUND D=26

7530097/B

Unavailable

9

PISTON RING D=26

7524163

Unavailable

11

LOWER REBOUND SPRING

75141087

Unavailable

13

PIN 8X30

75321033

Unavailable

14

TUBE BODY R/S

75181140/R

Unavailable

15

STOP RING 10X1

7523224

Unavailable

16

GUIDE BUSH 6,4X12X12

75181153

Unavailable

17

SPECIAL NUT

7521005

$3.97

19

PLUG CPL.

7701196

Unavailable

20

LENTIL HEAD SCREW M4X6

7850208AR

Unavailable

21

O-RING D=3,69, S=1,78

7528180

Unavailable

22

O-RING D=34,6, S=1,78

7528008

Unavailable

24

SPRINGS + PRELOAD SLEEVES KIT

7850728

Unavailable

25

DUST CAP

7533167

Unavailable

26

LOCK WASHER D=51,5

7523236

Unavailable

27

OIL SEAL 35X47X10

7528034

Unavailable

28

WASHER 36X47X3

7539032AA

Unavailable

29

GUIDE RING 35X15

7538038/A

Unavailable

30

OUTER TUBE CPL.

7760069FN/C

Unavailable

33

TOP REBOUND SPRING

7514077

Unavailable

36

TUBE BODY L/S

75181139/R

Unavailable

38

COMPRESSION DAMPING SHIM

7535099

Unavailable

39

SHIM 8,1X23X0,1

7517082

Unavailable

39

SHIM 8,1X21X0,2

7517057

Unavailable

39

SHIM 8,1X23X0,15

7517249

$0.63

40

PISTON COMPRESSION D=26

7530090/B

Unavailable

42

SPECIAL NUT M6X1 WITH STEP

7521147/A

Unavailable

43

SLIDER + AXLE CLAMP CPL. L/S

7819140/C

Unavailable

46

SHIM 8X12X1,5

7522061

Unavailable

47

AH SCREW DIN0912-M 8X25

0912080253

Unavailable

48

SHIM 8,1X23X0,3

7517044

Unavailable

90

FORKOIL EBH16 SAE 7.5

7550013

Unavailable

99

REPAIR-KIT USD 35

7850731/C

Unavailable

39

SHIM 8,1X22X0,2

7517248

$13.10
