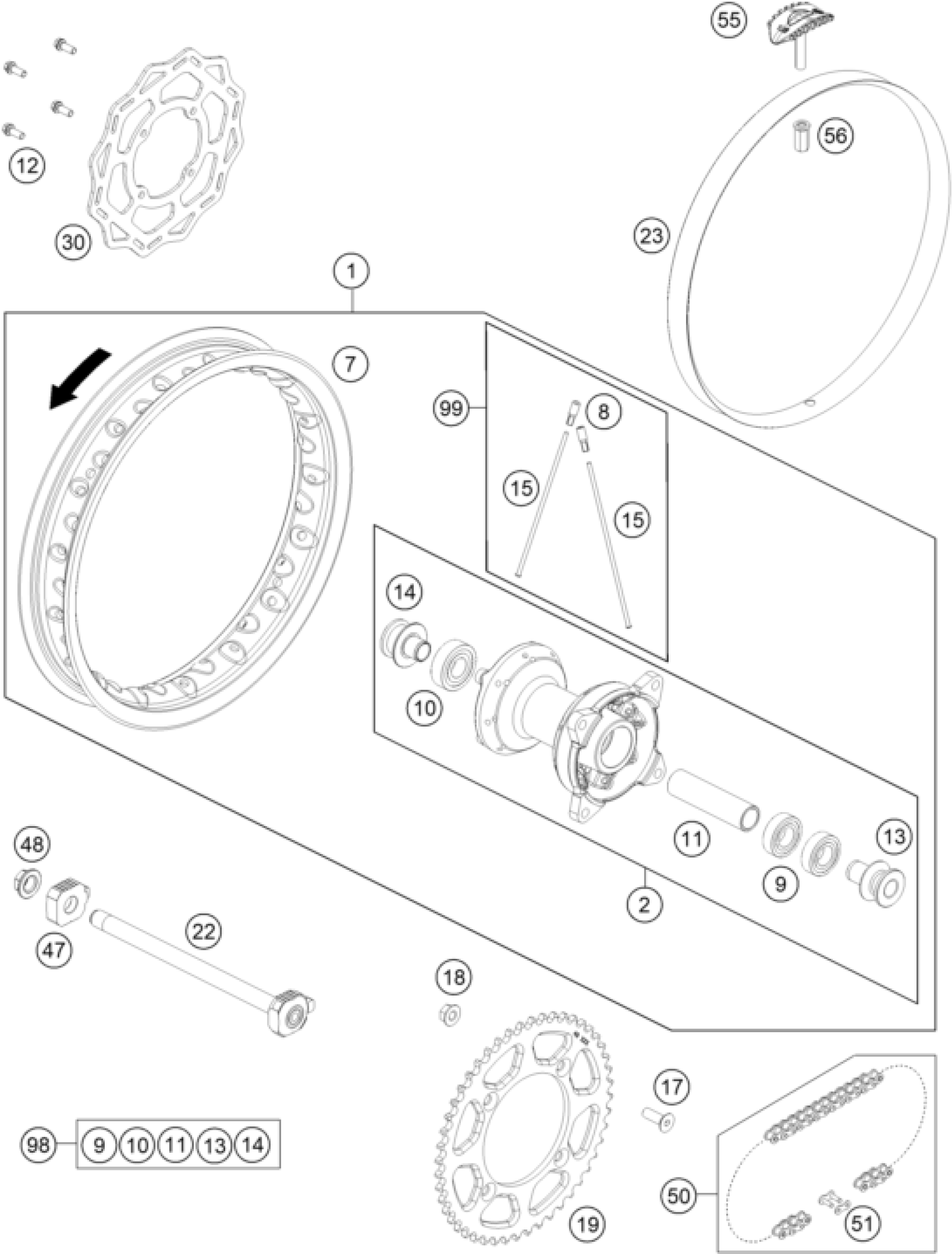

KTM 65 SX 2025 REAR WHEEL Diagram

#

Description
Price

1

Rear wheel 1.6x12`` cmpl.

A40510001144

Unavailable

2

Rear wheel hub cmpl.

A40510010144

Unavailable

7

RIM 1,6x12'

A40510070000

Unavailable

8

Spoke nipple M3,5

A40510072000

Unavailable

9

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

Unavailable

10

GR.BALL BEAR. 6203-2RSHC3HMTF

0625062032

Unavailable

11

Spacing tube rear

A4051001110

Unavailable

12

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

13

Spacer

A40510013100

Unavailable

14

Spacer

A40510013000

Unavailable

15

Spoke M3.5x125-12"

A40510071125

Unavailable

17

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

18

Self locking nut M8 10.9

54310086200

Unavailable

19

Rear sprocket 46Z SX65

A40510051046C1

Unavailable

19

Rear sprocket 48Z SX65

A40510051048C1

Unavailable

19

Rear sprocket 50Z SX65

A40510051050C1

Unavailable

22

AXLE REAR CPL. 2016

46310085044

Unavailable

23

Tube protector 12"

A40009073000

Unavailable

30

Brake disc 180x3mm

46210160000

Unavailable

47

CHAIN TENSIONER R/S

46310084000

Unavailable

48

hex nut M14x1.5 WS17

77204087000

Unavailable

50

chain 112 rollers

46310165112

Unavailable

51

Chain lock 1/2X1/4"

46310066000

Unavailable

55

Rim lock

A40510190000

Unavailable

56

Nut for rim lock

77110190050

Unavailable

98

Rear Wheel Rep. Kit

A40510015000

Unavailable

99

Spoke Set rear 12#

SPS112125AP0000

Unavailable

19

Rear sprocket 47Z SX65

A40510051047C1

Unavailable

19

Rear sprocket 49Z SX65

A40510051049C1

Unavailable
