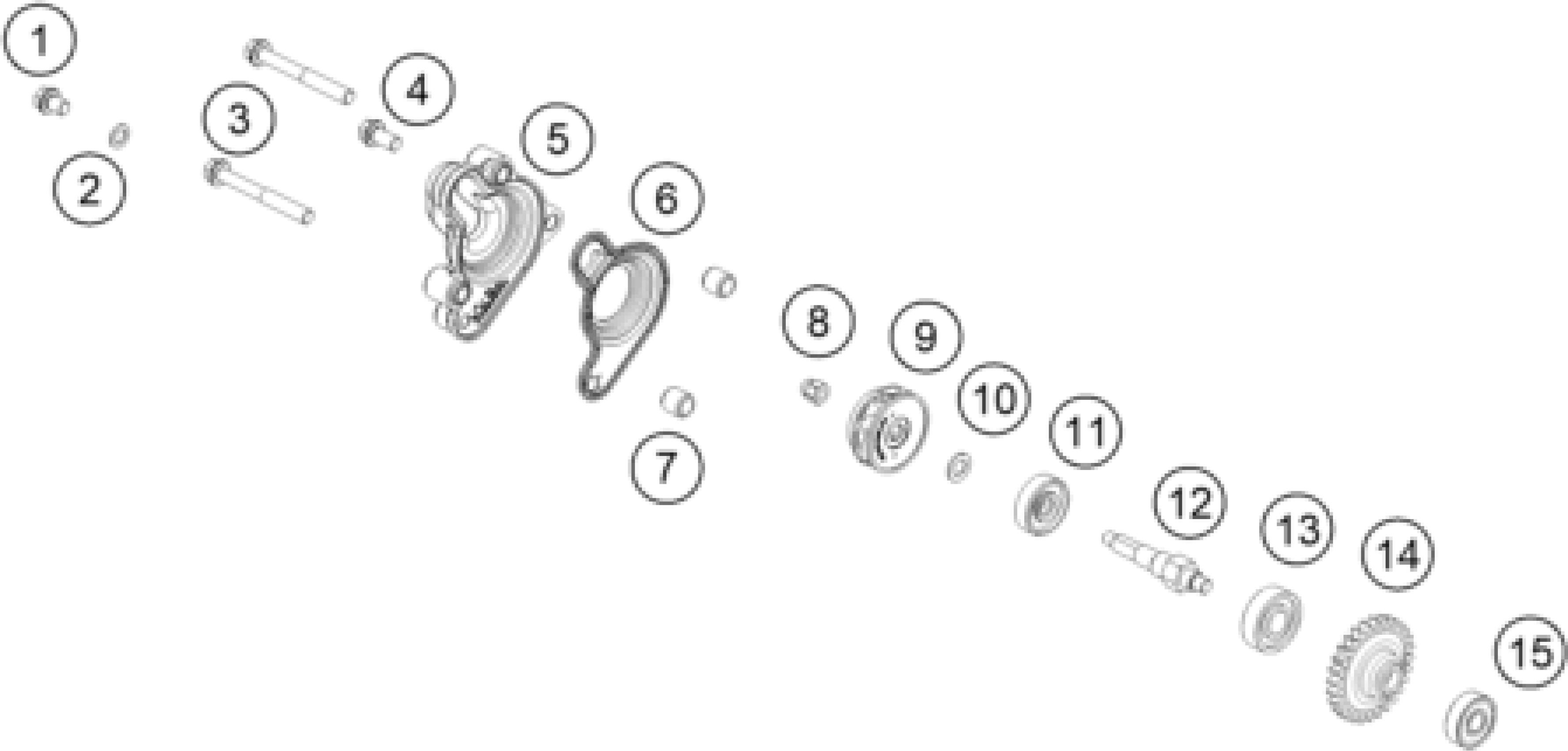

KTM 65 SX 2024 WATER PUMP Diagram

#

Description
Price

1

HH collar screw M6x8 TX30

0025060086

Unavailable

2

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

3

HH collar screw M6x55 TX30

0025060556

Unavailable

4

HH collar screw M6x12 TX30

0025060126

Unavailable

5

Water pump cover

A40035052000

Unavailable

6

Gasket with carrier plate

A40035053000

Unavailable

7

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

8

Cap nut M5 DIN 1587

0015870501000

Unavailable

10

PREFORMED WASHER

50435049000

Unavailable

11

SHAFT SEAL RING 8X24X7 A DUO

0760082472

Unavailable

12

Water pump shaft, loose

A40035054050

Unavailable

13

BALL BEARING 6000/C3

0625060001

Unavailable

14

DRIVE WHEEL

45235054028

Unavailable

15

Ball bearing 696 DDM1 C3

0625006065

Unavailable

9

WATER PUMP WHEEL CPL.

79235055044

Unavailable
