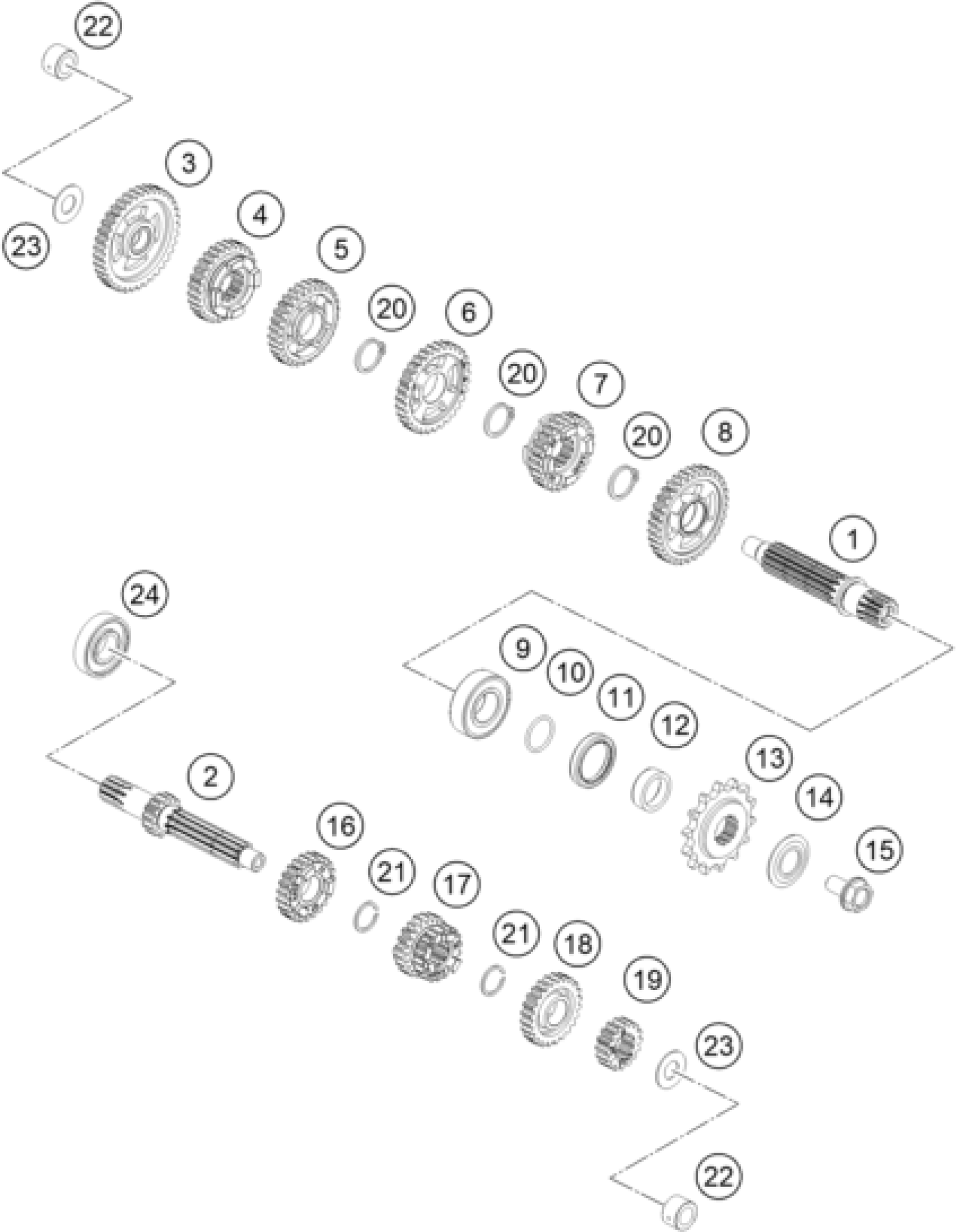

KTM 65 SX 2024 TRANSMISSION Diagram

#

Description
Price

1

Countershaft

A40533010000

Unavailable

2

Main shaft

A40533001000

Unavailable

3

Idle gear, 1st gear

A40533011000

Unavailable

4

Sliding gear, 5th gear

A40533015000

Unavailable

5

Idle gear, 4th gear

A40533014000

Unavailable

6

Idle gear, 3rd gear

A40533013100

Unavailable

7

Sliding gear, 6th gear

A40533016000

Unavailable

8

Idle gear, 2nd gear

A40533012000

Unavailable

9

Grooved ball bearing 20X42X12

46033028000

Unavailable

10

O-RING 20X2 VITON

0770020020

Unavailable

11

SHAFT SEAL RING 26X35X6BSL NB

0760263561

Unavailable

12

DISANCESPACER F. SPROCKET

46233030000

Unavailable

13

CHAIN SPROCKET 14-T.

A40533029014

Unavailable

14

Spring washer 17,2x35x1,5

47233034000

Unavailable

15

HH COLLAR SCREW M10X18 10.9

59033029000

Unavailable

16

Idle gear, 5th gear

A40533005000

Unavailable

17

Sliding gear 3/4 gear

A40533003000

Unavailable

18

Idle gear, 6th gear

A40533006000

Unavailable

19

Fixed gear, 2nd gear

A40533002000

Unavailable

20

Circlip, DIN 471 d5 AS20 x 1.7

0710002217500

Unavailable

21

Circlip, SW=17x1.2

0710001612000

Unavailable

22

NEEDLE BUSH NK1212

0618121912

Unavailable

23

Stop disk 12.1x25x1

0690001200100

Unavailable

24

Grooved ball bearing 6203 W9 J

0625982031

Unavailable

13

CHAIN SPROCKET 13-T.

A40533029013

Unavailable
