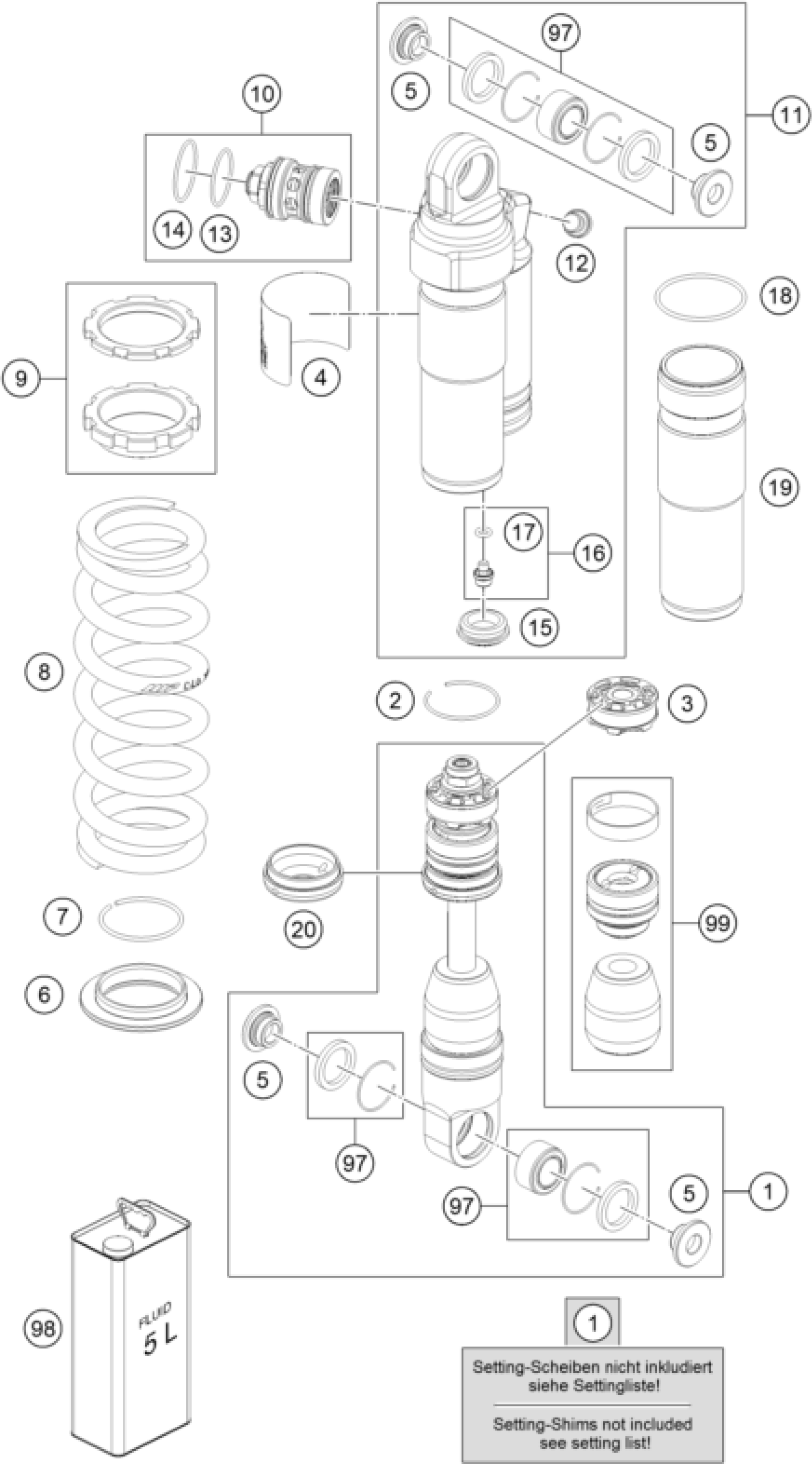

KTM 65 SX 2024 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

bottom part cpl.

S421400000S0101

Unavailable

4

Sticker XACT 65SX

52000222

Unavailable

5

Distance bush 10x15/18/24,5x9,

46180009

Unavailable

6

Spring retainer 41,15x61,7x12.

S82900001300001

Unavailable

7

round wire circlip 42.6x2

S23900000300000

Unavailable

8

Mainspring (47) 40-190.0 shock

S81980001000028

Unavailable

8

Mainspring (47) 45-190.0 shock

S81980001100028

Unavailable

8

Mainspring (47) 50-190.0 shock

S81980001200028

Unavailable

10

compression cpl.

50181101S60

Unavailable

9

ADJUSTING NUT CPL.

36120418S

Unavailable

11

Shock 65 SX/TC/MC Top

S453600001S0001

Unavailable

12

HS cylinder-head screw R1/8 l8

50180095

Unavailable

14

O-ring 27x1,5 Viton70 green IS

50180217

Unavailable

15

Rubber cap do not open 22x5,5

46811208

Unavailable

16

PLUG SCREW M5X6 CPL.

36120151S

Unavailable

17

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

97

Ball joint bearing kit top 12m

R12012T

Unavailable

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

Repair kit shock absorber 65 S

RP10057T

Unavailable

8

Mainspring (47) 35-190.0 shock

S81980000900028

Unavailable

8

Mainspring (47) 30-190.0 shock

S81980000800028

Unavailable

13

O-ring 25x1,5 Viton70

50180218

Unavailable

2

Round-wire snap ring 38x1,5

40540015

Unavailable

3

Piston 10,5x35,6x13,65 3,5/5,5

36120071

Unavailable

19

Rohr 36x138

S46360000000000

Unavailable

20

Cover 36,12x5,5 h13 red

36140001

Unavailable

18

O-ring 42x2 NBR70

48600819

Unavailable
