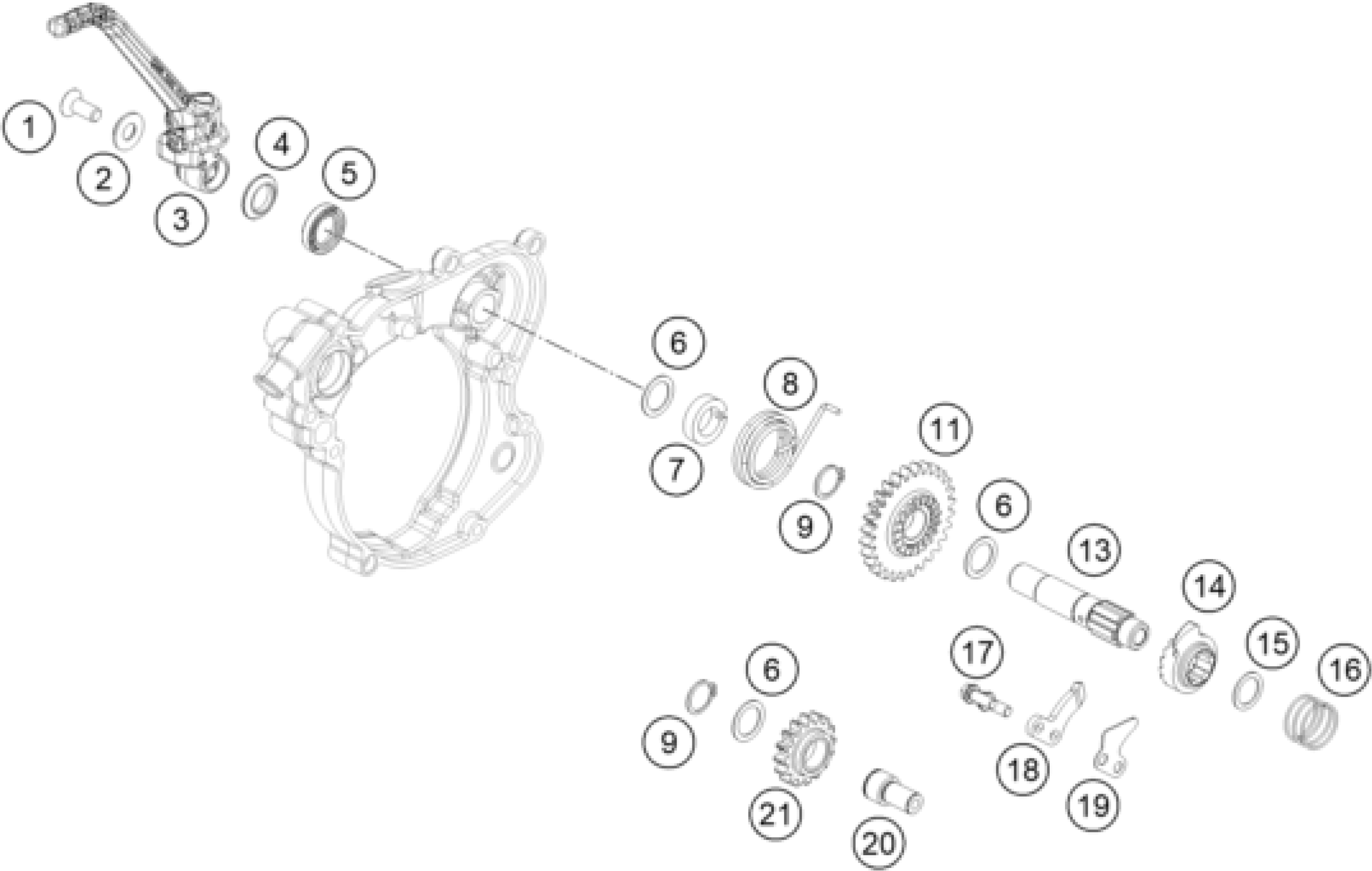

KTM 65 SX 2024 KICK STARTER Diagram

#

Description
Price

1

COUNTER-SUNK SCREW ISA45 M8X20

0019080206

Unavailable

2

WASHER 8MM GALVANIZED

54633037000

Unavailable

3

Kick-starter system complete

A40533070044

Unavailable

4

SPACER SLEEVE

46233038000

Unavailable

5

SHAFT SEAL RING 17X28X6B NBR

0760172860

Unavailable

6

STOP DISK 17,2X24X1

50333030000

Unavailable

7

DRIVING HUB 125/200'98

50333055000

Unavailable

8

KICKSTARTER SPRING 2,6MM '98

50333054000

Unavailable

9

CIRCLIP DIN0471-17X1

0471170010

Unavailable

11

KICKSTART. GEAR 28-T 05

77033051000

Unavailable

13

KICKSTARTER SHAFT 125/200'98

50333050000

Unavailable

14

KICKSTARTER RATCHET

50333052000

Unavailable

15

THRUST WASHER DIN0988-16X22X1

0988162210

Unavailable

16

SPRING 1,4MM '98

50333056000

Unavailable

17

HH collar screw M6x16 TX30

0025060166

Unavailable

18

STOP MET.SHEET 4MM 125/200'98

50333069000

Unavailable

19

COVER PLATE

46233069001

Unavailable

20

BEARING PIN IDLER GEAR

46233018000

Unavailable

21

INTERMEDIATE STARTING GEAR

46233053016

Unavailable
