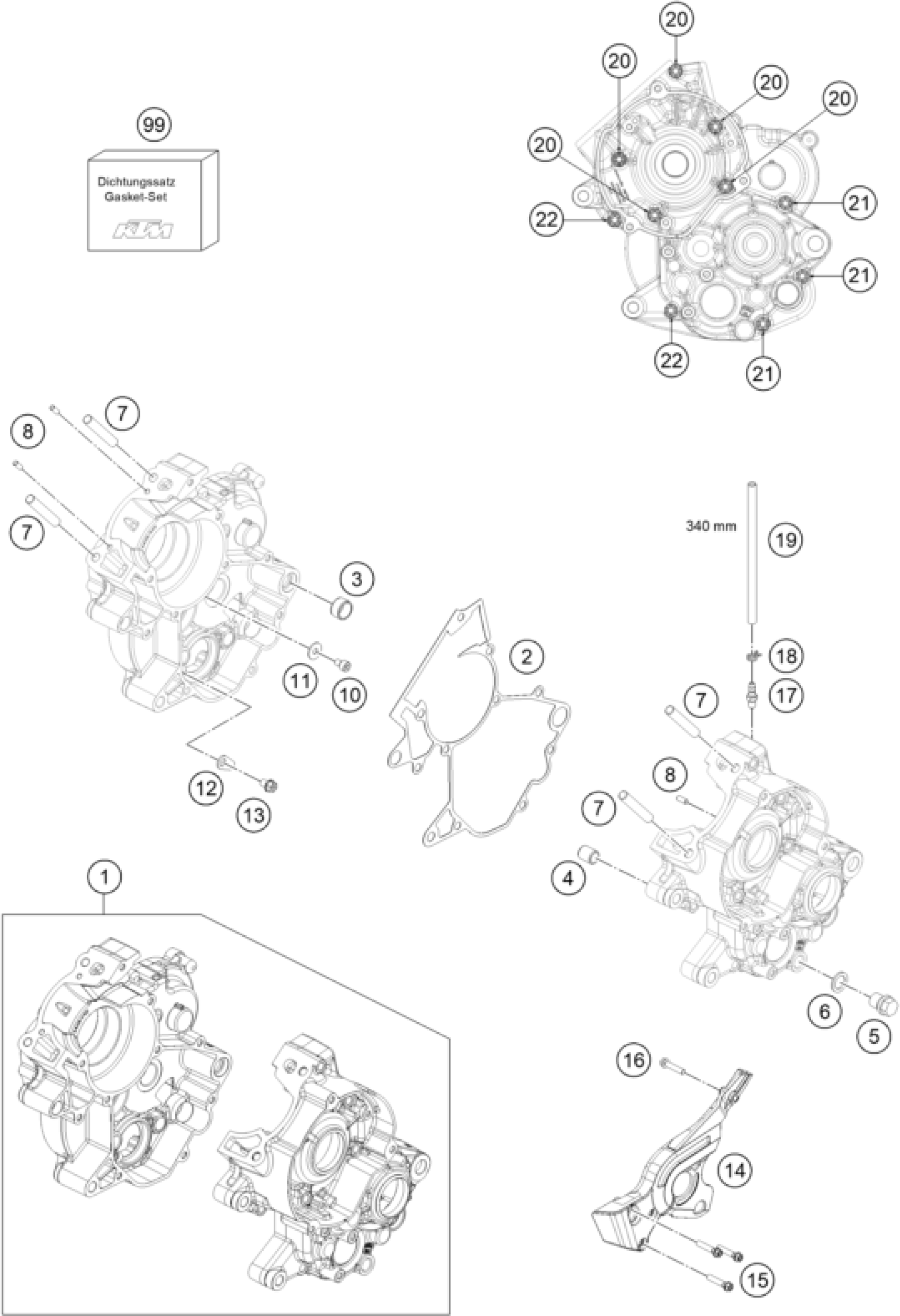

KTM 65 SX 2024 ENGINE CASE Diagram

#

Description
Price

1

Motor Housing cpl. with bearin

A40530000044

Unavailable

20

HH collar screw M6x55 TX30

0025060556

Unavailable

21

HH collar screw M6x30 TX30

0025060306

Unavailable

22

HH collar screw M6x40 TX30

0025060406

Unavailable

2

ENGINE CASE GASKET

46230039000

Unavailable

19

PVC-HOSE 4X6MM

31007007101

Unavailable

18

YDNAC-CLAMP 10068 (6,8MM)

45230089000

Unavailable

17

VACUUM CONECTION M6/3MM '97

58336020190

Unavailable

7

STUD DIN 835 M8X32

0835080326

Unavailable

12

RETAINING PLATE

54634049000

Unavailable

13

Hex collar screw M6x10 ISA30 S

0025060106S

Unavailable

4

DOWEL 12X9X14,5

46230024000

Unavailable

3

DOWEL 17 X 14 X 9,5

58330023000

Unavailable

5

oildrain plug with magnet

58030021100

Unavailable

6

CU-seal ring DIN7603-12X18X1.5

58038022000

Unavailable

8

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

10

SHCS DIN 912 M5x8

0912050083

Unavailable

11

washer DIN 9021 A - 5.3

0021050003

Unavailable

99

Engine gasket kit 65

A40530099000

Unavailable

15

HH collar screw M6x30 TX30

0025060306

Unavailable

16

HH collar screw M8x35 TX40

0025080356

Unavailable

14

Front sprocket cover

A40503096000

Unavailable
