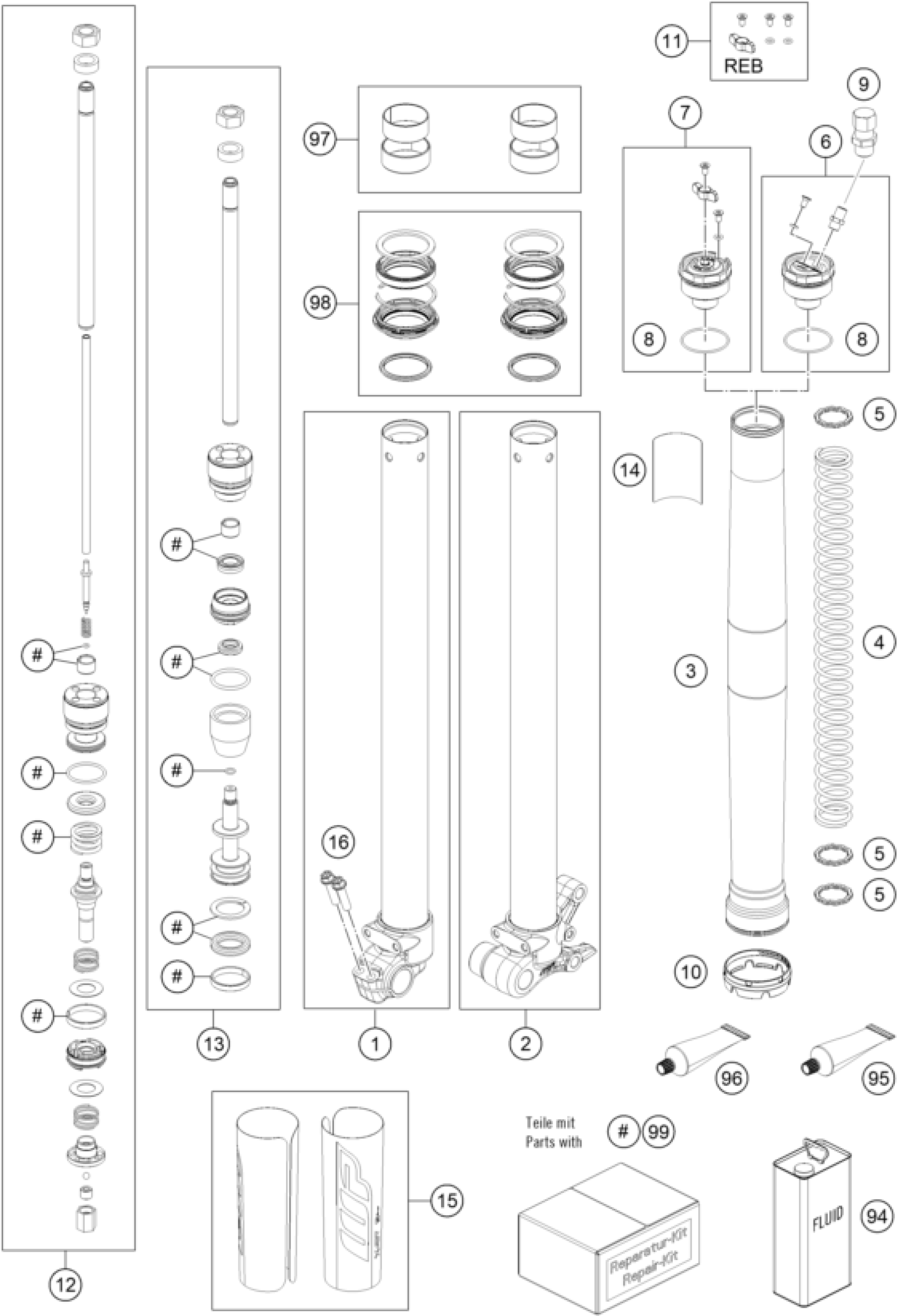

KTM 65 SX 2023 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Axle-clamp right cpl. 65SX

S443500003S0100

Unavailable

2

Axle-clamp left cpl. 65SX

S443500000S0100

Unavailable

3

Fork outer tube 36x465 dt42 db

35480586

Unavailable

4

SPRING 2,8N/MM D3,6 SET

95010044S

Unavailable

4

SPRING 3,0 N/MM SET

95010057S

Unavailable

5

Washer 22x30x2,5

35480497

Unavailable

6

Screw cap M38x1,5 air d42 cpl.

35480599S

Unavailable

7

Screw cap M38x1,5 d42 cpl.

35480600S

Unavailable

8

O-ring 35x1,5 NBR70 yellow

46180581

Unavailable

9

Schrader valve M8x1 cmpl.

48601494S

Unavailable

10

Fork protection ring 48,4mm

35480623

Unavailable

11

Adjuster kit screw cap

RP10021

Unavailable

12

Piston rod cmpl. right

35480546S3

Unavailable

13

Piston rod cmpl. left

35480546S4

Unavailable

14

Sticker warning 60x40

52000314

Unavailable

15

Sticker set XACT AER 142x171

52000227SET

Unavailable

16

HH collar screw M6x25 TX30

0025060256

Unavailable

94

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

95

Fuchs grease IPR (250g)

T14034

Unavailable

96

special grease AER Fork 400g

00062010053

Unavailable

97

BUSHING KIT 35MM

RP10006

Unavailable

98

gasket kit 35mm black

RP10027T

Unavailable

99

REPAIR KIT 50+65SX AIR 2017

RP10008

Unavailable
