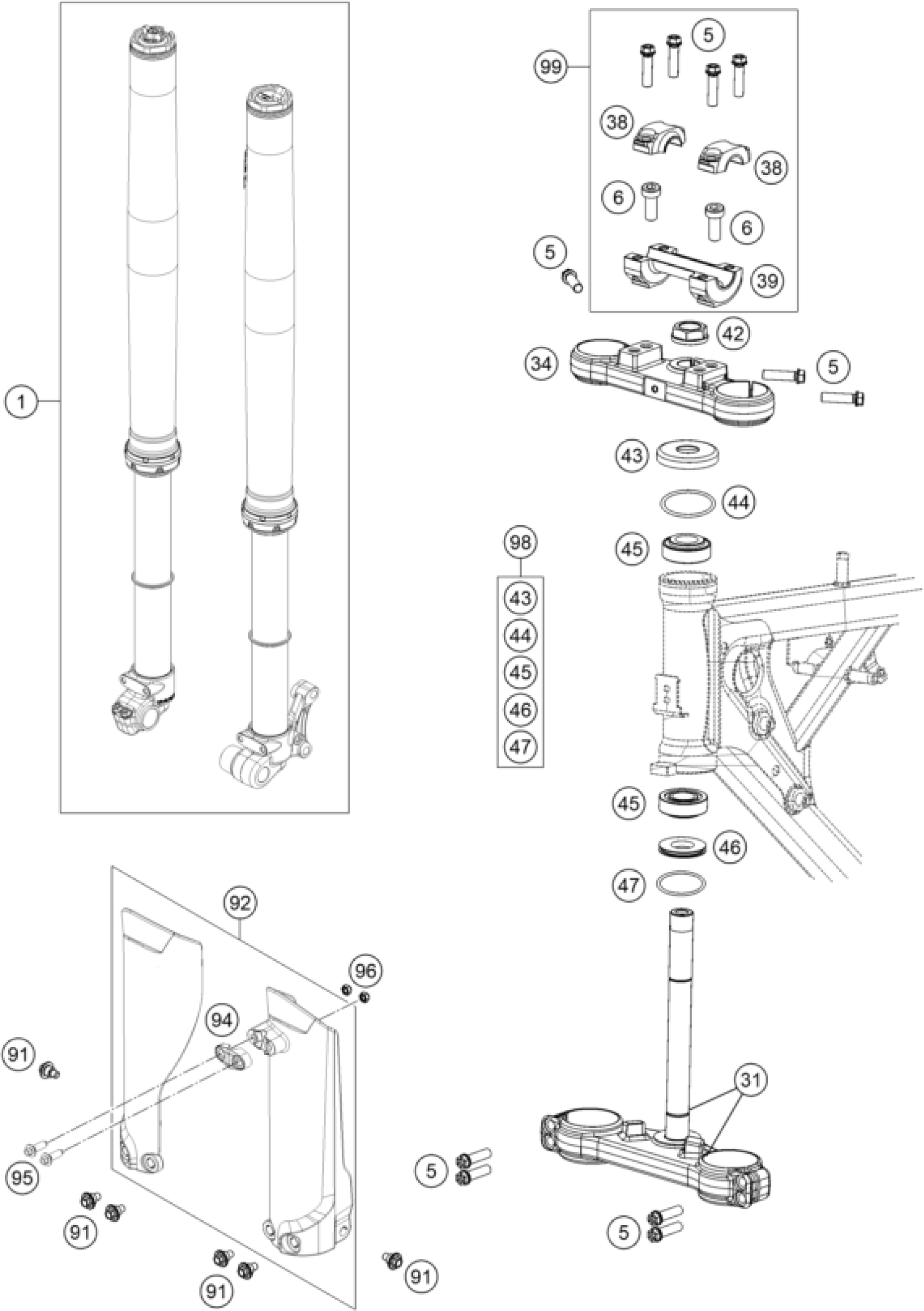

KTM 65 SX 2020 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork 65 SX/TC 20

07186T0301

Unavailable

5

HH collar screw M8x30

0025080306

Unavailable

6

AH collar screw M10x25 ISA45

0032100256S

Unavailable

31

BOT.FORK PLATE CPL.

46201032022

Unavailable

34

TOP TRIPLE CLAMP

45201034022

Unavailable

38

HANDLEBAR CLAMP D=22MM 2001

50301038000

Unavailable

39

HANDLEBAR SUPPORT 50SX D=22MM

45201039000

Unavailable

42

HH NUT M20X1,5 WS=27 RIGHT

59030029000

Unavailable

43

COVERING CAP

49001086000

Unavailable

44

O-RING 49,00X2,50 NBR

0770049025

Unavailable

45

TAPERED ROLLER BEARING 32004X

49001081000

Unavailable

46

PROTECTION RING 20,1X39X5

46001086000

Unavailable

47

O-RING 36,00X3,00 NBR

0770360030

Unavailable

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

92

Fork protection kit 50 65 20

46301094000ABA

Unavailable

94

Clamp brake hose

46301085000AB

Unavailable

95

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

96

Self locking nut DIN 985 M5

0985050003

Unavailable

98

STEARING HEAD REP. KIT MINI

00050000931

Unavailable

99

HANDLEBAR SUPPORT KIT 50SX '12

00050000925

Unavailable
