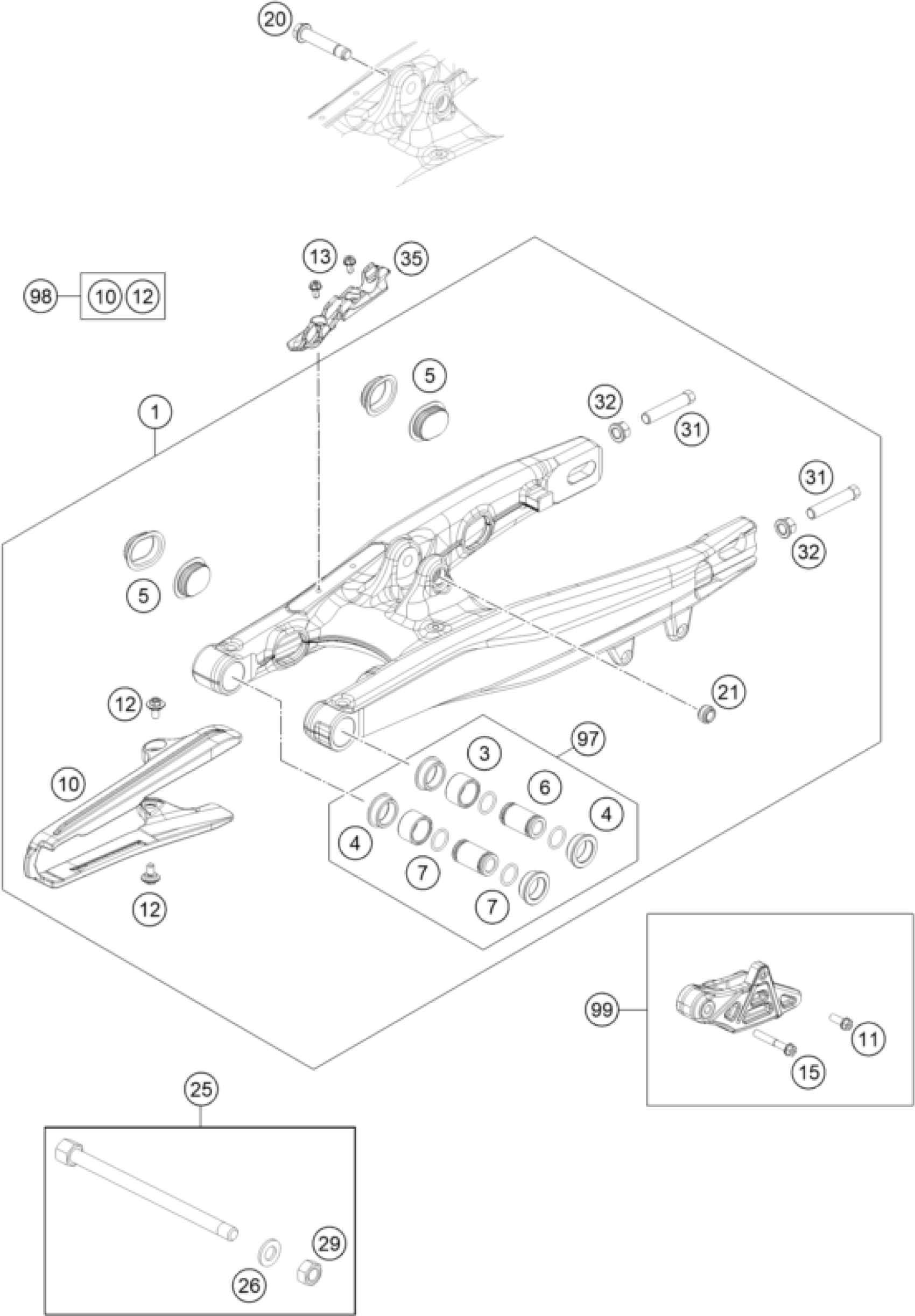

KTM 65 SX 2018 SWING ARM Diagram

#

Description
Price

1

SWING ARM CPL. 65 SX 2016

46304030044

Unavailable

3

Needle bushing HK 2016 / 20x26

54603097000

Unavailable

4

Spacer bushing 20X26X30X9.7

46004030070

Unavailable

5

Locking cap swingarm

77204041000

Unavailable

6

Bearing bush 12x20x36.5

46004030071

Unavailable

7

O-ring 16x2 Viton 75

0770160021

Unavailable

10

CHAIN SLID. GUARD

46304066000

Unavailable

11

HH collar screw M6x16 TX30

0025060166

Unavailable

12

special screw M6x12x3

83008000012

Unavailable

13

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

15

HH collar screw M6x40 TX30

0025060406

Unavailable

20

HH collar screw M10x52 WS13

77204089000

Unavailable

21

ADAPTOR NUT M10

69004095000

Unavailable

25

SWINGARM BOLT CPL. 201MM

46204037033

Unavailable

26

FLAT WASHER DIN0125-A13

0125120003

Unavailable

29

Nut M12x1 h10 WAF19 DIN 934

0934120103

Unavailable

31

HH SCREW M8X40 WS=10

50203030090

Unavailable

32

flanged nut M8 WS10

46030045000

Unavailable

35

BRAKE HOSE GUIDE

47113047000

Unavailable

97

SWINGARM REP. KIT 50/65 SX

45204230010

Unavailable

98

CHAIN GUARD KIT 2016

46304066010

Unavailable

99

CHAIN GUIDE KIT REAR 2016

46307066010

Unavailable
