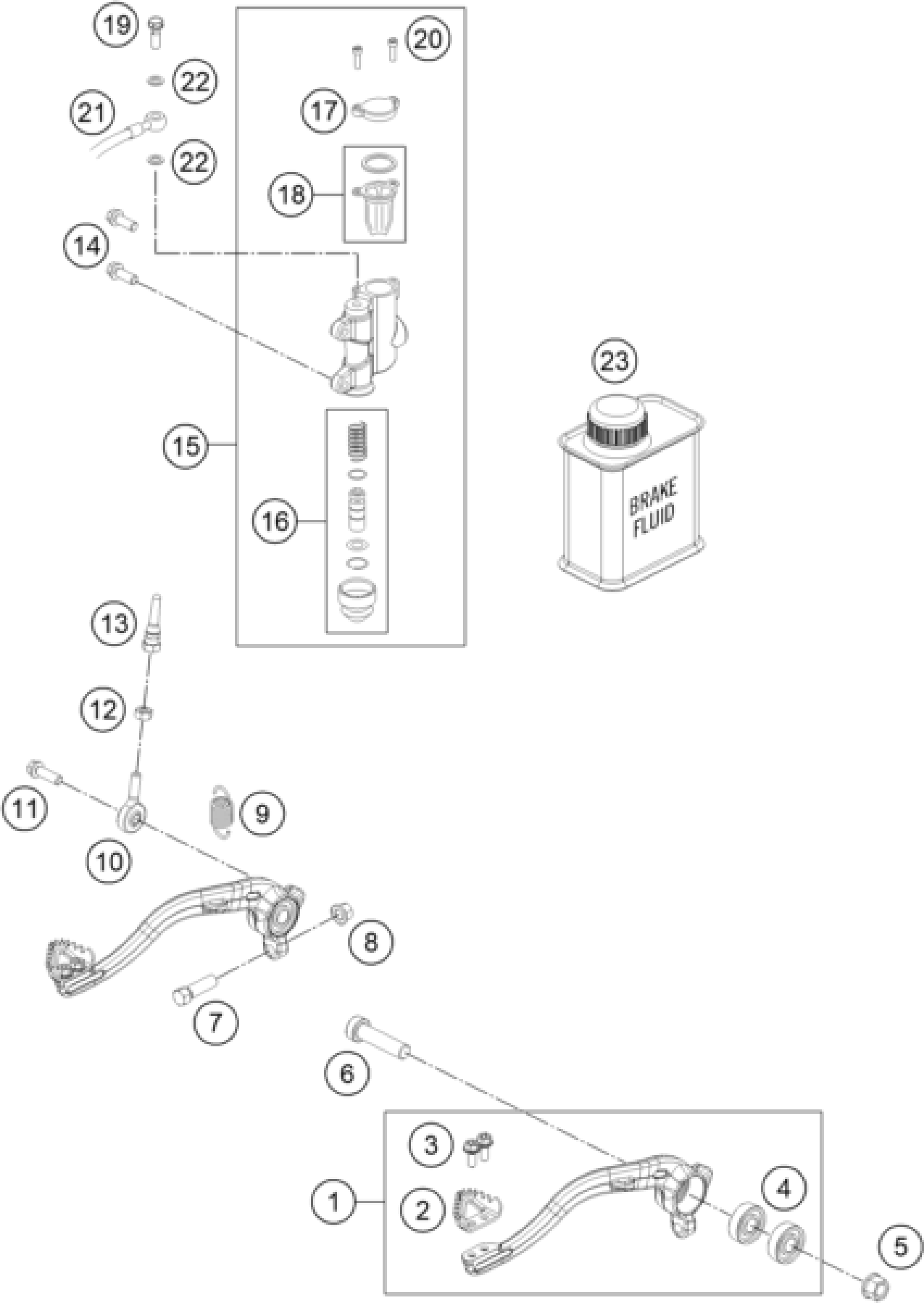

KTM 65 SX 2016 REAR BRAKE CONTROL Diagram

#

Description
Price

1

FOOT BRAKE LEVER 65SX CPL.

46213050044

Unavailable

2

STEP PLATE FOR BRAKE LEVER

54813051000

Unavailable

3

HH collar screw M5x12 TX30

0025050126

Unavailable

4

deep groove ball bearing SKF 6

0625060002

Unavailable

5

COLLAR NUT M10 WS=13

54630044000

Unavailable

6

AH-COLLAR SCREW M10X40 ISA45

0032100406S

Unavailable

7

SPECIAL SCREW M8X26 WS=10

59001037000

Unavailable

8

flanged nut M8 WS10

46030045000

Unavailable

9

RETURN SPRING FOR BRAKE LEVER

54603062100

Unavailable

10

Heim joint KA6 INNOX

46213055000

Unavailable

11

HH collar screw M6x20 TX30

0025060206

Unavailable

12

Hex. nut DIN 934 M6

0934060003

Unavailable

13

PUSH ROD

46213056000

Unavailable

14

HH collar screw M6x16 TX30

0025060166

Unavailable

15

FOOT BRAKE CYL. REAR CPL. D=12

4701306030001S

Unavailable

16

Rep.set piston, rear D=12 2004

47013061100

Unavailable

17

CYLINDER COVER REAR 85 SX 03

47013062000

Unavailable

18

GASKET CYLINDER COVER REAR 03

47013063000

Unavailable

19

Hollow screw, brake cylinder 0

47013025000

Unavailable

20

AH.SCREW DIN0912-M 4X10

0912040103

Unavailable

21

BRAKE HOSE REAR 65 SX 09

46213070000

Unavailable

22

O-RING 8,00X1,00 FORMULA

0770080019

Unavailable

23

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
