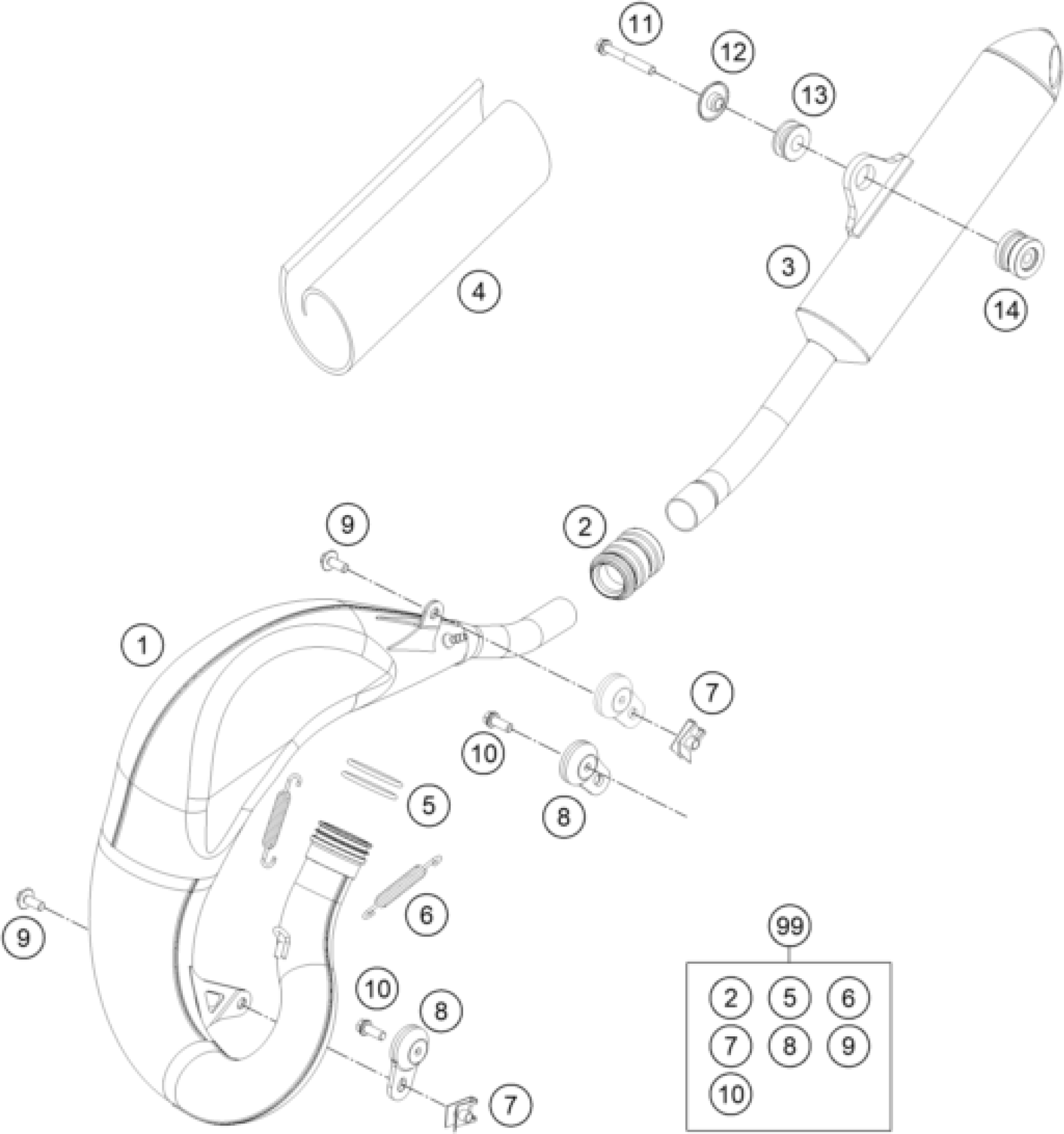

KTM 65 SX 2016 EXHAUST SYSTEM Diagram

#

Description
Price

2

RUBBER SLEEVE D=21MM/23MM '93

54605057000

Unavailable

3

SILENCER 65 SX

46305079000

Unavailable

4

ROCKWOOL PREFOMED 50 2002

45105079056

Unavailable

5

O-ring 35x3 Viton 70

0770350030

Unavailable

6

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

7

clip nut M6

54603048100

Unavailable

1

EXHAUST PIPE CPL.

46305007000

Unavailable

8

Silent block for exhaust pipe

50305012000

Unavailable

9

HH collar screw M6x15 TX30

0024060156

Unavailable

10

HH collar screw M6x16 TX30

0025060166

Unavailable

11

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

12

BUSHING 7.5X12X28X7.6

46205169000

Unavailable

13

DAMP. COMPON. BLACK

77205068000

Unavailable

14

BUSHING 7.5X12X28X23.6

46205069100

Unavailable

99

EXHAUST HARDWARE KIT MINI

00050000812

Unavailable
