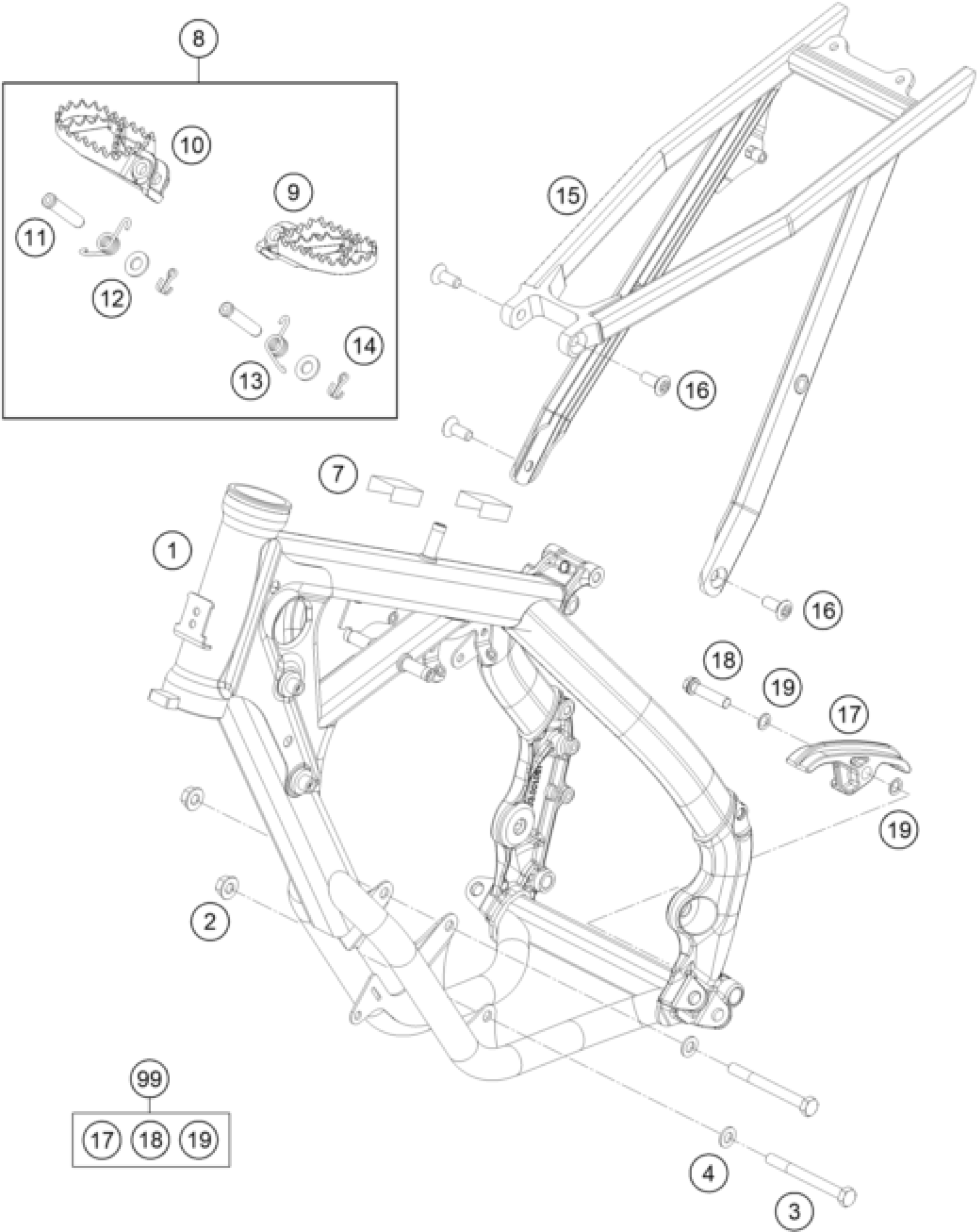

KTM 65 SX 2015 FRAME Diagram
#
Description
Price
1
FRAME ''462O3'' ANTHRAZIT
46203001300BE
Unavailable
2
Hex. nut DIN EN 1661 M8 WS13
06923080003
Unavailable
3
HH SCREW DIN931 M8X80 SS
0931080805S
Unavailable
4
washer DIN 125 A -8.4
0125080003
Unavailable
7
ADH. FOIL TRANSP. 80X80 MM 04
50307012000
Unavailable
8
FOOTREST CPL. 14
47103040033
Unavailable
9
FOOTREST L/S
47103040000
Unavailable
10
FOOTREST R/S
47103041000
Unavailable
11
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
12
washer DIN 125 A 10.5
0125100003
Unavailable
13
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
14
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
15
SUB FRAME 65 SX 2009
46203002000
Unavailable
16
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
Unavailable
17
Chain sliding piece, bottom
77303053000
Unavailable
18
HH collar screw M8x35 TX40
0025080356
Unavailable
19
LOCK WASHER 8MM
36003014000
Unavailable
99
CHAIN SLIDING KIT BELOW 09-15
77303053110
Unavailable
