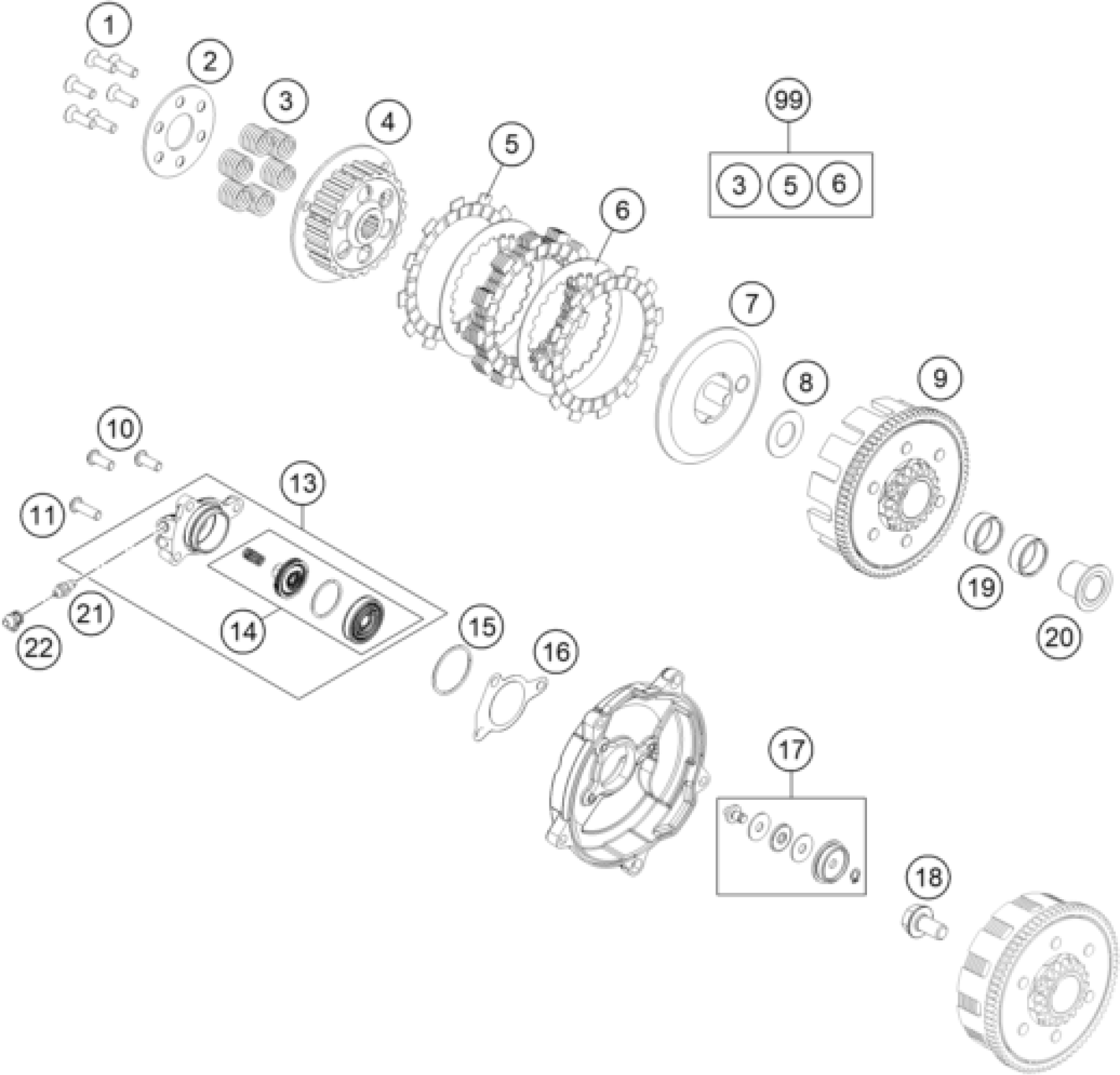

KTM 65 SX 2014 CLUTCH Diagram
#
Description
Price
14
Piston cmpl.
47132066000
Unavailable
1
Flat head screw DIN7991 M6X20
0991060202
Unavailable
2
SPRING RETAINER 25X63,5X2
46032006000
Unavailable
3
CLUTCH SPRING KIT
46232005044
Unavailable
4
CLUTCH HUB
46232002000
Unavailable
5
LINING DISK KIT
46032011044
Unavailable
6
INTERMEDIATE DISK STEEL
46032010000
Unavailable
7
CLUTCH PRESSURE CAP
46232003000
Unavailable
8
STOP DISC 17,2X32X1,5
46232012000
Unavailable
9
PRIMARY DRIVE WITH CLUTCH CAGE
46232000044
Unavailable
10
FLAT HEAD SCREW ISO7380 M6X16
0738060161
Unavailable
11
FLAT HEAD SCREW ISO7380 M6X20
0738060201
Unavailable
13
OUTPUT CYLINDER CPL.
47132061044
Unavailable
15
O-RING 31,47X1,78
0770031018
Unavailable
16
GASKET FOR SLAVE CYLINDER
59032065000
Unavailable
17
PRESSURE PIECE CPL.
46232057000
Unavailable
18
HH COLLAR SCREW M10X20
46132019000
Unavailable
19
NEEDLE BEARING K 22X26X10 A
0405222610
Unavailable
20
INNER RING WITH COLLAR
46232015000
Unavailable
99
CLUTCH KIT 65 SX 09-14
46232010010
Unavailable
21
BLEEDER SCREW M8X1
47013085000
Unavailable
22
CAP FOR BLEEDER SCREW
47013021000
Unavailable
