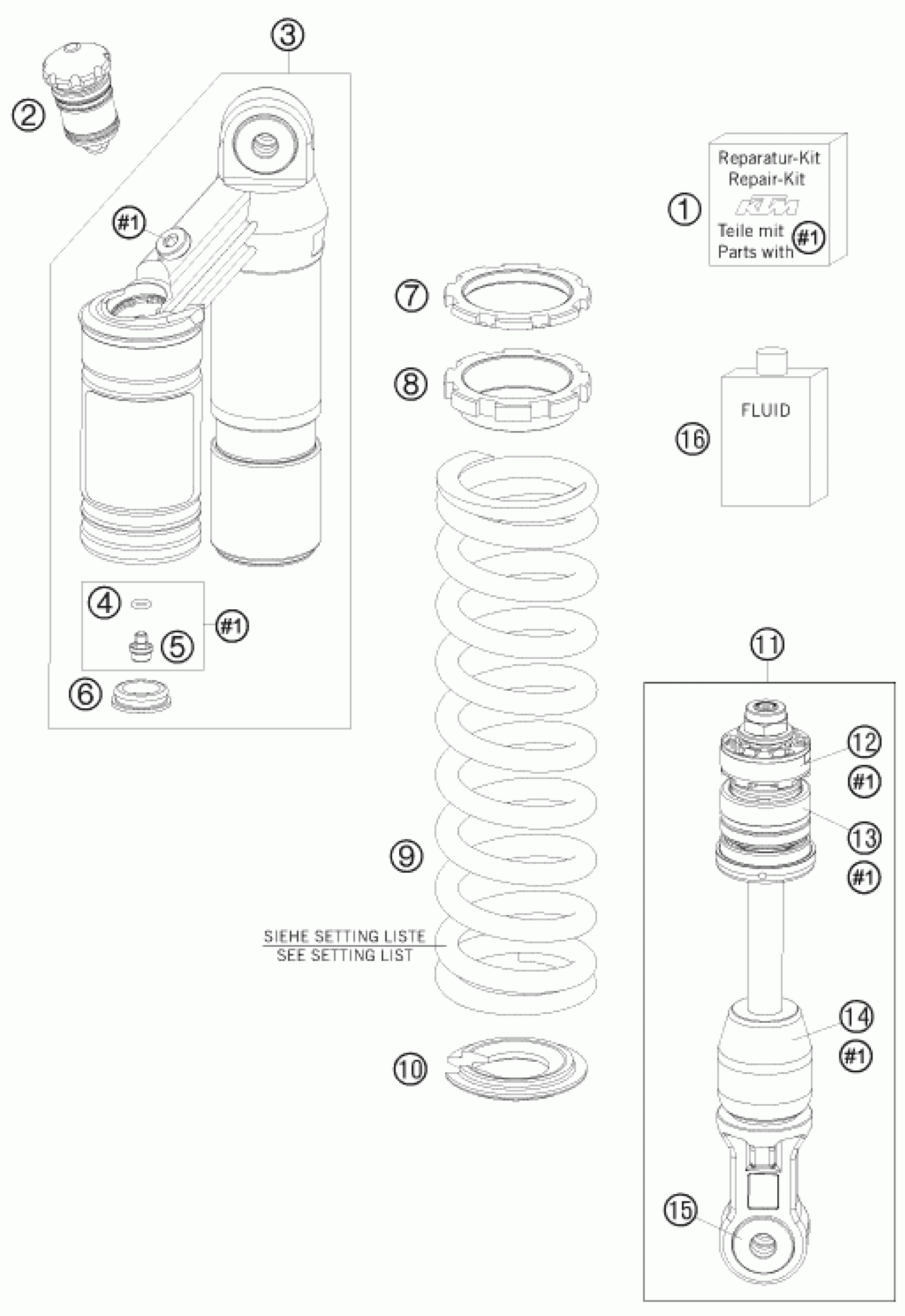

KTM 65 SX 2012 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

1

REPAIR-KIT

R308

Unavailable

6

Rubber cap do not open 22x5,5

46811208

Unavailable

7

Lock nut shock M44x1,5

36120015

Unavailable

16

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

2

CC-compre. damping controll cm

46810850S9

Unavailable

3

MONOSHOCK TOP PART CPL.

36120817S1

Unavailable

4

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

11

MONOSHOCK LOWER PART CPL.

36120781S10

Unavailable

12

Pistonring 33x35x8

36120040

Unavailable

5

HS lock screw M5x6

36120151

Unavailable

13

Sealholder 36x26,6 cpl.

36120787S

Unavailable

14

Rubber pad 13,9x38x43 black

36120799

Unavailable

15

REPAIR KIT BEARINGS 65 SX 09

R309

Unavailable

8

Adjustment nut shock M44x1,5

36120418

Unavailable

9

SPRING 40N/MM 40-220 220MM ORA

93010181S

Unavailable

9

SPRING 35N/MM 35-220 220MM ORA

93010182S

Unavailable

9

SPRING 45N/MM 45-220 220MM ORA

93010183S

Unavailable

10

Spring retainer 27x57x2

36120386

Unavailable
