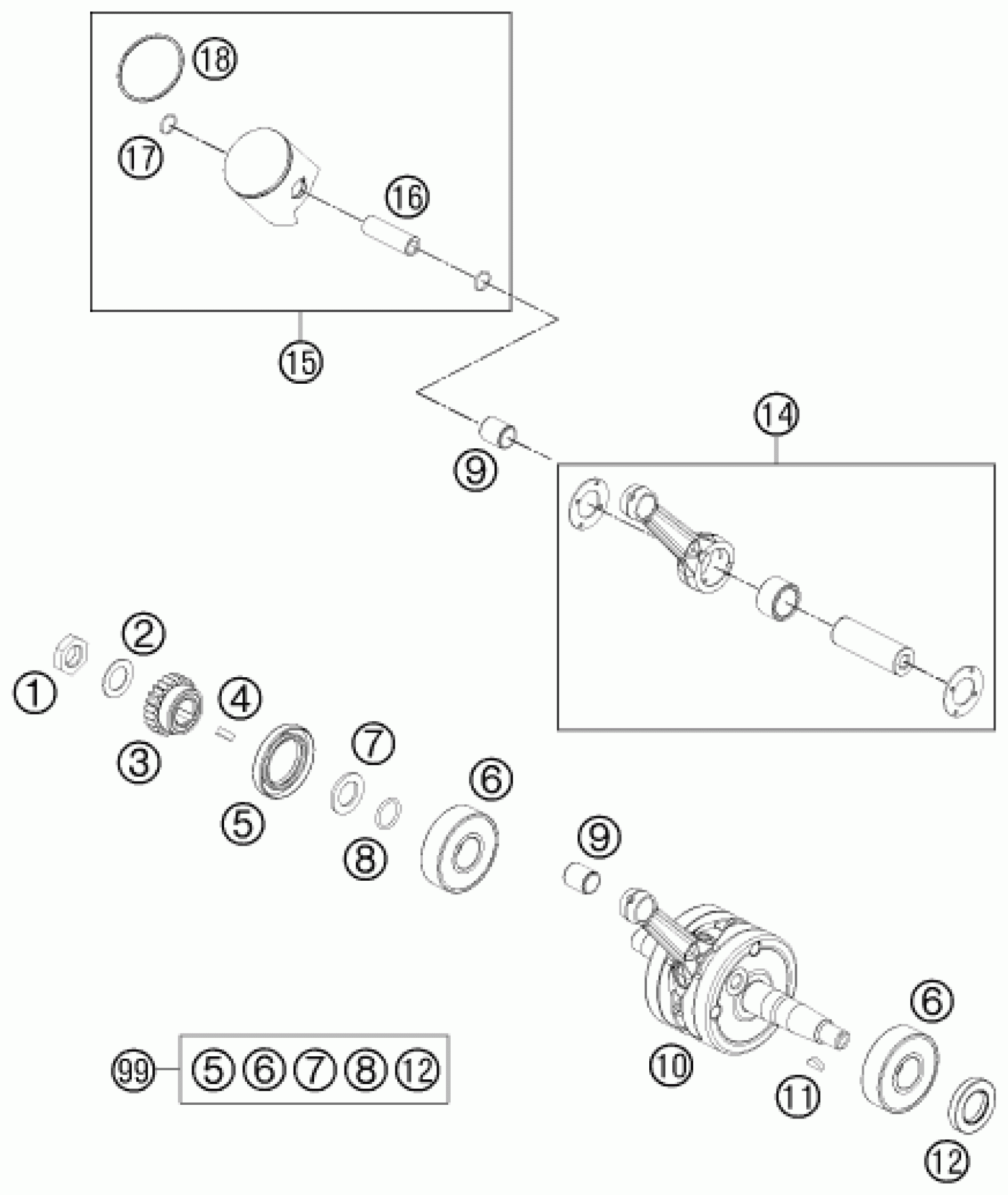

KTM 65 SX 2012 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

HH NUT 14X1,25X7 WS=22

46030029000

Unavailable

2

STOP DISK 15,2X25X1 MM

83061015000

Unavailable

3

PRIMARY PINION LOOSE

46232023023

Unavailable

4

woodruff key DIN 6888 4x5x13

0888040050

Unavailable

5

Rotary shaft lip-type seal 30x

0760304774E

Unavailable

6

GROOVED BALL BEAR.20X52X15 NTN

46030082200

Unavailable

7

SPACER WASHER - CRANKSHAFT

46230016000

Unavailable

8

O-ring 16x2 Viton 75

0770160021

Unavailable

9

NEEDLE BEAR.PISTONPIN 12X15X17

46030034000

Unavailable

10

CRANKSHAFT CPL.

46230018000

Unavailable

11

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

12

SEAL SHAFT RING 20X35X6 BTSL

47030076100

Unavailable

14

CONNECT. ROD REPAIR SET

46230015000

Unavailable

15

PISTON CPL. I

46230007000 I

Unavailable

15

PISTON CPL. II

46230007000 II

Unavailable

16

PISTON PIN 12X38

46030033000

Unavailable

17

CIRCLIP 09

45230074000

Unavailable

18

PISTON RING 45MM 65CCM

46030030500

Unavailable

99

CRANKSHAFT REP. KIT 09-15

00050002306

Unavailable
