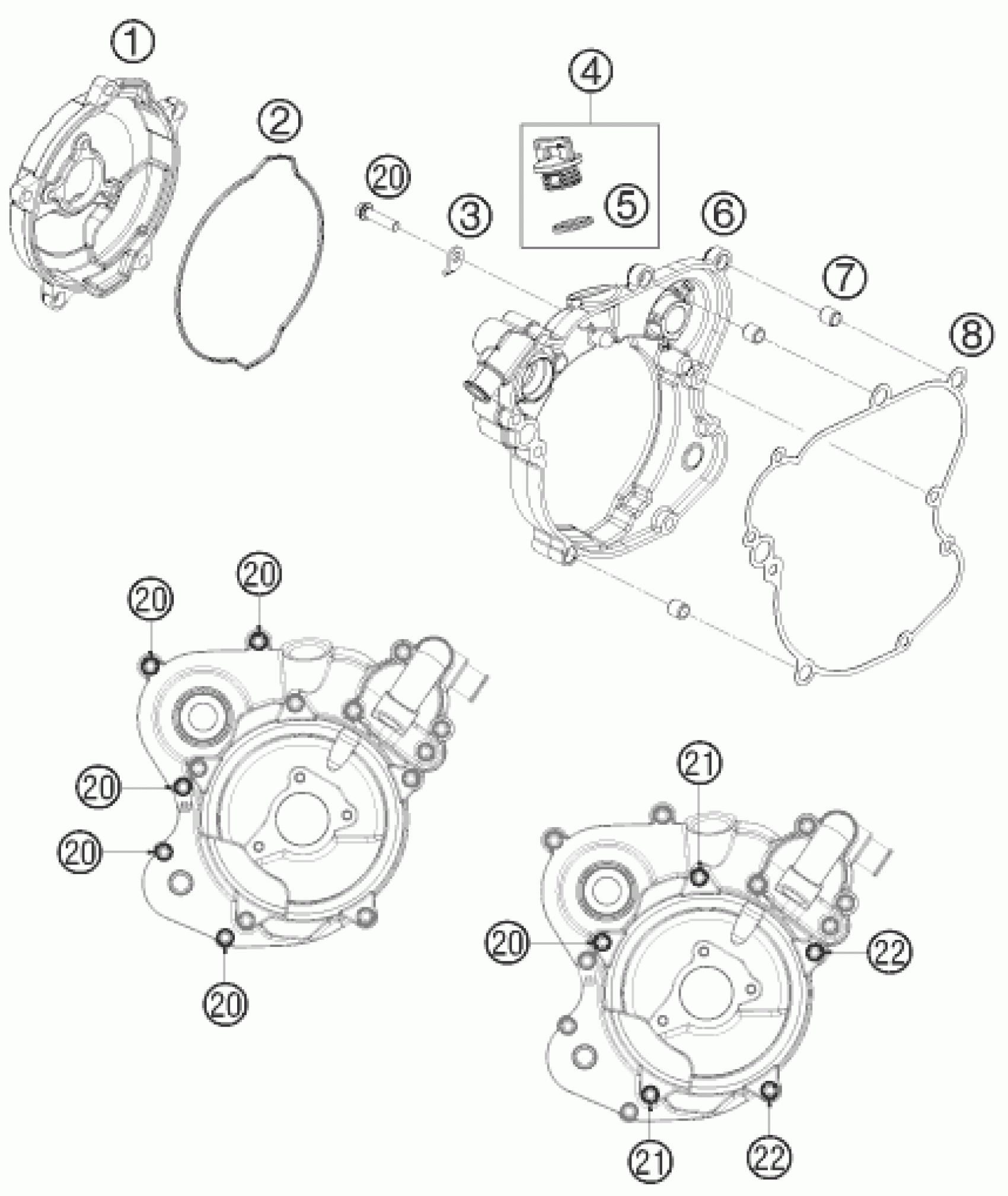

KTM 65 SX 2011 CLUTCH COVER Diagram

#

Description

Price

1

CLUTCH COVER OUTSIDE

4623002600015

Unavailable

2

GASKET - CLUTCH OUTER COVER

46230027000

Unavailable

3

RETAINING PLATE

51005074000

Unavailable

4

oil plug cpl. M24x3

58030020100

Unavailable

5

O-RING 19,00X3,00 NBR

0770191015

Unavailable

6

INNER CLUTCH COVER

46230001100

Unavailable

7

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

8

GASKET - CLUTCH INNER COVER

46230025100

Unavailable

20

HH collar screw M6x25 TX30

0025060256

Unavailable

21

HH collar screw M6x20 TX30

0025060206

Unavailable

22

HH collar screw M6x55 TX30

0025060556

Unavailable
