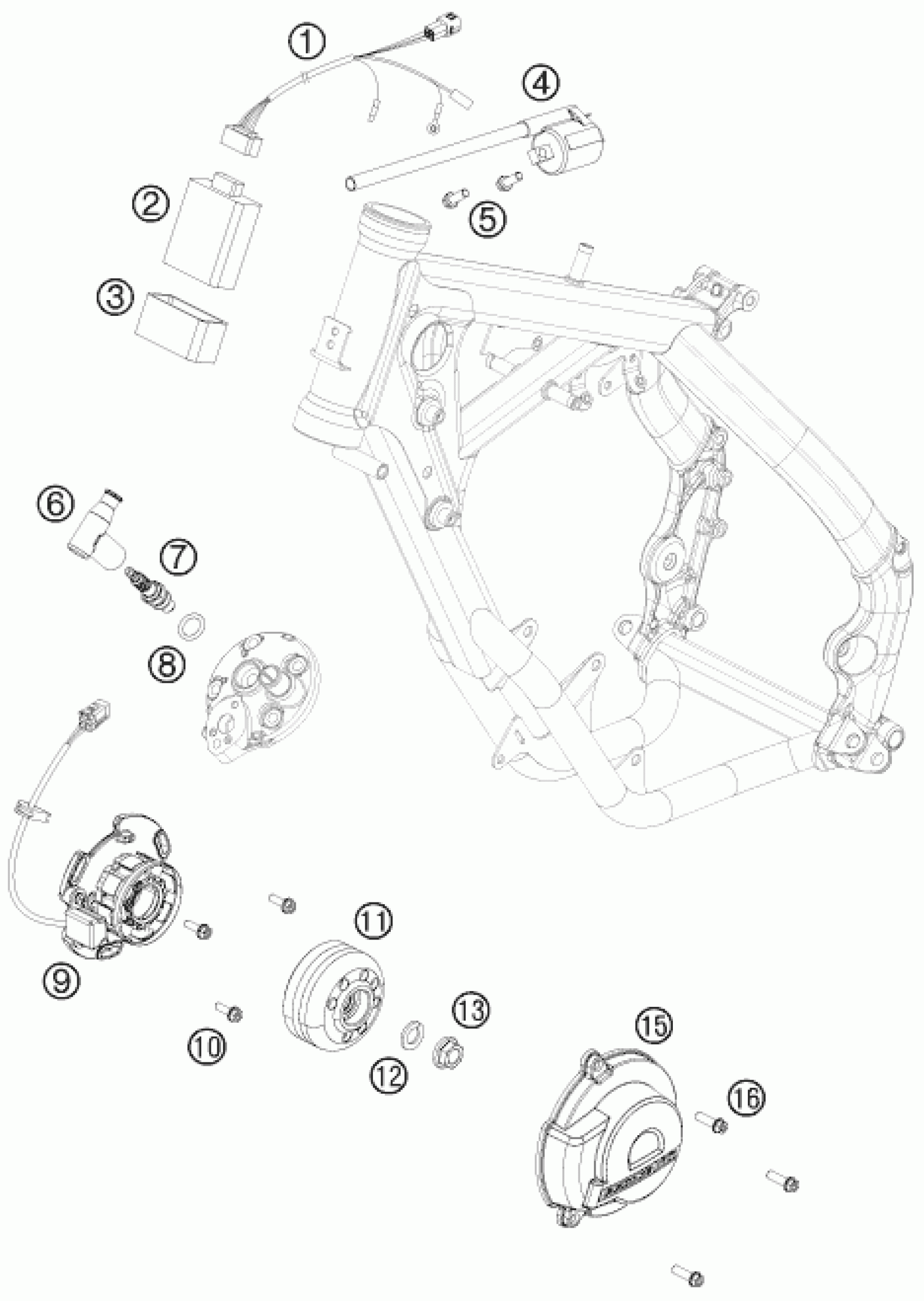

KTM 65 SX 2010 IGNITION SYSTEM Diagram

#

Description

Price

1

WIRING HARNESS CDI 65 SX 2009

46239095000

Unavailable

2

CDI 65 SX 2009

46239031000

Unavailable

3

RUBBER BR. DIGI.BOX 65SX 2003

46139030000

Unavailable

4

IGNITIONCOIL ''IG5128''

59039006000

Unavailable

5

HH collar screw M6x16 TX30

0025060166

Unavailable

6

SPARK PLUG CONNECTOR

46239090000

Unavailable

7

SPARK PLUG

45239093000

Unavailable

8

O-RING 12,00X3,0 VITON 75

0770012030

Unavailable

9

STATOR

46239004000

Unavailable

10

HH collar screw M5x16 TX30

0025050166

Unavailable

11

ROTOR

46239005000

Unavailable

12

LOCKING RING VSK 12

50230029012

Unavailable

13

COLLAR NUT M12X1 R/S

49030021000

Unavailable

15

IGNITION COVER

46230002100

Unavailable

16

HH collar screw M6x20 TX30

0025060206

Unavailable
