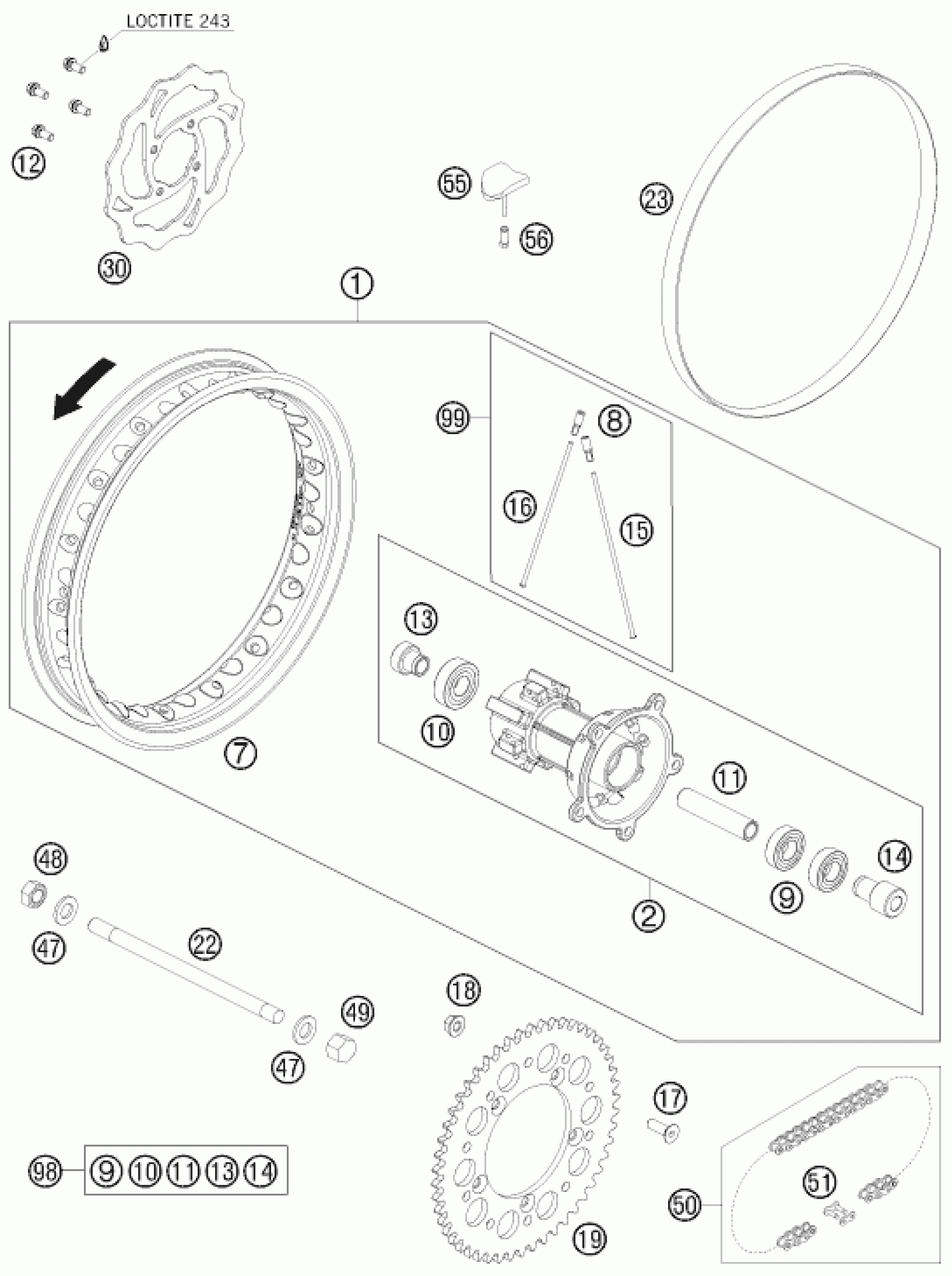

KTM 65 SX 2009 REAR WHEEL Diagram

#

Description
Price

11

BEAR.SPACER TUBE REAR SX 60/65

46010011000

Unavailable

1

REAR WHEEL-SP 65 SX 09

46210001044

Unavailable

2

REAR WHEEL HUB CPL.60/65 2000

46010010144

Unavailable

7

RIM REAR 12''X1,6 BLACK 200

4621007000030

Unavailable

8

SPOKE NIPPEL M3,5 2001

46009072100

Unavailable

9

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

Unavailable

10

GR.BALL BEAR. 6203-2RSHC3HMTF

0625062032

Unavailable

12

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

13

SPACER BUSH R/S SX 60/65 2000

46010013000

Unavailable

14

SPACER BUSH L/S SX 60/65 2000

46010014000

Unavailable

15

SPOKE 3X136 C. 150°

46210071136

Unavailable

16

SPOKE 3X129 C. 161°

46210071129

Unavailable

17

FLAT HEAD SCREW DIN7991-M 8X25

0991080253

Unavailable

18

Self locking nut M8 10.9

54310086200

Unavailable

19

REAR SPROCKET 46-T

46010051046

Unavailable

19

REAR SPROCKET 48-T

46010051048

Unavailable

19

REAR SPROCKET 50-T

46010051050

Unavailable

22

AXLE REAR 213MM M12X1

46010085100

Unavailable

23

Rim band 12"

45109073100

Unavailable

30

BRAKE DISC REAR 65 SX 09

46210060000

Unavailable

47

WASHER 20X12,2X2

45010081062

Unavailable

49

NUT DIN917-M12X1

0917120103

Unavailable

50

Chain 1/2X1/4''

46110165112

Unavailable

51

CONNECTING LINK 1/2X1/4''

46110166000

Unavailable

55

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

56

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

48

HEXAGON NUT 12X1 WS19

45010081061

Unavailable

99

SPOKE KIT REAR ''12''

00050000911

Unavailable

98

REAR WHEEL REP. KIT 65 SX

46210015000

Unavailable
