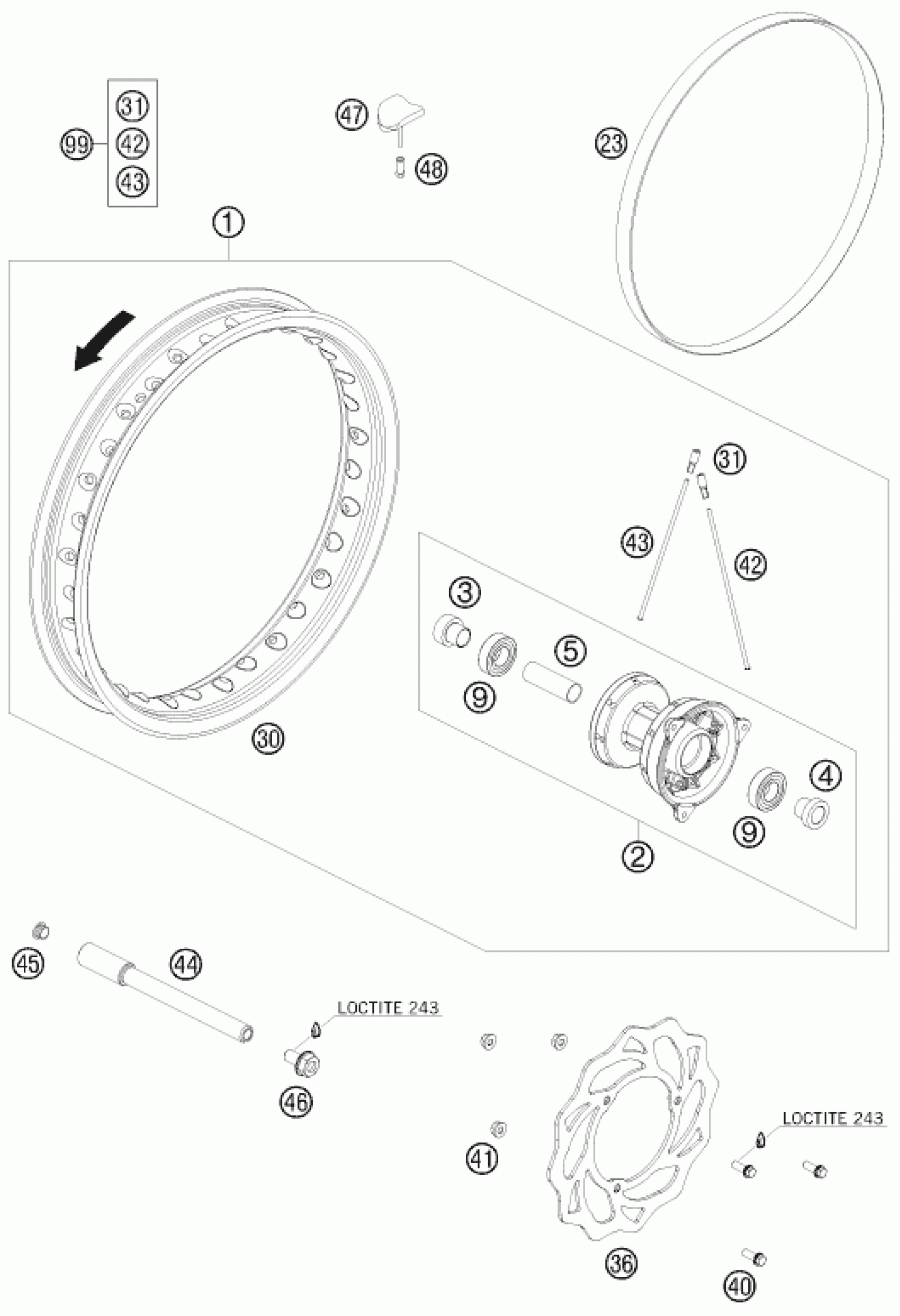

KTM 65 SX 2009 FRONT WHEEL Diagram

#

Description
Price

5

BEARING SPACER TUBE

46009011100

Unavailable

1

FRONT WHEEL-SP 65 SX 09

46209001044

Unavailable

2

FR.WHEEL HUB CPL. SILVER 2006

46109010144

Unavailable

3

SPACER BUSH L/S 65SX 04

46009014000

Unavailable

4

SPACER BUSH R/S 65SX 04

46009013000

Unavailable

9

GR.BALL BEAR. 6003-2RSH/C3HMTF

0625060037

Unavailable

23

Tube protector 85 SX 14"

47010073000

Unavailable

30

RIM FRONT 14''X1,6 BLACK 200

4620907000030

Unavailable

31

SPOKE NIPPEL M3,5 2001

46009072100

Unavailable

36

BRAKE DISC FRONT 65 SX 09

46209060000

Unavailable

40

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

41

Self locking nut M6 - 10

56509064100

Unavailable

42

SPOKE M3,5X145MM

46009071000

Unavailable

43

SPOKE M3,5X149MM

46009171000

Unavailable

44

AXLE FRONT 65SX 2002

46109081000

Unavailable

45

PLUG SFL13

55009086000

Unavailable

46

HH COLLAR SCREW M10X20 WS=17

49032011000

Unavailable

47

Rim lock 2004

45110090000

Unavailable

48

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

99

SPOKE KIT FRONT ''14''

00050000912

Unavailable
