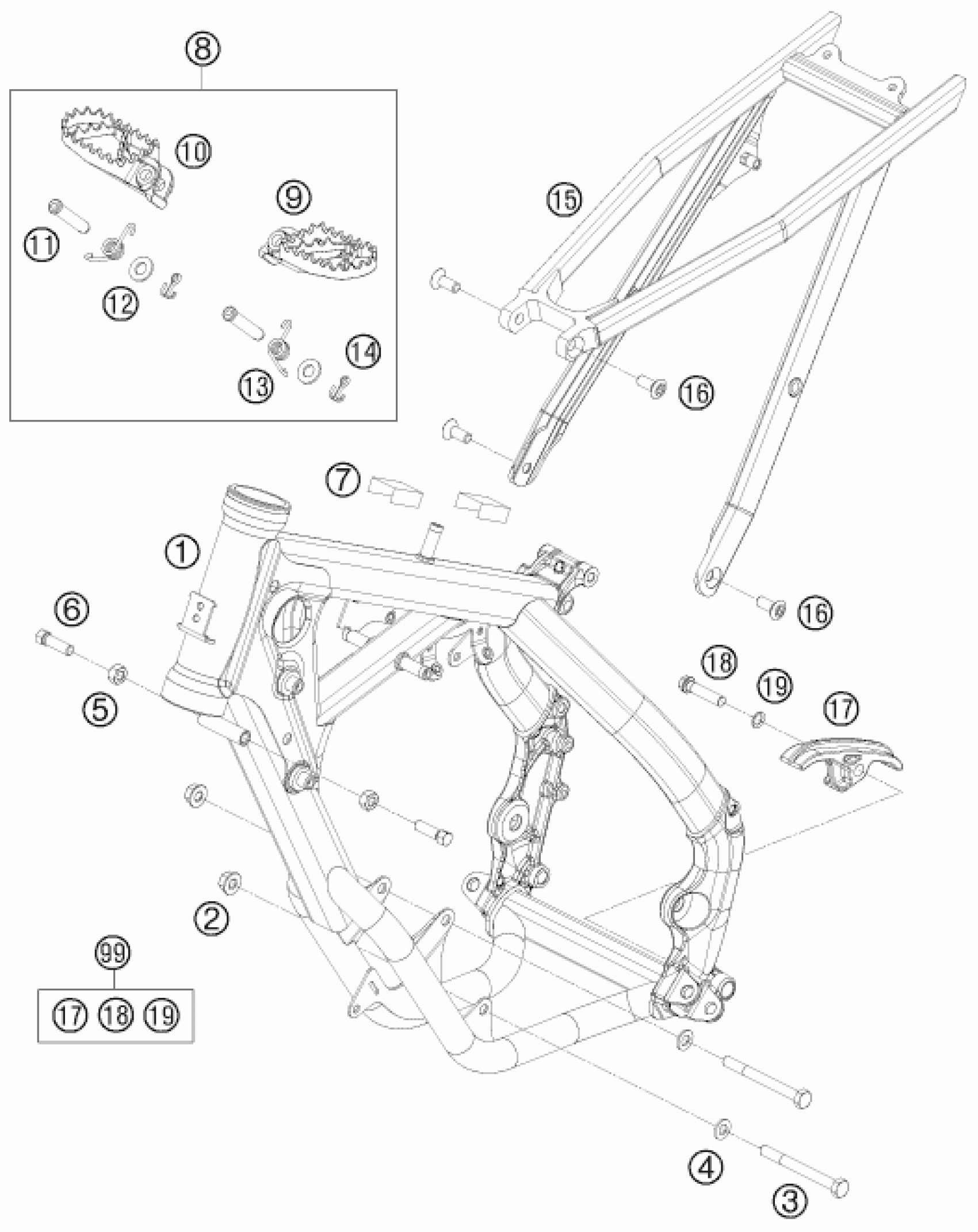

KTM 65 SX 2009 FRAME Diagram
#
Description
Price
19
LOCK WASHER 8MM
36003014000
Unavailable
1
FRAME 65 SX ''MD09''
4620300104430
Unavailable
2
Self locking nut M8 10.9
54310086200
Unavailable
3
HH SCREW DIN 931 M8X80 10.9
0931080805
Unavailable
4
washer DIN 125 A -8.4
0125080003
Unavailable
5
Hexagon nut DIN934 M8
0934080003
Unavailable
6
SPECIAL SCREW M8X26 WS=10
59001037000
Unavailable
8
FOOTPEG L.+R. CPL. 85 SX 03
4700304003390
Unavailable
9
FOOT PED L/S EXC SILVER 00
59003040050
Unavailable
10
FOOT PED R/S EXC SILVER 2000
59003041050
Unavailable
11
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
12
washer DIN 125 A 10.5
0125100003
Unavailable
13
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
14
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
15
SUB FRAME 65 SX 2009
46203002000
Unavailable
16
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
Unavailable
17
Chain sliding piece, bottom
77303053000
Unavailable
18
HH collar screw M8x35 TX40
0025080356
Unavailable
99
CHAIN SLIDING KIT BELOW 09-15
77303053110
Unavailable
7
ADH. FOIL TRANSP. 80X80 MM 04
50307012000
Unavailable
