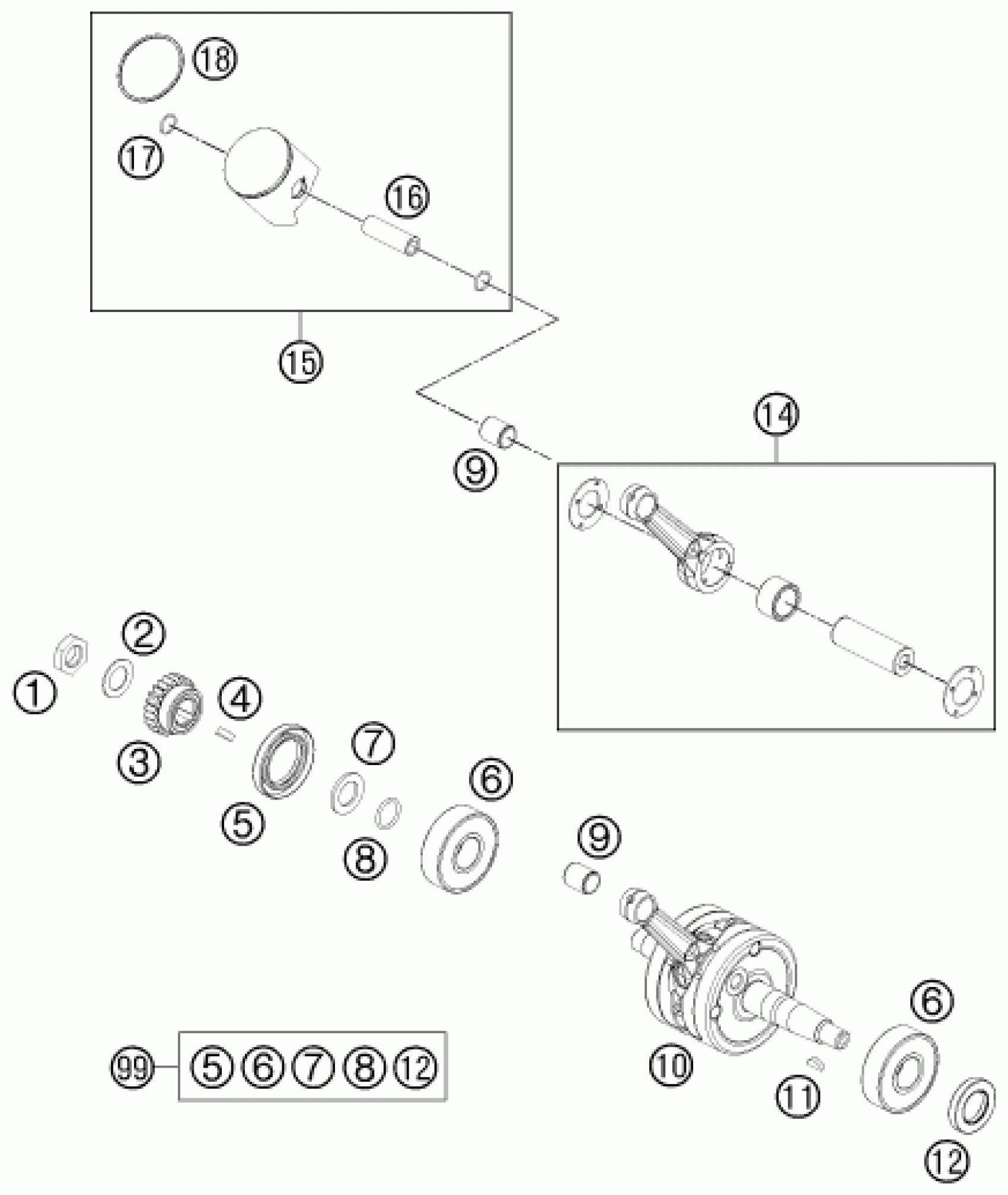

KTM 65 SX 2009 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

HH NUT 14X1,25X7 WS=22

46030029000

Unavailable

2

STOP DISK 15,2X25X1 MM

83061015000

Unavailable

3

PRIMARY PINION LOOSE

46232023023

Unavailable

8

O-ring 16x2 Viton 75

0770160021

Unavailable

9

NEEDLE BEAR.PISTONPIN 12X15X17

46030034000

Unavailable

10

CRANKSHAFT CPL.

46230018000

Unavailable

11

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

12

SEAL SHAFT RING 20X35X6 BTSL

47030076100

Unavailable

14

CONNECT. ROD REPAIR SET

46230015000

Unavailable

15

PISTON CPL. I

46230007000 I

Unavailable

15

PISTON CPL. II

46230007000 II

Unavailable

16

PISTON PIN 12X38

46030033000

Unavailable

17

CIRCLIP 09

45230074000

Unavailable

18

PISTON RING 45MM 65CCM

46030030500

Unavailable

4

woodruff key DIN 6888 4x5x13

0888040050

Unavailable

5

SH.SEAL RING 30X47X7 BSL VITON

0760304772

Unavailable

6

GROOVED BALL BEAR.20X52X15 NTN

46030082200

Unavailable

7

SPACER WASHER - CRANKSHAFT

46230016000

Unavailable

99

CRANKSHAFT REP. KIT 09-15

00050002306

Unavailable
