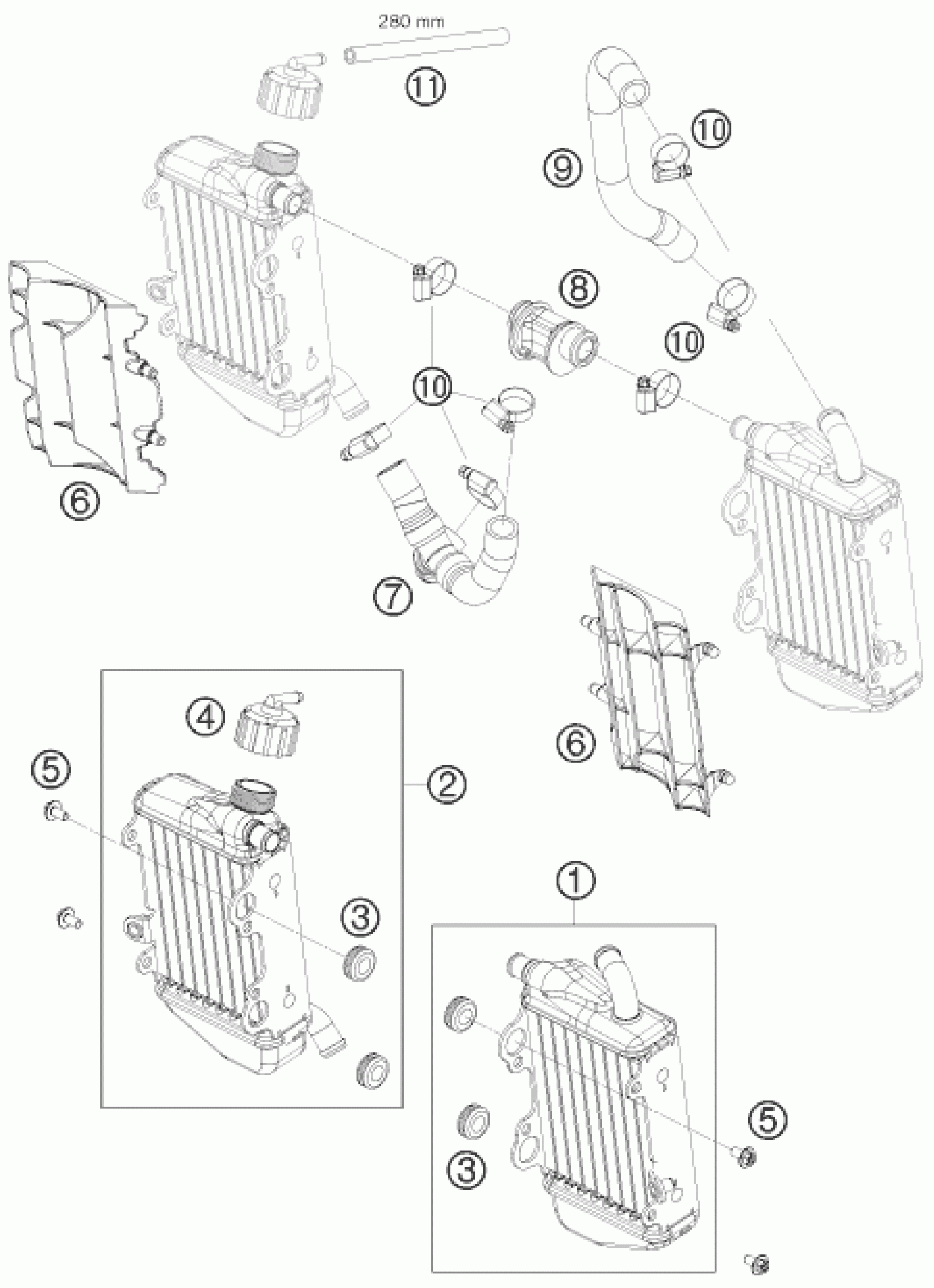

KTM 65 SX 2009 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR L/S 65 SX 2009

46235007000

Unavailable

2

RADIATOR R/S 65SX 2009

46235008000

Unavailable

3

RUBBER SLEEVE D=12MM

41001052000

Unavailable

4

RADIATOR CAP 50 LC 1,0 BAR

45135009000

Unavailable

5

COLLAR SCREW M6X12 TX

0024060123

Unavailable

6

RADIATOR PROTECTOR 65 SX 2009

46235034000

Unavailable

7

RADIATOR HOSE CPL.+Y-CONNECT.

46235025033

Unavailable

8

RADIATOR CONNECTOR TOP

46235025000

Unavailable

9

PREFORMED HOSE 65SX RAD.L/S

46235022000

Unavailable

10

HOSE CLAMP NORMA 12/22

42013037300

Unavailable

11

PVC-HOSE 7X10 PER METER

55007016001

Unavailable
